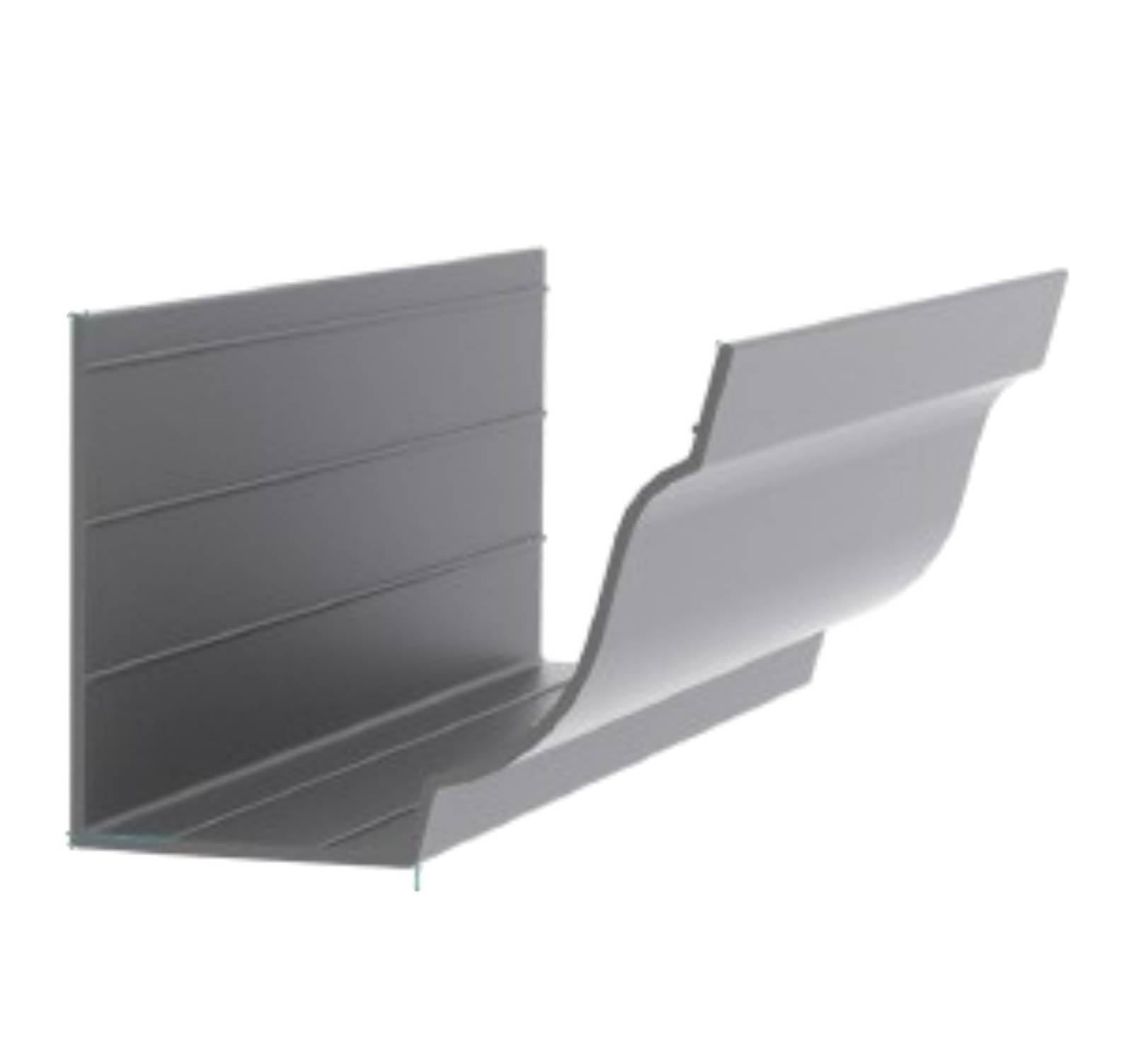

Extruded OGEE Guttering System - Aluminium Gutter

Verified by manufacturer 5 months ago

125 mm (5")

Seamless Aluminium Group Variant:

Ogee gutters designed and manufactured to provide the essential architectural features appropriate to traditionally and modernly designed buildings.

Jump to:
+44 (0) 121 765 4355 Website

Application

Extruded ogee guttering system designed and manufactured to provide the essential architectural features appropriate to traditionally and moderns designed buildings.

Can be used as a replacement for cast iron or PVC.

Compatible with common downpipes:

  • 63, 76 and 102 mm circular downpipes;
  • 76 x76 and 102 x 102 mm square downpipes;
  • 102 x 76 mm rectangular downpipes.

Description

Ogee gutters designed and manufactured to provide the essential architectural features appropriate to traditionally and modernly designed buildings.


Features and benefits:

  • Manufactured from extruded aluminium to BS EN 12020-2:2008 and BS EN 755-2:2013 Aluminium alloy 6063 to T4 temper grade.
  • Available in two standard sizes (5" or 6").
  • Mill finish or polyester powder-coated in a matt finish in six standard RAL colour options.
  • Can be used as a direct replacement for cast iron or PVC.
  • Compatible with common circular, square and rectangular downpipes.
  • Can be used on both flush and projecting eaves.
  • Non-combustible to EN 13501-1:2007 + A1:2009.
  • Life expectancy of 40 years or more.
  • Special requirements can be accommodated (length, colour, special angles, brackets etc.).

General information

Color

Silver

White

Guidance for specification option:

RAL 9016 Traffic White.

Black

Guidance for specification option:

RAL 9005 Jet or Ripple Black.

Grey

Guidance for specification option:

RAL 7015 Slate Grey or RAL 7016 Anthracite Grey.

Brown

Guidance for specification option:

Seamless Brown.

Show more

Finish

Matt

Guidance for specification option:

Powder-coated.

Mill

Powder-coated

Guidance for specification option:

Matt finish.

Gloss

Material

Aluminium

Length

3000 mm

Width

125 mm

Guidance for specification option:

5". Standard gutter section only.

150 mm

Guidance for specification option:

6". Standard gutter section only.

Height

100 mm

Guidance for specification option:

Standard gutter section height.

Warranty description

20 year

Uniclass

Pr_65_50_35_06 Aluminium eaves guttersPrimary

CAWS

R10/11 Aluminium gutters

R10/311 Aluminium gutters

Specification data - Aluminium eaves gutters

Form

Extruded to BS EN 12020-2:2008 and BS EN 755-2:2013 aluminium alloy 6063 to T4 temper grade.

Profile

Ogee.

Size (nominal width)

125 mm.

Guidance for specification option:

CA400 - 100 mm high, minimum width: 70 mm.

Gutter capacity: 2.84 L/s.

Manufacturer guidance

Gutter capacities are based on EN 12056-3:2000, assuming a

maximum distance of 50 x gutter depth, from high point to

outlet.

Longer gutters or gutters with corners exceeding 254 mm will have a reduced capacity.


Flow rate will vary according to downpipe specified; consult manufacturer's literature for details.

Thickness or gauge

2.75 mm.

Finish

Powder coating to BS EN 12206-1, matt.

Guidance for specification option:

Matt. See below for colour options.


All systems are polyester powder-coated in the manufacturer's in-house powder coating facility.

Powder coating to BS EN 12206-1, other.

Guidance for specification option:

Ripple and orange peel effects are available for powder-coated finishes; consult manufacturer for details and insert requirements.

Mill.

Colour

RAL 9016 Traffic White.

Guidance for specification option:

Polyester powder-coated finish only.

RAL 9005 Jet Black.

Guidance for specification option:

Polyester powder-coated finish only.

RAL 7015 Slate Grey.

Guidance for specification option:

Polyester powder-coated finish only.

RAL 7016 Anthracite Grey.

Guidance for specification option:

Polyester powder-coated finish only.

Seamless Brown.

Guidance for specification option:

Polyester powder-coated finish only.

RAL 9005 Ripple Black.

Guidance for specification option:

Polyester powder-coated finish only.

Silver (standard for mill finish).

Other.

Guidance for specification option:

Polyester powder-coated finish only.

More RAL colours available, see manufacturer's colour chart and insert requirements.

Film thickness (minimum)

Manufacturer's standard.

Guidance for specification option:

Polyester powder-coated only; not applicable for mill finish.

Integral accessories

Internal mitre.

External mitre.

Running outlet.

Guidance for specification option:

Specify downpipe size & shape required:

  • 63 mm diameter, circular;
  • 76 mm diameter, circular;
  • 100 mm diameter, circular (note: covers front edge);
  • 76 x76 mm, square;
  • 100 x 100 mm, square (note: covers front edge);
  • 100 x 76 mm, rectangular (fits one way only).

Internal connector.

End cap, left-hand side.

End cap, right-hand side.

Radius section.

Manufacturer guidance

Consult manufacturer's literature for dimensions etc.

See also Brackets below.

Brackets

Standard fascia brackets.

Rafter brackets.

Guidance for specification option:

Side or top rafter bracket.

Rise & fall brackets.

Fire rating (to BS EN 13501)

Non-combustible to EN 13501-1:2007 + A1:2009.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

Ireland

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

Colour Chart

Colour Chart

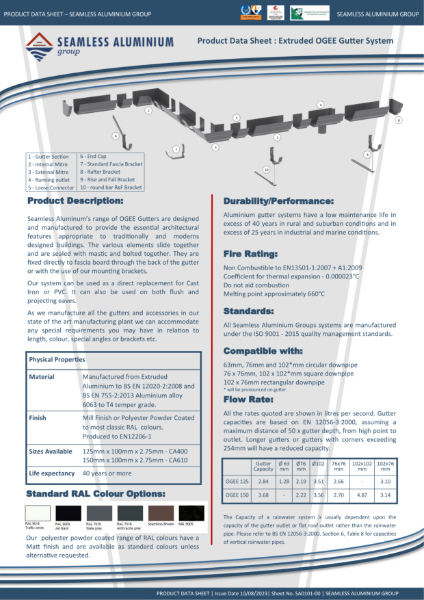

Extruded OGEE guttering system Data sheet
