F900 HDPE Channel Drainage
Verified by manufacturer 9 months ago
CD F10-210G-18P
CD F10-210G-18P

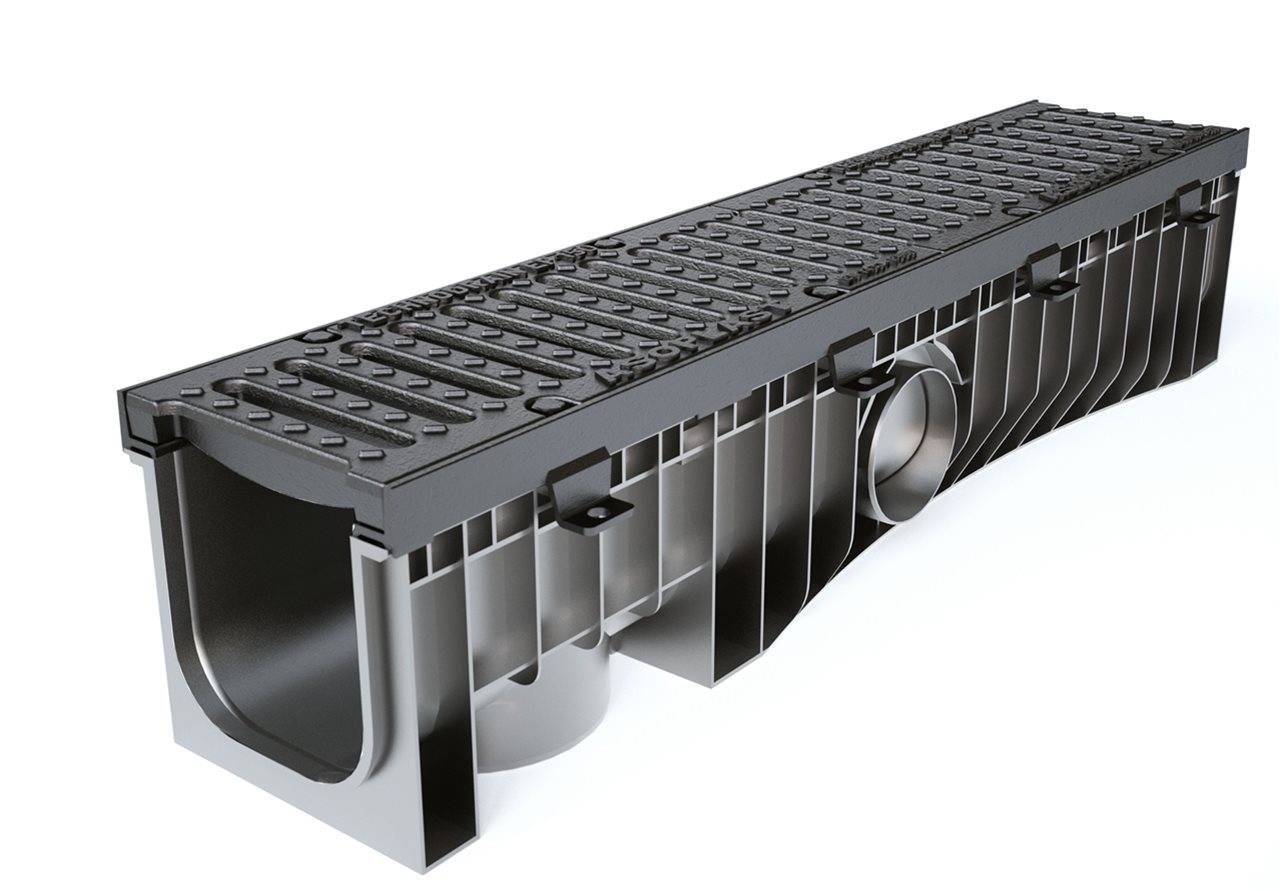

High density polyethelene (HDPE), heavy-duty linear drainage channel.
Application
Heavy-duty drainage channel that can be used in a wide variety of environments across urban, commercial and industrial sectors and civil infrastructure. Suitable for airports and runways.
Description
Heavy-duty drainage channel with 4 mm thick galvanized steel edge and ductile iron gratings.
Features and benefits:
- Lightweight.
- Locking gratings (four M8 bolts per grating).
- Resistant to a wide range of acids, salts and hydrocarbons.
- Various widths and depths available.
General information
Color | Black |
Material | High density polyethylene (HDPE) Iron |
Shape | Rectangle |
Length | 1000 mm |
Uniclass | |
CAWS | Q10/35 Drainage channel systems with gratings Q10/180 Drainage channel systems with gratings |
Specification data - Drainage channels with gratings
Standard | Spheroidal graphite iron grade EN-GJS-500-7 to BS EN 1433:2011. |
Material | High density polyethelene (HDPE). |
Gratings | |
Material | Ductile iron. |
Form | Slotted, 90 x 18 mm slot size, two 500 mm lengths. |
Load class (minimum) | F900 (90T). |
Channel unit dimensions | |
Width (nominal) | 158 mm.Guidance for specification option: 100 mm internal width. |
Depth (nominal) | 210 mm.Guidance for specification option: 150 mm internal depth. |
Length | 1000 mm. |
OutletDiameter | Two 110 mm side outlets, one 110 mm vertical outlet. |
Drainage capacity | 8.25 L/s. Guidance for specification option: 372 cm² waterway area. |
Weight | 21.7 kg. |
Sustainability data
Contains Red List materials | No |
Literature
HPDE Linear Channel Drainage - Technodrain
