Faced Fire R190 [60 minutes] - Lintels
Verified by manufacturer 3 months ago
Fire-Spec Lintels
Fire-Spec Lintels

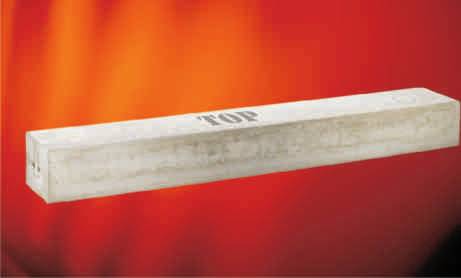

Pre-stressed class C fair faced finish 60 minutes fire rated lintels.
Application
For use in 190 mm wide walls and partitions where 60 minutes fire rating is required.
Description
Faced Fire-Spec Lintels have a class C fair faced finish and are available with 60, 90 or 120 minutes fire rating, dependent upon the section width. Other concrete sections can be made with a fire resistance equal to or greater than our standard range and our technical team with their special knowledge of concrete can advise you on which sections would achieve a specific fire resistance and strength rating and offer a design solution should this not be detailed in our load span tables.
Features and benefits:
- Pre-stressed lintels ensuring optimum performance with enhanced fire resistance and a smooth, consistent colour finish.
- Design complies with EN 1992-1-2.
- Materials comply with BS EN 206 and BS 8500. The pre-stressing wire complies with BS 5896.
- All fire rated lintels produced by Naylor Lintels comply with EN 1992-1-2.
General information
Color | Grey |
Finish | Smooth Guidance for specification option: Smooth, consistent colour finish. Other Guidance for specification option: Fair faced - Type C. |
Material | Concrete |
Shape | Rectangle |
Length | 600 mm 900 mm 1200 mm 1500 mm 1800 mm |
Width | 190 mm |
Height | 215 mm |
Warranty description | 50 year Guidance for specification option: design life. |
Uniclass | |
CAWS | F30/745 Prestressed concrete lintels |
Product range |
Specification data - Prestressed concrete lintels
Standard | To BS EN 845-2. |
Types | Single. |
Dimensions | |
Length | 600 mm.900 mm.1200 mm.1500 mm.1800 mm.2100 mm.2400 mm.2700 mm.3000 mm.3300 mm.3600 mm.Guidance for specification option: Longer lengths available on request - up to 4800 mm. |
Cross section | 190 x 215 mm. |
Characteristics | |
Deflection under load | 2.15 mm.Guidance for specification option: Deflection at 1/3 of load capacity. |
Freeze/ thaw | Resistant. |
Resistance to fire | 60 minutes. |
Thermal conductivity | 1.52 W/m.K.Guidance for specification option: Thermal conductivity λ 10,dry, mat, to EN 1745. |
Water absorption | 1.15 Cw.s. |
Surface finish | Class C fair faced. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.19 kg CO₂ eq/kg Self declared Manufacturer guidanceRaw materials are locally and responsibly sourced. |
Recyclability | Manufacturer guidanceAt the end of life, concrete can be recycled. Crushed concrete can be used as aggregates in new concrete or as sub-base and fill. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 6 |
 IFC | - | 5 |
