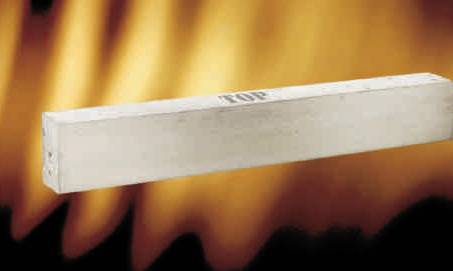

Fair faced High-Spec Lintels
Pre-stressed lintels ensuring optimum performance and 30 minutes fire rating as standard, with a smooth, consistent colour finish.
For use in 100 mm wide walls and partitions.
All Hi-Spec lintels are pre-stressed to ensure optimum performance and come with 30 minutes fire rating as standard. Hi-Spec lintels are available in 14 different sections sizes, with lengths up to 4800 mm on certain sections sizes. Due to additives and concrete strength, these units are suitable for use below ground.
Features and benefits:
Color | Grey |
Finish | Smooth Guidance for specification option: Smooth, consistent colour finish. |
Material | Concrete |
Shape | Square |
Length | 600 mm 900 mm 1200 mm 1500 mm 1800 mm |
Width | 100 mm |
Height | 100 mm |
Warranty description | 50 year Guidance for specification option: design life. |
Uniclass | |
CAWS | F30/745 Prestressed concrete lintels |
Product range |
Standard | To BS EN 845-2. |
Types | Single. |
Dimensions | |
Length | 600 mm.900 mm.1200 mm.1500 mm.1800 mm.2100 mm.2400 mm.2700 mm.3000 mm. |
Cross section | 100 x 100 mm. |
Characteristics | |
Deflection under load | 4.02 mm. |
Freeze/ thaw | Resistant. |
Resistance to fire | 30 minutes. |
Thermal conductivity | 1.52 W/m.K.Guidance for specification option: Thermal conductivity λ 10,dry, mat, to EN 1745. |
Water absorption | 1.15 Cw.s. |
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.19 kg CO₂ eq/kg Self declared Manufacturer guidanceRaw materials are locally and responsibly sourced. |
Recyclability | Manufacturer guidanceAt the end of life, concrete can be recycled. Crushed concrete can be used as aggregates in new concrete or as sub-base and fill. |
