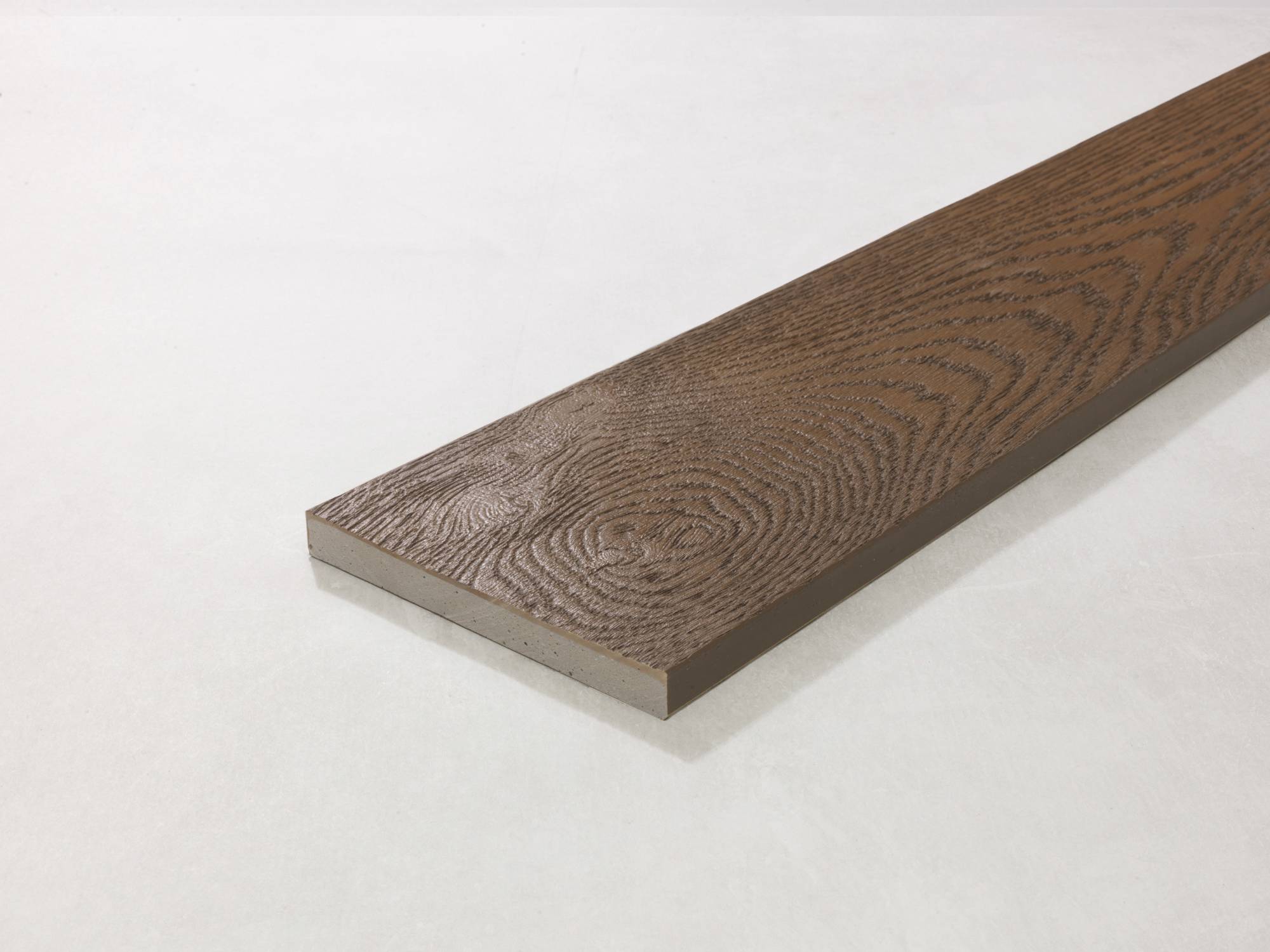

Composite decking fascia boards.

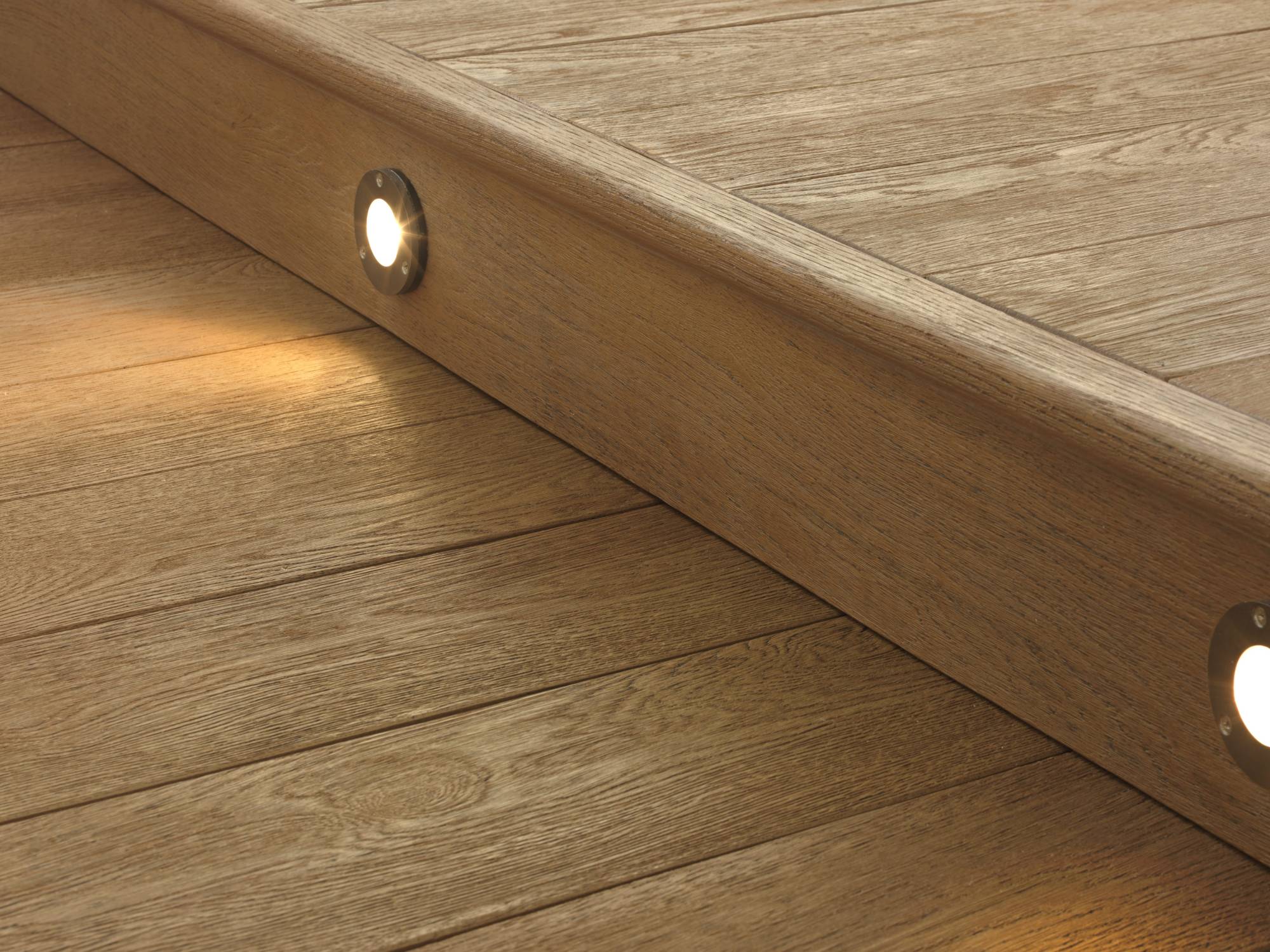

The fascia boards are used around the perimeter of a decking area, under the edging profiles, to cover the subframe and to add a finishing touch. They are also used on their own as cladding, either with the boards butted together as a flat finish or with the boards overlapping each other as a shiplap effect. Due to the flexibility of the fascia, it will fit the contours on almost any project.
Installation:
When used on a decking installation the Fascia boards need to be fully supported by the perimeter joist, fixed at 200–300 mm centres with two Durafix fixings. When used on a cladding installation the fascia boards need to be supported by battens at 300 mm centres, again fixed with two Durafix fixings where it crosses the batten.
The fascia collection discreetly works with your choice of Millboard decking and edging, ensuring the final look is seamless and the subframe is hidden.
Available in eleven colours, the structural core of Millboard fascia is a blend of natural minerals bonded in a polymer resin, with long fibre reinforcement for mechanical strength and durability. The top surface is a textured, resilient Lastane® layer which is chemically melded to the core and hand-tinted using 2K component pigments that resist fading and UV damage.
Features and benefits:
Color | Beige Guidance for specification option: Ashwood Black Guidance for specification option: Burnt Cedar/Embered Brown Guidance for specification option: Coppered Oak Antique Oak Vintage Gold Guidance for specification option: Golden Oak Cream Guidance for specification option: Limed Oak |
Finish | Wood grain |
Material | Composite Guidance for specification option: Millboard fascia board is a polyurethane resin mineral board, moulded from real oak masters, and hand-finished |
Shape | Rectangle |
Length | 3600 mm |
Width | 146 mm |
Height | 16 mm |
Warranty description | 25 year Guidance for specification option: 25 Year Limited Structural Decking Warranty (Residential Only) Ten year Guidance for specification option: 10 Year Limited Structural Decking Warranty (anything other than residential) |
Uniclass | |
CAWS | Q55/110 Deck Q55/380 Deck boards |
Profile | Solid fascia board. |
Finished size | |
Section | 146 x 16 mm. |
Length | 3.6 m. |
Colour | Antique Oak. Brushed Basalt. Embered/ Burnt Cedar. Coppered Oak. Golden Oak. |
Surface finish | Moulded from hand selected prime oak samples. |
Fixings | Millboard Durafix® stainless steel fascia screws 4.5 x 35 mm. |
Top layer | Lastane® layer. Guidance for specification option: The top surface is a textured, resilient Lastane® layer which is chemically melded to the core and hand-tinted using 2K component pigments that resist fading and UV damage. |
Edges | Square. |
BendRadius | Maximum 1200 mm (at 20°C). |
Weight | 6.1 kg. Guidance for specification option: Per board. |
Country of material origin | United Kingdom Guidance for specification option: Material origin varies however is within UK and Europe. |
Country of product manufacture | United Kingdom |
Material | Composite Guidance for specification option: Millboard fascia board is a polyurethane resin mineral board, moulded from real oak masters, and hand-finished |
Manufacturing plant location | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 38 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
