Fastwarm® Under Carpet System

Verified by manufacturer 2 months ago

Length: 10 m/ Area: 5.0 m²

Fastwarm Underfloor Heating Variant:

FastWarm Under Carpet / Vinyl heating mat kits are industry leading heating systems that can be used to warm your floors. (When used in conjunction with FastWarm 6mm EPS and HeatPak Dual Overlay.)

Jump to:
+44 (0)1268 744479 Website

Application

  • Electric floor heating suitable for installation below carpet or vinyl.
  • Suitable for floating floor finishes.

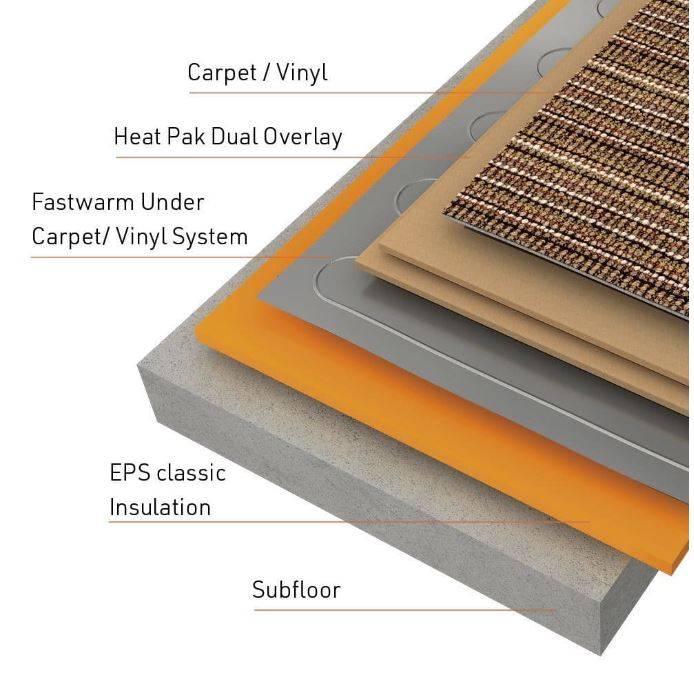

  • This system must be installed using Fastwarm® 6 mm EPS insulation board and HeatPak dual overlay.


Please note this system must not be installed in areas such as bathrooms, wetrooms or areas that may be subject to wet conditions.

Description

FastWarm Under Carpet / Vinyl heating mats comprise 2 mm fluoropolymer (Teflon) coated, dual-core resistive heating cables. The cables are encased between two layers of heat reflective aluminium foil providing even heat distribution. The cables are fixed to the mat at even spacing's, making fitting the FastWarm Under Carpet / Vinyl foil heating mat easy to install.


Features and benefits:

  • 2 mm thick cable applied within industry leading foil matting which complies to IEC 60335 standards and is also UKCA approved.
  • Combining the highest comfort level with maximum energy efficiency.
  • Single point connection.
  • No PVC used on heating element.
  • Suitable for floating floor finishes.
  • Emits Zero EMF (electromagnetic fields).
  • Flexible and durable constructed cable.
  • Constructed using a multi strand wire composite making them extremely durable and very strong.

General information

Color

Silver

Finish

Foil

Material

Aluminium

Shape

Other

Guidance for specification option:

Roll.

Length

2000 mm

3000 mm

4000 mm

5000 mm

6000 mm

Show more

Width

500 mm

Height

2 mm

Warranty description

Lifetime

Uniclass

Pr_70_60_36_28 Electric sheet underfloor heating elementsPrimary

CAWS

M50/25 Carpeting

M50/170 Carpeting

M50/130 Carpet tiling

M50/20 Sheeting

M50/150 Sheeting

T90/479 Underfloor electric heating mat

T90/478 Underfloor electric heating cables

M50/15 Carpet tiling

Specification data - Electric sheet underfloor heating elements

Standards

To BS EN 60335-1 and BS EN 60335-2-96.

Rating

140 W/m².

Area

5.0 m².

Roll length

10 m.

Roll width

500 mm.

Resistance

76 0 hms.

TotalWattage

700 W.

Voltage

230 V.

Sustainability data

Material

Aluminium
