Fastwarm® Underwood System
Verified by manufacturer 2 months ago
Length: 10 m/ Area: 5.0 m²
Length: 10 m/ Area: 5.0 m²
Underwood foil heating mat kit.
Application
- Electric floor heating mat suitable for installation below wood.
- Suitable for floating floor finishes.

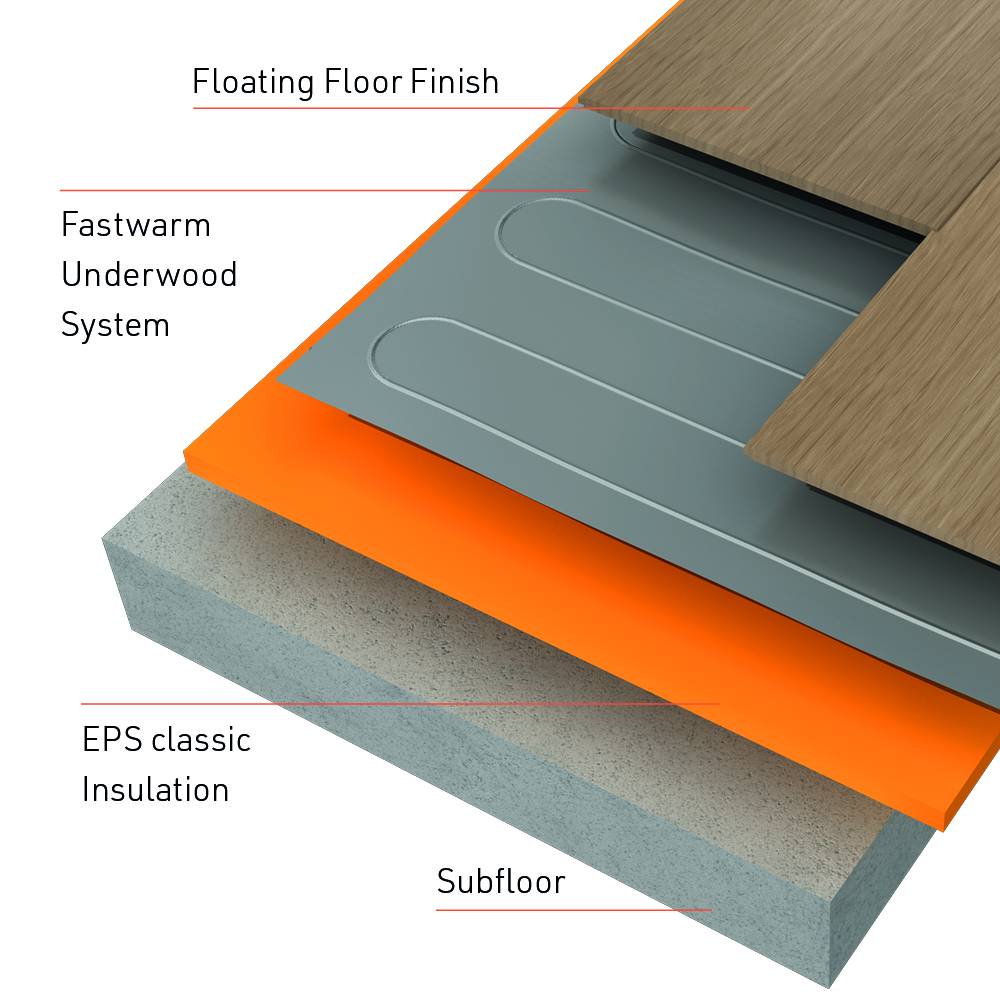

- Must be used with either XPS or Classic EPS Underlay insulation boards, please refer to their specific installation guide.
Please note this system is not suitable for use directly beneath LVT/Vinyl/Linos. When installing beneath these products Heatpak Dual Overlay must be used.
Description
FastWarm under wood 140 W heating mats comprise 2 mm fluoropolymer (Teflon) coated, dual-core resistive heating cables. The cables are encased between two layers of heat reflective aluminium foil providing even heat distribution. The cables are fixed to the mat at even spacing's, making fitting the FastWarm Under wood foil heating mat easy to install.
Features and benefits:
- 2 mm thick cable applied within industry leading foil matting which complies to IEC 60335 standards and is also UKCA approved.
- Combining the highest comfort level with maximum energy efficiency.
- Single point connection.
- No PVC used on heating element.
- Suitable for floating floor finishes.
- Emits Zero EMF (electromagnetic fields).
- Flexible and durable constructed cable.
- Constructed using a multi strand wire composite making them extremely durable and very strong.
General information
Color | Silver |
Finish | Foil |
Material | Aluminium |
Shape | Other Guidance for specification option: Roll. |
Length | 2000 mm 3000 mm 4000 mm 5000 mm 6000 mm |
Width | 500 mm |
Height | 2 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | K21/10 Wood laminate flooring K21/110 Wood flooring T90/479 Underfloor electric heating mat T90/478 Underfloor electric heating cables |
Specification data - Electric sheet underfloor heating elements
Standards | To BS EN 60335-1 and BS EN 60335-2-96. |
Rating | 140 W/m². |
Area | 5.0 m². |
Roll length | 10 m. |
Roll width | 500 mm. |
Resistance | 76 0hms. |
TotalWattage | 700 W. |
Voltage | 230 V. |
Sustainability data
Material | Aluminium |
