FCPS Coated Panel System
Verified by manufacturer 16 days ago
UL-EU Certified
Certificate type
European Technical Approval (ETA)
Certificate type
Indoor Air Comfort – Eurofins
Certificate type

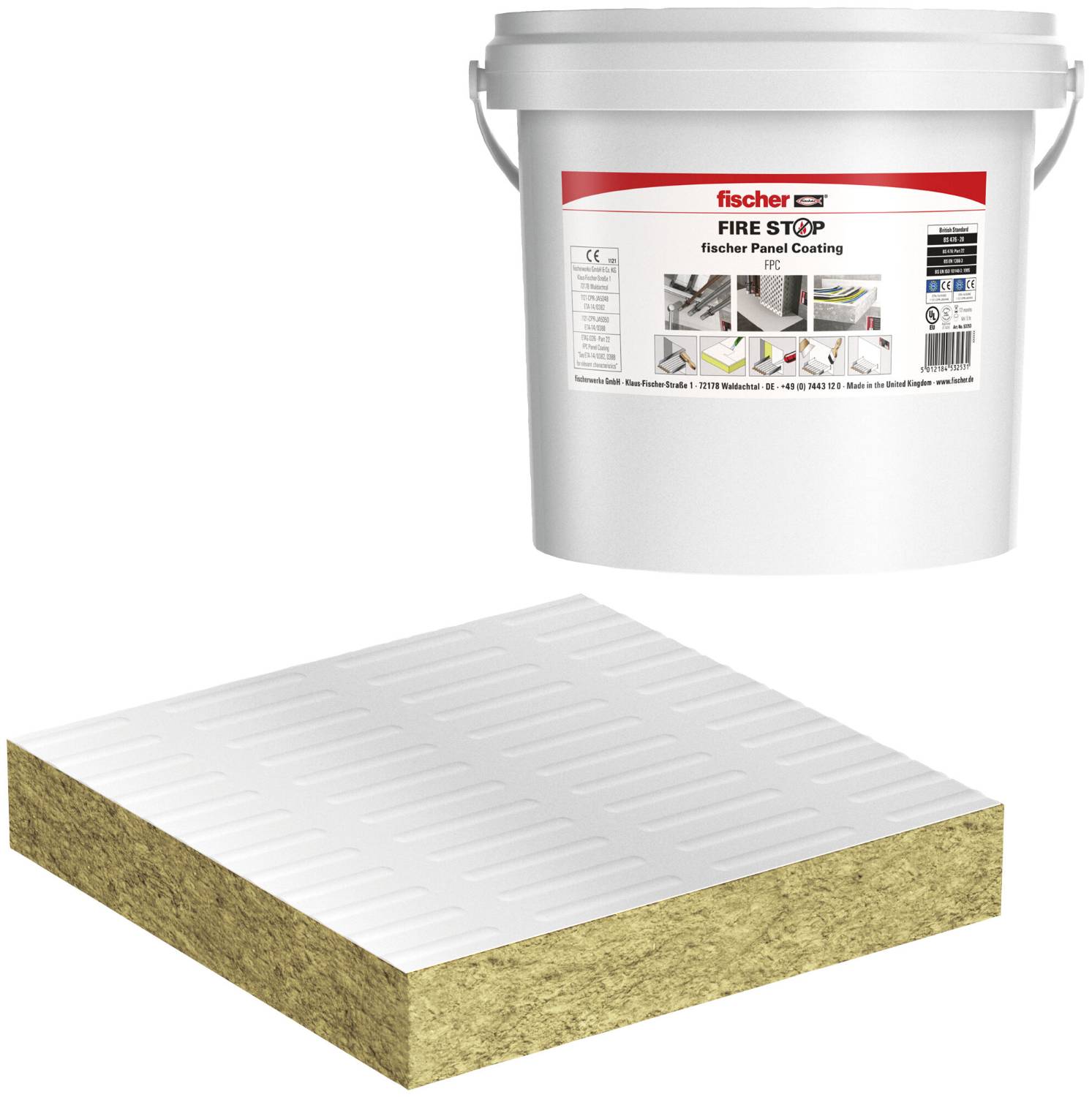

A rock fibre core coated with ablative sealant, designed to provide effective and efficient firestopping seals in both vertical and horizontal applications.
Application
Multiple service penetrations:
- Small and large openings.
- Cables/cable trays.
- Air ducts with dampers.
- Metallic or non-metallic pipes.
Description
A rock fibre core coated with ablative sealant designed to provide effective and efficient firestopping seals in both vertical and horizontal applications.
Features and benefits:
- Approved for light partition walls.
- Can be installed dry.
- Excellent acoustic properties.
- Also helps to maintain the sound reduction index of a structure.
- The FCPS has been tested to BS 476 part 20 & 22, EN 1366-3 and is ETA approved and CE marked.
- Designed to provide up to four hours' integrity and two hours insulation on a wide range of applications, the FCPS will allow additional services to be added or removed and will accommodate thermal and mechanical movement of services.
General information
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 50 mm |
Uniclass | |
CAWS | P12/140 Fire-stopping systems to multiple services penetrations |
SKU Code | 053252, 053253 |
Specification data - Multiple services penetrations fire-stopping systems
Classification data | |
Board barrier | Rock fibre core coated on both sides with ablative sealant. |
Sealant | |
Sealant type | FPC Panel Coating. |
Third-party certification | UL-EU Certificate UL-EU-00866-A1-CPR. European Technical Assessment ETA-20/1067. eurofins Indoor Air Comfort GOLD®. |
Product certifications
UL-EU Certified
UL-EU Certificate UL-EU-00866-A1-CPR
European Technical Approval (ETA)
European Technical Assessment ETA-20/1067
Indoor Air Comfort – Eurofins
eurofins Indoor Air Comfort GOLD® A+ (FPC Panel Coating)
Literature
FCPS Coated Panel System
