Application

Suitable for a wide variety of applications such as: retail, hotels, offices, airports, stations, hospitals, schools, colleges, garden centres and leisure.

Description

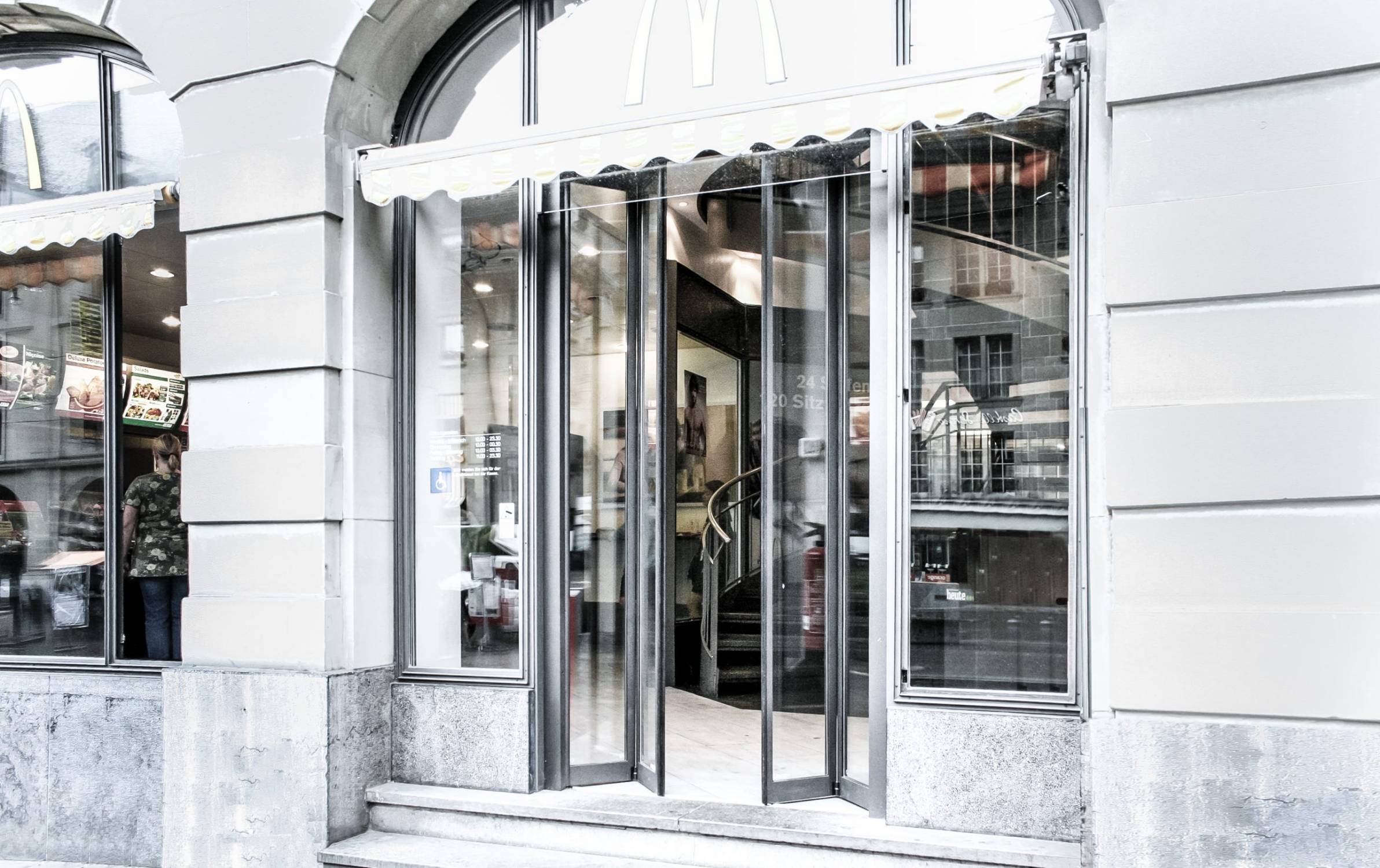

The FFM 4 Wing Bi-Part Folding Door System is designed, constructed and installed to satisfy BS EN 16005:2012, and also complies with the Building Regulations (E&W) Approved Document M, The Equality Act 2010 and BS 8300:2009.

The system requires a minimum of installation space, yet offers maximum clearance width.


All Gilgen folding doors are supplied complete with a fail-safe system which gives up to 30 minutes operation in the event of a mains failure. The main drive unit also incorporates both an auto-reverse safety mechanism and safety stopping mechanisms.

All equipment is installed by Automatic Door Suppliers Association (ADSA) accredited engineers.

General information

Finish

Anodized

Powder-coated

Material

Aluminium

Warranty description

One year

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/490 Automatic doors

L20/55 Doorsets

L20/60 Doors

Specification data - Sliding door and partition sets

Arrangement

Bi-parting folding.

Track system

-

Manufacturer guidance

Door movement guide:

Recessed floor track, helps further improve door security as well as improved weather sealing and resistance to strong winds and driving rain.

Door leaves

-

Construction

Door profile: 40 mm thick.

Operation

24 V DC motor with microprocessor controller. Additionally, the door allows for fitting of door position switches, fire or smoke alarm signals, voice message systems to assist partially sighted people and integrates with access control systems.

Manufacturer guidance

Drive system:

FFM drive unit incorporating both auto reverse safety mechanism and safety stopping mechanisms.


Power requirements:

230 V single phase. A 13 A live neon-lit fused spur supply, protected by a 30 mA RCD must be provided prior to installation. In order to comply with BS EN 16005 the mains connection must be capable of disconnection to prevent unintentional and unauthorised reactivation.

Width

Guidance for specification option:

800–1600 mm; insert requirements.

Height

Guidance for specification option:

2500 mm (maximum); insert requirements.

Finish

Anodized

Powder-coated

Control

Bedis hard wired control unit

Six position key switch

Guidance for specification option:

Optional.

Manufacturer guidance

  • Bedis hard wired programming key pad, designed for installation in a central control panel.
  • Configured for Automatic/ Manual/ Summer/ Winter/ Night/ Exit/ Open door operating modes.


Activation

Integration with access control systems

Manual push pad

Motion sensors

Push-button.

Pull switch.

Show more

Speed

0.5–0.7 m/s.

Battery back-up

Required.

Not required.

Power

230 V, 50/60 Hz, 13 A.

Manufacturer guidance

Power consumption 200 W.

Static drive power maximum 150 N.
