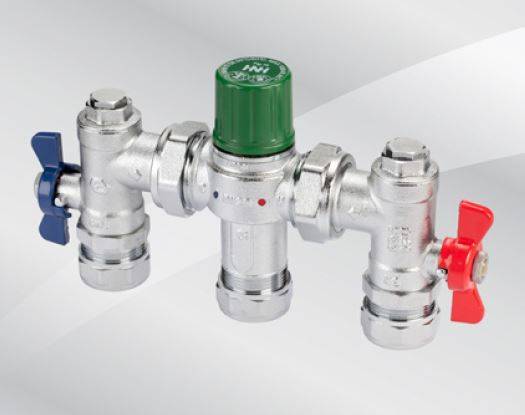

Fig. 78 Thermostatic Mixing Valve
Verified by manufacturer 15 days ago
22 mm
22 mm
Chrome plated brass thermostatic mixing valve, PN10.
Application
Suitable for healthcare, schools, workplace and domestic environments.
Description
Chrome plated brass thermostatic mixing valve, PN10.
Features and benefits:
- Blends hot and cold water to ensure constant, controlled safe outlet temperature.
- Fulfils the ‘duty of care’ requirements against scalding.
- Ideal for healthcare, schools, workplace and domestic environments.
- Flat face union ensures easy removal for maintenance.
- Integral strainers and check valves.
- Tamper proof adjustment.
- Includes ball valves for isolation.
- WRAS Approved maximum operating temperature 85°C.
- Operator: Lockshield.
Limits of use (Bidet):
- High pressure: HP-B.
- Low pressure: LP-B.
- Maximum mixed temperature: 38°C.
Limits of use (Shower):
- High pressure: HP-S.
- Low pressure: LP-S.
- Maximum mixed temperature: 41°C.
Limits of use (Wash basin):
- High pressure: HP-W.
- Low pressure: LP-W.
- Maximum mixed temperature: 41°C.
Limits of use (Bath):
- High pressure: HP-T (TMV2) and HP-T44 (TMV3).
- Maximum mixed temperature: 44°C.
General information
Color | Silver Guidance for specification option: Body. Green Guidance for specification option: Cap. Blue Guidance for specification option: Water flow directors. Red Guidance for specification option: Water flow directors. |
Material | Brass Guidance for specification option: Body, bonnet, ball and compression olive. |
Uniclass | |
CAWS | S90/680 Thermostatic mixing valves S90/680 Thermostatic mixing valves |
Product range |
Specification data - Thermostatic mixing valves
Third party certification: | WRAS Approved, NSF TMV2 and NSF TMV3. |
Inlets/outlets diameter | 22 mm. Manufacturer guidanceNominal. |
Dimensions | 200 x 129 x 38 x 86 x 110 mm. Manufacturer guidanceNominal A x B x C x D x E. |
Weight | 1.01 kg. |
Material (all components) | Body, bonnet: Chrome plated brass CW602N, Ball: Chrome plated brass CW607N, Compression olive: Brass CW507L, Check valve spring, strainer and spring: Stainless steel grade 304–1.4301, T-handle: Aluminium alloy, Ball seat: PTFE, O-ring and check valve O-ring: EPDM, Cap: ABS, Water flow directors: PSU, Check valve body: POM. Manufacturer guidance
|
Integral accessories | Strainers, check valves and ball valves. Manufacturer guidanceBuilt in with thermostatic mixing valve assembly. |
OperationTemperatureRange | +30 to +50°C. Manufacturer guidanceFactory setting: 41°C. |
PressureRange | Temperature: +5 to +85°C: PN10. Manufacturer guidanceSupply dynamic pressure imbalance: 2:1. |
Low temperature stability | ±2°C. |
Upper temperature stability | ±2°C. |
Fluid temperature range | +5 to +25°C: Cold water supply, +55 to +65°C: Hold water supply. Guidance for specification option: Minimum hot to mix temperature: +12°C. |
Operator | Lockshield. |

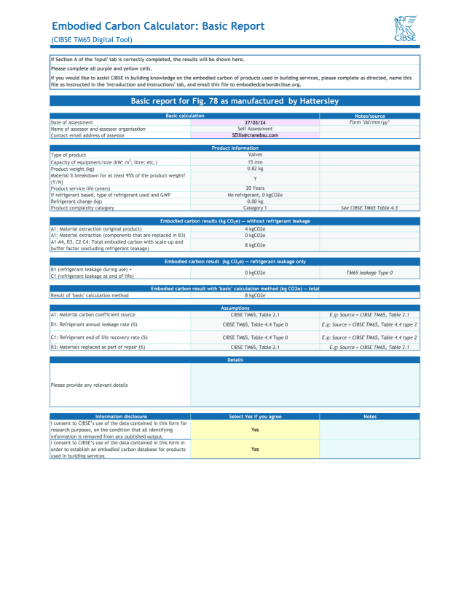

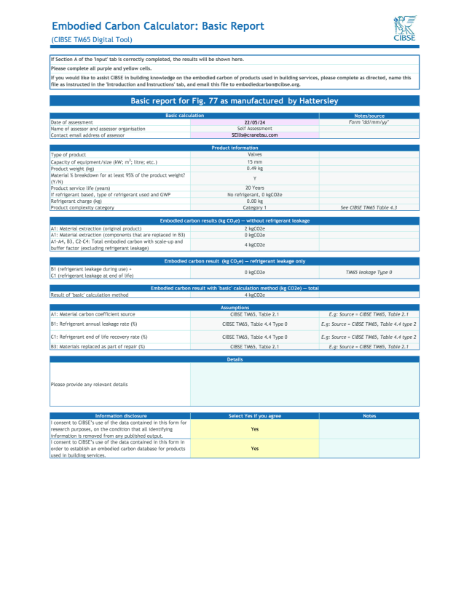

Sustainability data
Material | Brass Guidance for specification option: Body, bonnet, ball and compression olive. |
Recyclability | Recycle locally |
Expected Life | 20 year |
