Fig. 817 Strainer (WRAS)

Verified by manufacturer 2 months ago

DN15

Hattersley Variant:

Bronze Y-type strainer.

Jump to:
+44 (0)1473 277300 Website

Application

Suitable for system protection by trapping foreign matter.

Description

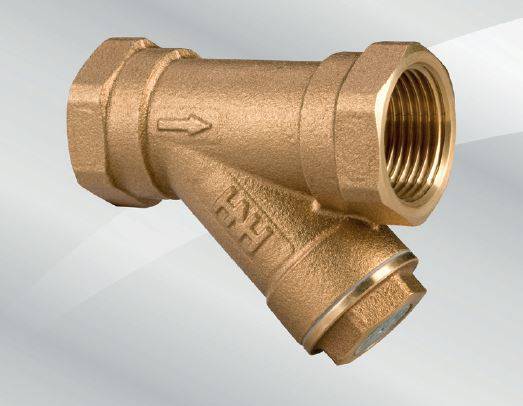

Bronze Y-type WRAS Approved strainer, PN16.


Features and benefits:

  • Robust and high quality bronze body.
  • Streamlined flow contours minimize pressure drop.
  • Compact design with short face to face.
  • Perforated stainless steel screen.
  • Captive asbestos-free, non-stick gasket.
  • Comprehensive flow characteristics available.

General information

Color

Yellow

Guidance for specification option:

Bronze body and cap.

Material

Bronze

Guidance for specification option:

Body and cap.

Stainless steel

Guidance for specification option:

Screen.

Steel

Uniclass

Pr_65_57_95_96 Water strainersPrimary

Specification data - Water strainers

Material

Cap and body: Bronze 1982 CC491K, Screen: Stainless steel grade 304.

Mesh size

Single screen, 0.75 mm mesh.

Guidance for specification option:

DN15–25.

Connections

-

Type

Threaded to BS EN 10266 (BS21 Taper ISO R) and B1.20.1 ANSI.

Size

DN15.

Manufacturer guidance

Nominal diameter.

Third party certification:

WRAS Approved.

PressureRange

Temperature: -10 to +100°C: 16 bar, +170°C: 7 bar.

Guidance for specification option:

  • PN16.
  • WRAS Approved: -10 to +85°C.

Manufacturer guidance

Hydraulic pressure test: 6 bar air.

Dimensions

58 x 33 x 15 x 62 mm.

Manufacturer guidance

Nominal A x B x C x D, where D = withdrawal distance for the screen.

Weight

0.2 kg.

Flow capacity

4.8 Kv.

Manufacturer guidance

Flow coefficient Kv.

Sustainability data

Material

Bronze

Guidance for specification option:

Body and cap.

Stainless steel

Guidance for specification option:

Screen.

Steel

Recyclability

Recycle locally

Expected Life

20 year
