Fig. 825W Strainer (WRAS)
Verified by manufacturer 15 days ago
DN65 (WRAS)
DN65 (WRAS)

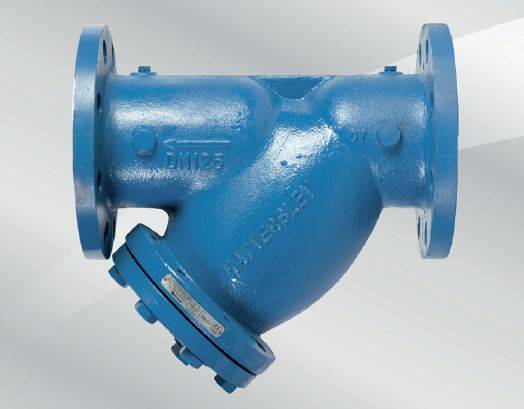

Ductile iron, Y-type strainer.
Application
- Suitable for potable water system protection by trapping foreign matter.
- Suitable for use on Group 2 liquids only, as defined by the Pressure equipment Directive 97/ 23/ EC.
Description
Cast iron Y-type strainer, PN16.
Features and benefits:
- Hattersley strainers will help eliminate the problems caused by foreign matter within piping systems.
- WRAS approved range from DN65 to DN150.
- WRAS approved for use with wholesome (potable) water.
- This product is suitable for use on Group 2 liquids only, as defined by the Pressure equipment Directive 97/ 23/ EC.
General information
Color | Blue Guidance for specification option: Body and cap. |
Material | Cast iron |
Uniclass |
Specification data - Water strainers
Material | Body and cap: Ductile iron BS EN 1563 EN-GJL-500/7, Stud and nut: Steel BS 4439 Grade 8.8 and BS 3692 Grade 8, Screen: Stainless steel grade 304 BS EN 10088-1: 2014 – 1.4301, Drain plug and test point plug: Malleable iron, Gasket: Asbestos free.Guidance for specification option:
|
Mesh size | Single screen, 1.5 mm mesh. |
Connections | |
Type | Flanged to BS EN 1092-2, PN25.Guidance for specification option: Section 3.2 table 11 with raised face. |
Size | DN65.Manufacturer guidanceNominal diameter. |
Third party certification: | WRAS Approved. |
PressureRange | Temperature: -10 to +85°C: PN25. |
Dimensions | 185 x 19 x 118 x 3 x 273 x 210 x 298 mm. Manufacturer guidanceNominal A x B x C x D x E x F x G, where G = withdrawal distance. |
Weight | 25 kg. |
EffectiveArea | 32%. Manufacturer guidanceFree flow area/cm². |
Plug | DN32. Manufacturer guidanceTest point plug size. |
Sustainability data
Material | Cast iron |
Recyclability | Recycle locally |
Expected Life | 20 year |
