Finion Double Washbasin 4139DC
Verified by manufacturer 8 months ago
4139DCR1
4139DCR1

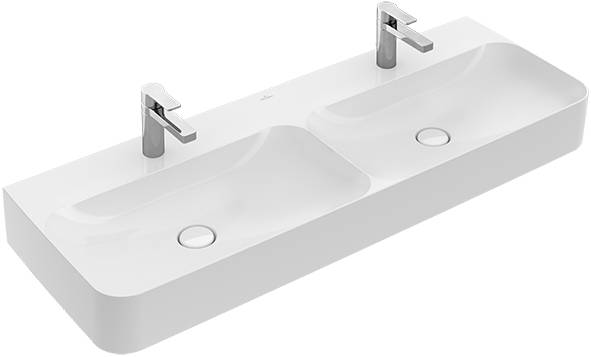

Rectangular double washbasin.
Description
Rectangular double washbasin manufactured in accordance with EN 14688 and EN 31.
Features and benefits:
- Ground underside.
- TitanCeram.
- Complies with EN 31 and EN 14688.
- Concealed ViFlow overflow with ceramic valve cover included.
General information
Color | White |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 1300 mm |
Width | 470 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Wall-hung washbasins
Standard | To EN 14688 and EN 31. |
Form | Wall-hung wash basin. |
Connecting dimensions | To BS EN 31. |
Materials | |
Body | Ceramic. |
Finish and colour | White alpin ceramic plus, gloss. |
Size | 1300 x 470 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred.Guidance for specification option: (1 tap hole per basin). Suitable for two 3-hole tap fittings, central tap holes punched out. |
Overflow | Concealed overflow. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Concealed ViFlow overflow with ceramic valve cover. |
Weight | 37.6 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
 Revit | - | 1 |
 SketchUp | - | 1 |
 OBJ | - | 1 |
 IFC | - | 1 |
