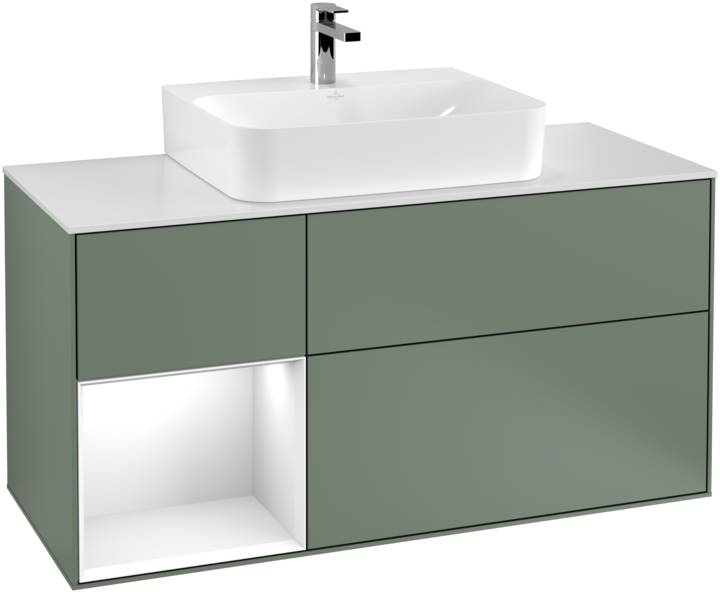

Finion Vanity Unit F16
Verified by manufacturer 8 months ago
Vanity unit with lighting, three pull-out compartments, space for central washbasin and left-sided exposed shelf.
Application
Suitable for selected washbasins.
Description
Wall mounted vanity unit with lighting, three pull-out compartments and an exposed, bottom left shelf. The work top has space for a central washbasin and is made of coloured glass. The carcass is available in a variety of colours and finishes.
Features and benefits:
- Fastening set included.
- Provided with one wide glass drawer divider and three narrow glass draw dividers.
- Soft closing compartments.
- Washbasins sold separately.
- Part of the Finion range.
- Push-to-open function.
- This light contains built-in LEDs. The LEDs in the light cannot be replaced.
General information
Color | Beige Black Blue Brown Gold |
Finish | Painted Veneer |
Material | Chipboard Glass Guidance for specification option: Drawer dividers. Medium density fibreboard (MDF) |
Shape | Rectangle |
Width | 1200 mm |
Uniclass | |
CAWS | N10/145 Vanity and washroom furniture |
Specification data - Vanity units
Form | Wall-mounted. |
Materials | |
Carcass | |
Frame and panels | Manufacturer guidanceMaterial dependent on finish and colour choice. Consult manufacturer for details. |
Finish and colour | Anthracite matt lacquer.Black matt lacquer.Glossy black lacquer.Glossy white lacquer.Light grey matt lacquer.Midnight blue matt lacquer.Oak veneer.Olive matt lacquer.Peony matt lacquer.Sand matt lacquer.Walnut veneer.White matt lacquer. |
Worktop | |
Material | Glass. |
Finish and colour | Black matt.White matt. |
Size (nominal) | 1200 x 603 x 501 mm. |
Integral accessories | Washbasin.G999 02 00 remote.Guidance for specification option: Required to control the lighting. It is not included in the scope of delivery. Only one control unit is necessary per bathroom. |
Shelves | One, exposed bottom left. |
Material | Manufacturer guidanceMaterial dependent on finish and colour choice. Consult manufacturer for details. |
Colour | Anthracite matt lacquer. Black matt lacquer. Glossy black lacquer. Glossy white lacquer. Light grey matt lacquer. |
Colour | Neutral white. Guidance for specification option: 2700 K Daylight white. Guidance for specification option: 6480 K |
Type | LED. Guidance for specification option: 1 x LED / 2.3 W |
Ingress protection (IP) rating | IP 44. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
 Revit | - | 1 |
 OBJ | - | 1 |
 IFC | - | 1 |
