Finion Vanity Washbasin 4164A2
Verified by manufacturer 8 months ago
4164A2R1
4164A2R1

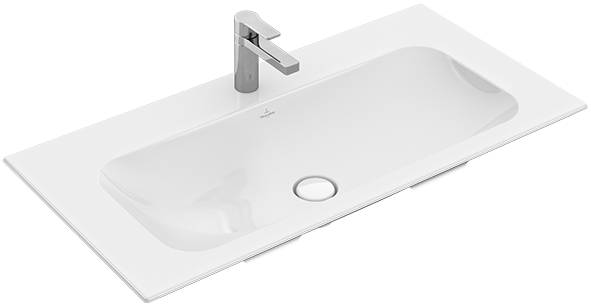

Rectangular vanity washbasin.
Description
Rectangular washbasin manufactured in accordance with EN 14688 and EN 31.
Features and benefits:
- TitanCeram.
- Unclosable valve with ceramic valve cover included.
- Complies with EN 31 and EN 14688.
General information
Color | White |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 1000 mm |
Width | 500 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Countertop washbasins
Standard | To EN 14688 and EN 31. |
Form | Vanity top (inset). |
Materials | |
Body | Ceramic. |
Finish and colour | White alpin ceramic plus, gloss. |
Size | 1000 x 500 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred.Guidance for specification option: Suitable for 3-hole tap fittings, central tap hole punched out |
Overflow | None. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Unclosable valve with ceramic valve cover. |
Weight | 21.1 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 ARCHICAD | - | 1 |
 3Ds Max | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
 IFC | - | 1 |
