Fire Doors - Thermoplastic Core - Composite Door with Solid Core
Verified by manufacturer 1 day ago
Byron
Byron

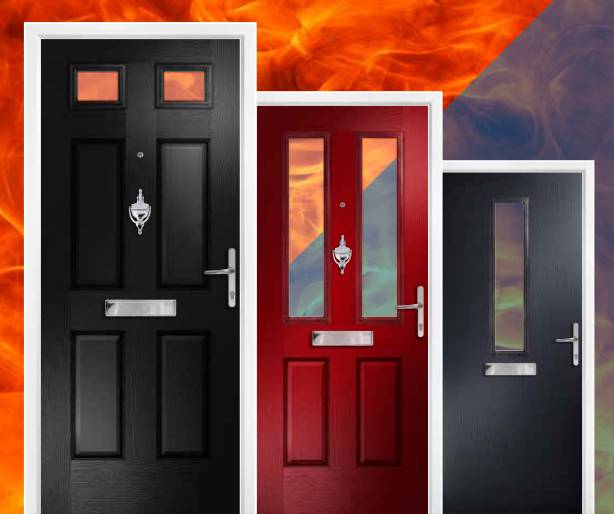

Composite FD30S fire-rated entrance doors with thermoplastic solid core.
Application
Suitable for a wide range of projects, fire/ smoke resistant FD30S.
Description
Composite fire-rated entrance doors with thermoplastic solid core.
Limited fire door product range that have specifically passed physical fire tests from both directions.
Features and benefits:
- Fire and smoke resistant to a minimum of 30 minutes (FD30S).
- Ten year guarantee.
- High resistance to denting, warping, bowing, twisting and splitting. Peel, flake, crack and fade resistant.
- Choice of colours. Grained finish.
- Through colour UV-stable.
- Resistant to knocks and scratches. Peel, flake, crack and fade resistant.
- PAS24:2022
- Secured by Design compliant specification available.
- Building Regulations compliant.
- ECO options to lower U-values.
- Virtually maintenance free.
- Fully reinforced 70 mm PVC-U frame.
- Recycled frame option available.
- UKCA marked.
Also available with GRP core (specified separately).
General information
Color | White Blue Green Red Black |
Finish | Grained |
Material | Plastic |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: Guarantee |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets
Classification data | |
Standard | External fire-rated doorset UKCA marked. |
Configuration | Single-leaf, single-action. Manufacturer guidanceSee Accessories for fanlight and sidelight options. |
Doorset size | Guidance for specification option: Insert requirements.
|
Performance | |
Fire resistance | |
Integrity | FD30S. EI30Sa. Guidance for specification option: Fire resistance of 30 minutes and includes ambient smoke control. |
Acoustic performance | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Strength and durability | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Thermal | Manufacturer's standard. Guidance for specification option: Consult manufacturer for details. |
Intruder resistance | |
Minimum requirement | To PAS 24. |
Frame | |
Materials | PVC-U frame, 70 mm. Guidance for specification option: Standard. Recycled frame. |
Threshold | Exitex MXS 15/67 & Rain Deflector. |
Perimeter seals or inserts | Manufacturer's standard. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Finish and colour | Black, grained. Blue, grained. White, grained. Red, grained. Green, grained. Anthracite grey, grained. Slate grey, grained. Agate grey, grained. |
Installation fasteners | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Frame accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Door leaf | |
Thickness | 44 mm. |
Core | Solid thermoplastic. |

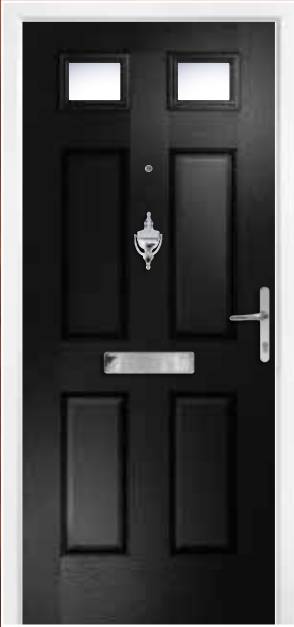

Panel details | Six panelled (four solid, two glazed). |
Material | PVC-U. |
Finish | As frame. Black, grained. Blue, grained. White, grained. Red, grained. Green, grained. Anthracite grey, grained. Slate grey, grained. Agate grey, grained. |
Glazing | |
Type | Clear fire-resisting safety glazing. Obscure fire-resisting safety glazing. Manufacturer guidance26 mm fire-rated DGU for glazing within the doorset and 28 mm for toplights (where applicable). |
Beading | Manufacturer's standard. |
Manifestation | Guidance for specification option: Consult manufacturer for options and insert requirements or omit. |
Glazing accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Hardware | Guidance for specification option: Choose from a combination of the following:
Insert full requirements including further detail as appropriate. |
Perimeter seals | Fire and smoke seal. |
Installation fasteners | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Accessories | Integral fanlight. Coupled fanlight. Sidelights. Coupled glazed single flag window inc. coupled fanlight. Coupled glazed single flag windows inc. coupled fanlight. Coupled glazed doubled side screens. Coupled glazed double flag window inc. coupled fanlight. Coupled glazed triple flag window inc. coupled fanlight. Coupled glazed triple side screens inc. coupled fanlight. Coupled glazed single flag window. Coupled glazed triple flag window. Not required. |
Style | Larkin. |
Sustainability data
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Plastic |
