Fire Rated 30-60-90 mins Spotlight, CCT, IP65, Triac Dimmable down light 10107DFV/W - Recessed COB LED Spotlight

Verified by manufacturer 7 months ago

One Light UK Ltd

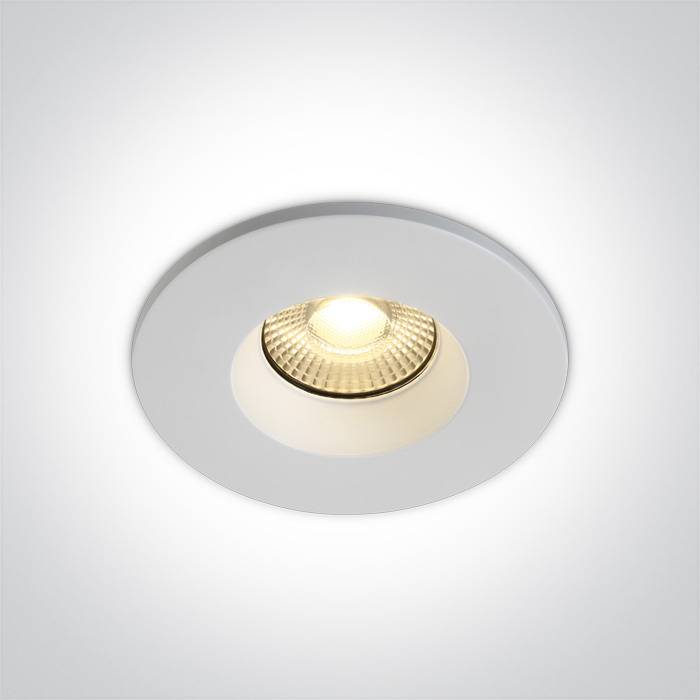

Recessed fire-rated COB LED spotlight.

Jump to:
01992-445-101 Website

Application

Recessed ceiling luminaire, indoor or outdoor use.

Description

Recessed fire-rated COB LED spotlight.


Features and benefits:

  • Complies with EN 60598-1 and any other specific standards.
  • Fire-rated, 90 minutes.
  • IP65.
  • Variable CCT: 2700 K - 3000 K - 4000 K.
  • Output: 510 lumens.
  • CRI: 80.
  • Beam angle: 60°.
  • Supplied with Triac dimmable LED driver.
  • Supplied with a white ring as standard, optional black or chrome rings.

General information

Color

White

Guidance for specification option:

Standard.

Black

Silver

Guidance for specification option:

Chrome.

Manufacturer guidance

Outer ring only.

Material

Metal

Shape

Circle

Length

88 mm

Width

88 mm

Height

73 mm

Warranty description

Three year

Uniclass

Pr_70_70_48_71 Recessed luminairesPrimary
Pr_70_70_48_82 Spotlights

CAWS

V90/510 General purpose luminaires

V90/510 Luminaires

Specification data - Recessed luminaires

Standards

To EN 60598-1.

Guidance for specification option:

And any other specific standards; consult manufacturer for details.

Luminaire description

Circular COB LED spot for installation in ceilings.

Guidance for specification option:

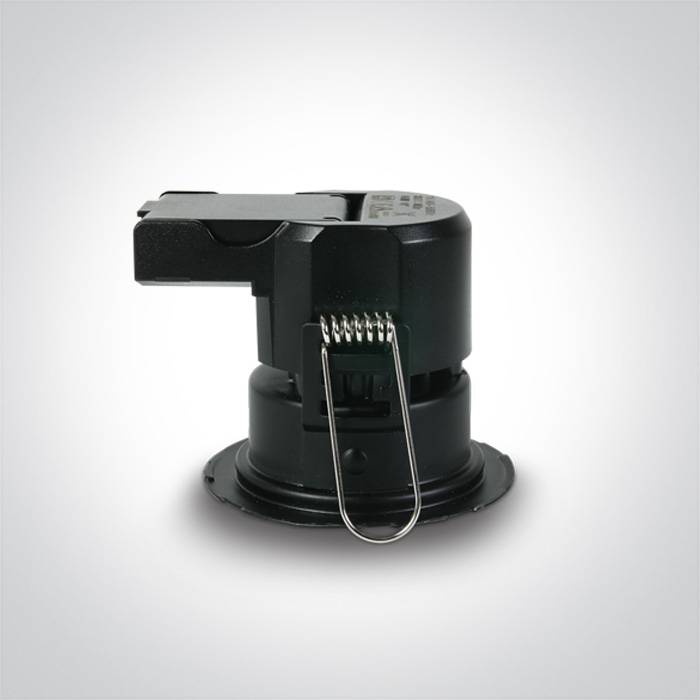

Requires 65 mm-diameter cut-out hole and 80 mm depth.

Classification

-

Ingress protection (minimum)

IP65.

Circumstances of use

Normal.

Controlgear position

Integral within luminaire.

Guidance for specification option:

LED driver, IP20.

Nominal voltage

220–240 V a.c.

Guidance for specification option:

50/ 60 Hz.

LED luminaires

-

Initial LED luminaire efficacy (minimum)

72.86 lm/W

Wattage

7 W.

Colour temperature

Variable 2700 K; 3000 K; 4000 K.

Colour rendering index (Ra)

80.

Beam angle

60°.

Dimming protocol

TRIAC.

Guidance for specification option:

Supplied with Triac dimmable LED driver.

Accessories

None.

Guidance for specification option:

White ring as standard.

050178/B black ring.

Guidance for specification option:

Aluminium; replaces standard white ring.

050178/C chrome ring.

Guidance for specification option:

Aluminium; replaces standard white ring.

Output

510 lm.
