Fire Rated Glass Skylight REI 30 / REI 60 / REI 90 - Rooflight
Verified by manufacturer 1 month ago
REI 30 Triple Glazed – Standard
REI 30 Triple Glazed – Standard
TUV - Safety and Quality Report
Certificate type

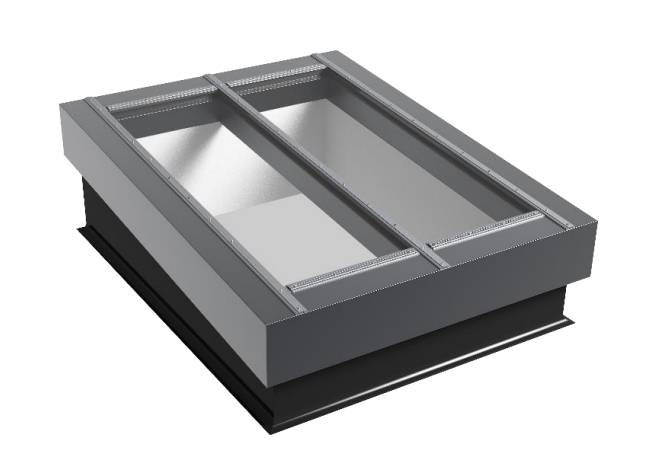

A fire resistant, framed glass skylight that can be installed horizontal or inclined.
Application
- Suitable to roofs inclinations up to 15°.
- Steel upstand is included.
- Must be mounted on concrete of a thickness of 200 mm and be to the same fire resistance as the specified skylight (R30 for REI30, R60 for REI60, R90 for REI90).
- Roofing material of other types are not technically approved, contact the manufacturer for further information.
Description
The Fire Rated Skylight is a steel framed skylight that is fire resistant. This rooflight that can maintain fire resistance for 30, 60 or 90 minutes while also sealing for smoke and fire.
Fire Rated Glass Skylight Features and benefits:
- Fire resistant to EN 1365-2.
- Double and triple rooflight glazing available with solar control glazing options.
- CE marked to EN 14351.
General information
Color | Clear Beige Black Blue Bronze |
Finish | Coated |
Material | Steel Glass |
Shape | Rectangle |
Length | 750 mm 1030 mm 1500 mm 2000 mm 2060 mm |
Width | 30 mm 44 mm |
Height | 650 mm 1000 mm |
Uniclass | |
CAWS | L10/46 Roof windows L10/480 Roof windows L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights
Form | Rectangular. |
Size | Maximum glass size: 1030 x 2500 mm.Manufacturer guidanceGlass size. |
Product performance | |
Fire performance | |
Fire resistance | REI 30. |
Reaction to fire | To EN13830-2003, A2. |
Whole window U-value | Vertical Ug value: 0.7 W/m²k; Horizontal Ug value: 0.9 W/m²k. |
Frame | |
Material | Extruded steel. |
Finish | |
Coating | Coated. |
Colour | Guidance for specification option: Can be coated in any single RAL colour as standard. |
Glazing or infill | |
Type | 6 mm toughened external glass; 12 mm spacer; 6 mm centre glass; 12 mm spacer; 8 mm laminated internal glass. |
Construction | Triple skin. |
Colour | Clear. |
Coating | Not required. |
Operation | |
Type | Non-operable |
Control | N/a. |
Accessories | Not required.Guidance for specification option: Screws are visible as standard. Cover strip.Guidance for specification option: To conceal screws. |
Dimensions | Maximum span: 2500 mm (rafter direction). |
Sound insulation | 43 Rw. |
Light transmission | 68%. |
Air permeability | To EN 12152, AE3000. |
Watertightness | To EN 12154, RE1950. |
Wind load | To EN 13116, 2000 Pa. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Germany |
Material | Steel Glass |
Third party certifications
