FireGlaze 2000 - Fire Glazing Seal

Verified by manufacturer 13 days ago

Sealmaster Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

Intumescent seal.

Jump to:
+44 (0)1223 832851 Website

Application

Suitable for both glazed openings in timber fire doors and glazed fire screens.

Description

Offering an intumescent solution for both glazed openings in fire doors and glazed fire screens. For 60 minute fire resistance applications these solutions are provided by FireGlaze 2000 with FireGlaze GL60 liner.


Features and benefits:

  • FireGlaze 2000 is an ammonium phosphate/ ceramic based intumescent strip developed to provide designers with a dry glazing system option to the FireGlaze Compound wet solution.
  • FireGlaze GL60 liner is an ammonium phosphate based intumescent strip developed specifically for 60 minute fire resistance glazed timber fire door and screen applications and is used in combination with FireGlaze 2000.
  • FireGlaze 2000 has independent fire test and Third Party certification evidence for a wide range of fire resisting glasses, timbers and opening sizes including, uniquely, 60 minute fire resistance performance in softwood glazed screens when used in combination with FireGlaze GL60 liner. Its fire resistance performance is enhanced by installing it in combination with a thin layer of FireGlaze Compound.
  • FireGlaze GL60 liner, is used to line glazed openings in fire doors or fire screens to provide an essential intumescent contribution to the the 60 minute fire resistance performance of these building elements.

General information

Color

White

Yellow

Brown

Black

Finish

Other

Guidance for specification option:

Ceramic

Material

Ceramic

Guidance for specification option:

ammonium phoshate/ceramic based intumescent strip

Shape

Rectangle

Length

2100 mm

Width

25 mm

Guidance for specification option:

FireGlaze 2000

Height

5 mm

Manufacturer guidance

Thickness

Uniclass

Pr_35_90_07_33 Glazing beadsPrimary

CAWS

L20/55 Doorsets

L20/480 Doorsets

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/60 Doors

L20/45 Doors

L20/280 Doors

L20/250 Wood panelled doors

L20/25 Wood panelled doors

L20/30 Wood doors

L20/270 Wood doors

L20/230 Wood flush doors

L20/20 Wood flush doors

Specification data - Glazing beads

Material

Ammonium phosphate/ ceramic based intumescent strip .

Profile

Square edge.

Accessories

FireGlaze GL60/45 liner.

Guidance for specification option:

Width: 45 mm.

FireGlaze GL60/54 liner.

Guidance for specification option:

Width: 54 mm.

FireGlaze GL60/63 liner.

Guidance for specification option:

Width: 63 mm.

Manufacturer guidance

Colour: White.

Size:

2100 mm long.

Sustainability data

Material

Ceramic

Guidance for specification option:

ammonium phoshate/ceramic based intumescent strip

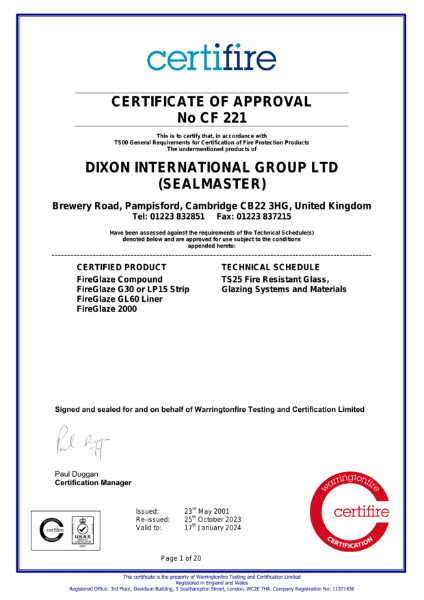

Third party certifications

Certifire Certificate

Certifire Certificate

Certifire CF221 - Glazing Systems

Literature

Sealmaster Fireglaze 60 (DRY) Technical Data Sheet

Sealmaster Fireglaze 60 (DRY) Technical Data Sheet
