Flat Bar Pull Handle (HUKP-0101-36) - Door handle
Verified by manufacturer 6 months ago

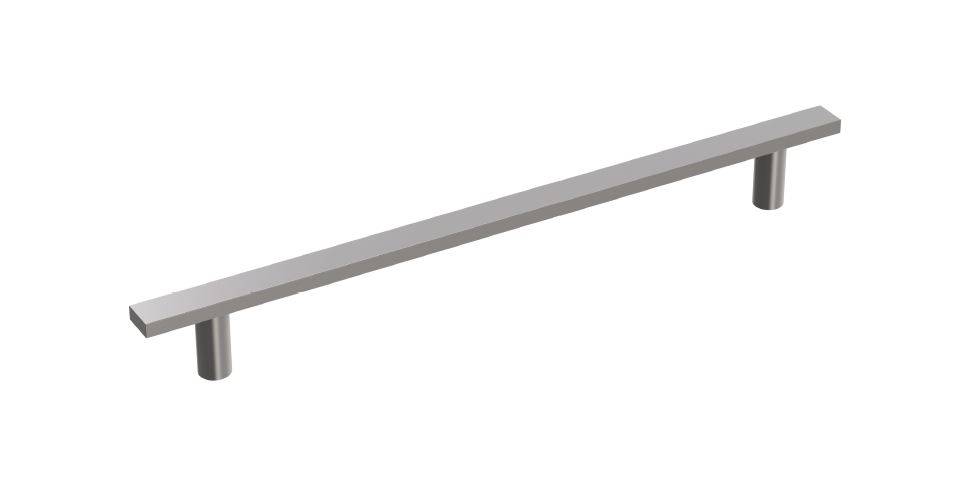

Stainless steel flat bar pull handle
Application
To suit doors up to 60 mm thick and glass doors 8-12 mm.
Description
Stainless steel flat bar pull handle.
Features and benefits:
- Pull handle flat bar design tubular section on pillars.
- Overall lengths standard: 300, 425, 650, 900 and 1000 mm.
- Over 1000 mm to max 2400 mm centres require additional fixing points.
- Fixing types: Bolt through, back to back or secret fixing.
- To suit doors up to 60 mm thick and glass doors 8-12 mm.
General information
Color | Silver Black Gold Bronze Manufacturer guidanceAny RAL colour available to special order. |
Finish | Satin Guidance for specification option: Brass or stainless steel. Polished Guidance for specification option: Brass or stainless steel. Matt Guidance for specification option: Black. |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | 300 mm 425 mm 650 mm 900 mm 1000 mm Manufacturer guidanceOver 1000 mm to max 2400 mm centres require additional fixing points. |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/641 Pull handles P21/42 Pull handles |
Product range |
Specification data - Pull handles
Classification grades (minimum) | |
Fire resistance | 0. |
Corrosion resistance | 4. |
Form | Straight bar with stand-off spacers. |
Diameter | 10 mm.Guidance for specification option: Door handle thickness. |
Distance between centres | 300 mm.425 mm.650 mm.900 mm.1000 mm. |
Material and finish | Stainless steel, grade 1.4404 (316L). |
Colour | Satin stainless steel.Polished stainless steel.Matt black.Light bronze.Guidance for specification option: Special order. Dark bronze.Guidance for specification option: Special order. Hafele black.Polished brass.Satin brass.RAL colour.Guidance for specification option: Special order. |
Mounting | Bolt through.Back to back.Secret fixing. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
4. Project - Architectural Pull Handles
