Flat Lever Handle (HUKP-0101-13) - Door handle

Verified by manufacturer 2 months ago

Hafele UK Ltd

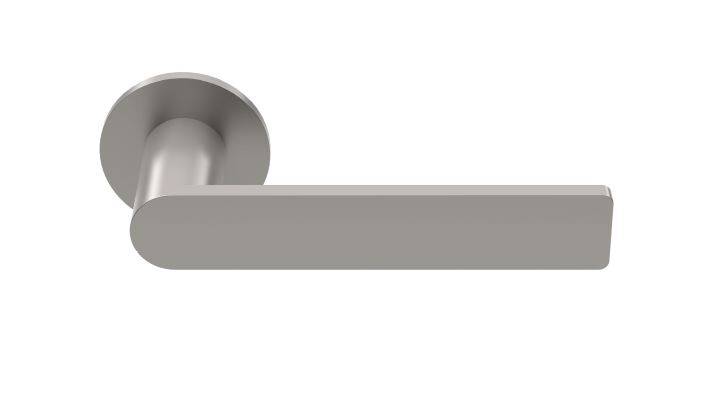

Stainless steel flat lever handle

Jump to:
BOS
+44 (0)800 171 2907 Website

Application

Suitable for high frequency of use EN4.

Description

Stainless steel flat lever handle.


Features and benefits:

  • Flat design lever handle in solid bar stainless steel.
  • Ball bearing concealed fixed rose with four point back to back fixing.
  • Unsprung, for use with heavy duty followers.
  • 52 mm diameter and 4 mm thick rose, 38 mm centres for bolt through fixings.
  • To suit door thickness from 35-54 mm.


General information

Color

Silver

Black

Gold

Bronze

Manufacturer guidance

Any RAL colour available to special order.

Finish

Satin

Guidance for specification option:

Brass or stainless steel.

Polished

Guidance for specification option:

Brass or stainless steel.

Matt

Guidance for specification option:

Black.

Material

Stainless steel

Steel

Length

135 mm

Width

50 mm

Warranty description

25 year

Uniclass

Pr_30_36_59_25 Door lever handle setsPrimary

CAWS

P21/610 Lever handles

P21/38 Lever handles

Product range

Digital BIM Assets
Lever Handles

Specification data - Door lever handle sets

Standard

To BS EN 1906: 2012 and EN4.

Classification grades (minimum)

-

Category of use

4.

Durability

7.

Fire resistance

1.

Guidance for specification option:

Up to 60 minute fire rating.

Safety

1.

Corrosion resistance

4.

Security

0.

Type of operation

U.

Style

Flat pattern.

Size

6 mm.

Guidance for specification option:

Handle thickness.

Material and finish

Stainless steel, grade 1.4404 (316L).

Colour

Satin stainless steel.

Polished stainless steel.

Matt black.

Light bronze.

Guidance for specification option:

Special order.

Dark bronze.

Guidance for specification option:

Special order.

Hafele black.

Polished brass.

Satin brass.

RAL colour.

Guidance for specification option:

Special order.

Execution

Ball bearing concealed fixed rose with four point back to back fixing.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
