Flexible feed and waste system R2071/R2074/R2075/R2077/
Verified by manufacturer 1 month ago

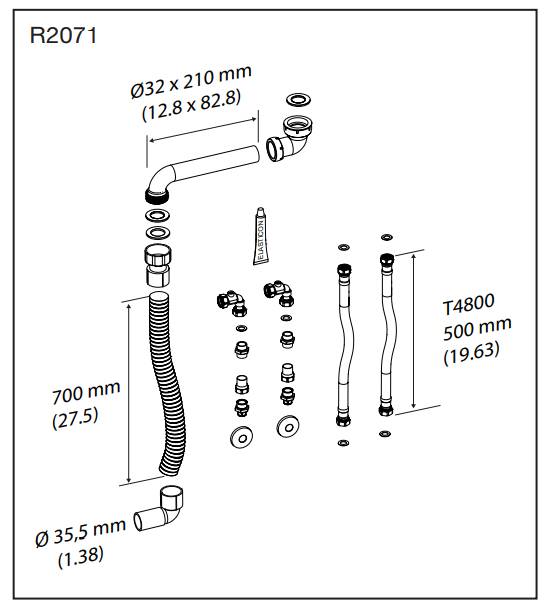

R2071
R2071
A flexible feed and waste system to ensure the flow of water to and from the height adjustable wash basin brackets.
Application
Flexible plumbing kits can be used with Pressalit 'height adjustable' and 'height and sideways adjustable' bathroom basin brackets in accessible bathrooms, hygiene rooms and changing places.
Description
A kit of flexible feed pipes for hot and cold water, along with a flexible waste hose. The UK kit includes right-angled isolating valves that should be connected to the water supply and a 40 mm diameter waste connection that will fit to UK plumbing with the aid of a compression fitting (not included). Four variants are available.
Features and benefits:
- Provides flexibility to wash basin connections.
- Adaptable for different arrangements.
R2071:
- Feed pipes: 500 mm.
- Waste pipe: 700 mm.
R2075:
- Feed pipes: 700 mm.
- Waste pipe: 700 mm.
R2077:
- Feed pipes: 900 mm.
- Waste pipe: 900 mm.
R2074:
- Feed pipes: 1200 mm.
- Waste pipe: 1500 mm.
General information
Color | White Other |
Material | Stainless steel Guidance for specification option: Feeder pipe braiding. Plastic Guidance for specification option: SPX plastic feeder pipes. PVC Guidance for specification option: Corrugated waste pipe. Polypropylene Guidance for specification option: Elbow and removable connector. Thermoplastic elastomer (TPE) Guidance for specification option: Elbow seal. |
Shape | Circle Guidance for specification option: Pipes. |
Length | 500 mm 700 mm 900 mm 1200 mm 1500 mm |
Width | 32 mm Guidance for specification option: Diameter, with adaptor to fit 40 mm. |
Height | 32 mm Guidance for specification option: Diameter, with adaptor to fit 40 mm. |
Warranty description | Five year |
Uniclass | |
CAWS | N11/30 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes |
Specification data - Washbasin wastes
Standard | To EAN 5708590147925 and ETIM EC011597. |
Form | A kit of flexible hot and cold water feed pipes and flexible waste hose. |
Materials | |
Body | Feed pipe: SPX plastic, stainless steel braid, Waste pipe: Flexible, corrugated white PVC (32 mm diameter). |
Size | 500/ 700 mm.Guidance for specification option: Feed pipe/ Waste pipe. |
Accessories | Not required. Compression fittings. Guidance for specification option: Supplied by others. |
Elbows | Polypropylene (PP) elbow, with removable connector, TPE seal. Guidance for specification option: TPE: Thermoplastic Elastomer. |
Rubber seal | EPDM. |
Weight | 1.202 kg. |
Water supply fittings | Right-angled isolating valves. |
Integral accessories | 40 mm diameter waste connection. Guidance for specification option: Will fit to UK plumbing with the aid of a compression fitting. Compression fittings not included. Brass connecting nuts, both ends (1/2"). Guidance for specification option: For feeder pipes: Both ends. 32–40 mm adaptor. Guidance for specification option: For waste pipes. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Denmark |
Country of product manufacture | Denmark |
Material | Stainless steel Guidance for specification option: Feeder pipe braiding. Plastic Guidance for specification option: SPX plastic feeder pipes. PVC Guidance for specification option: Corrugated waste pipe. Polypropylene Guidance for specification option: Elbow and removable connector. Thermoplastic elastomer (TPE) Guidance for specification option: Elbow seal. |
