FlexiPad - Audible Water Leak Sensor

Verified by manufacturer 5 months ago

Andel Ltd

Audible FlexiPad sensor, specifically designed for laying in narrow voids.

Jump to:
+44 (0)1484 845000 Website

Application

For laying in narrow voids such as beneath washing machines, dishwashers, sinks, showers and baths.

Description

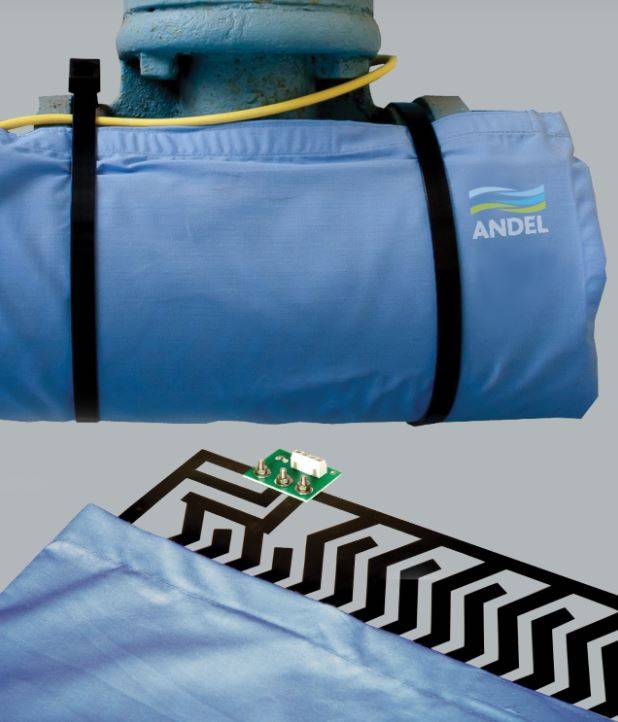

Floodline® FlexiPad sensor is a flat, flexible sheet designed for liquid leak detection in narrow voids, around pipework, below plant equipment and in drip trays. Sensors can detect all types of conductive liquid leaks and spills ranging from water to paint, chemicals and even syrups from vending machines. Sensors can be wrapped around pipework at valves or joints and placed below equipment where leaks may be a risk.


A FlexiPad sensor can be used as a single sensor, or multiple sensors can be arranged in groups and connected together to form a single zone. A removable fabric cover assists absorption and protects the sensing surfaces. FlexiPad sensors can be wet, dried and redeployed any number of times, provided the sensor element is not contaminated.

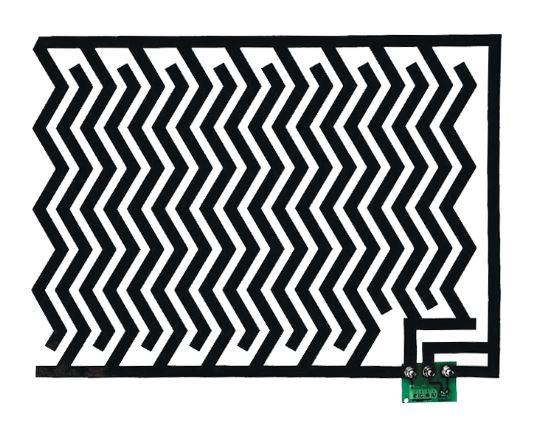

The units are constructed with a tough, flexible plastic sheet with bonded carbon-loaded detection tracks and supplied with a removable fabric cover. The FlexiPad activates when in contact with any conductive liquid and can be returned to use when dried.


In the event of a leak the alarm will be activated with a constant sound. The alarm will not silence until the sensing pad is fully dried. The device can be muted by turning the sliding switch to the 'OFF' position.


Features and benefits:

  • Sensor can be wetted and dried a number of times.
  • Can be returned to use once dried.
  • Can be laid loose, pinned or glued at corners or tie-wrapped loosely around pipework.
  • The battery enclosure is supplied with a double-sided adhesive pad to allow for easy mounting in a convenient location.
  • Bespoke designs are available for size, shape and base material.

General information

Color

Black

Material

Plastic

Fabric

Shape

Rectangle

Other

Guidance for specification option:

Bespoke options available in sizes up to 1000 x 1000 mm.

Length

400 mm

1000 mm

Bespoke

Guidance for specification option:

Up to a maximum of 1000 mm.

Width

300 mm

700 mm

Bespoke

Guidance for specification option:

Up to a maximum of 1000 mm.

Height

1 mm

5 mm

Guidance for specification option:

At connection point.

Warranty description

Ten year

Uniclass

Pr_75_50_48_60 Pad leak sensorsPrimary

Specification data - Pad leak sensors

Format

Single-sided.

Accessories

Removable fabric cover.

Cable

Standard PVC/ PVC 7/ 0.2 multi-core alarm/ communication type cable.

Other.

Guidance for specification option:

LSF or other light cables can be substituted as required. Contact manufacturer for details.

Power

1 x 9 V (PP3).

Cable length

1 m.

Dimensions

400 x 300 x 1 mm.

Guidance for specification option:

As standard.

1000 x 700 x 1 mm.

Guidance for specification option:

As standard.

Bespoke.

Guidance for specification option:

Insert requirements. Up to a maximum of 1000 x 1000 mm.

Sustainability data

Material

Plastic

Fabric
