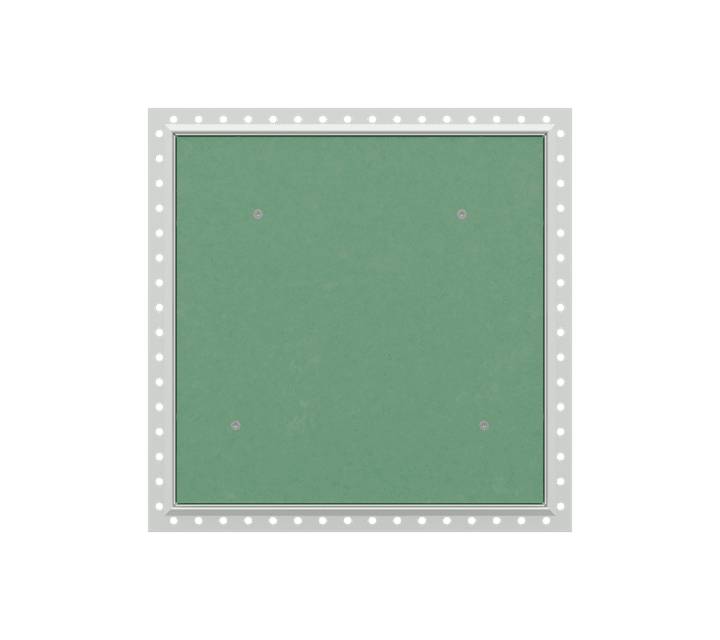

FlipFix - Ceramic Tiled Access Panel - Beaded Frame - Non Fire Rated - Budget Lock - Tiling Access Panel
Verified by manufacturer 2 months ago
FlipFix Metal Access Panel Tray with moisture board infill for tiling, Non Fire Rated, Beaded Frame fitted with FlipFix Device for Fast & Easy Fitting, Budget Lock
Application
Suitable for tiling.
Description
FF-000-TD-BF-BL is manufactured with a perforated frame for tiles to adhere to. The panel has a moisture board faced door for applying ceramic tiles. The door leaf is locked in place via a budget lock as standard, with other lock options available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request. This panel is for inspection use only and is not suitable for personnel access.
Features and benefits:
- Manufactured from Zintec steel with a 0.9 mm thick door and frame.
- The panel has a fully demountable door which is located via a locating angle at the bottom of the door.
General information
Color | White |
Finish | Powder-coated |
Material | Steel Plasterboard |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Position | Wall-mounted. |
Size | Manufacturer guidance
|
Frame | Perforated for tiling. |
Panel | |
Material | Steel with moisture board infill. |
Integral finish | Powder-coated. |
Latch or lock type | Low level security budget lock.Touch Catch Lock.High level security castellated tamper proof lock.Other.Guidance for specification option: Other lock options are available on request. Consult manufacturer and insert requirements. |
Colour/ Finish | RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements. |
Literature
Datasheet - FlipFix Tiled Access Panel - Non Fire Rated
