Floodline® Valve Control Panel

Verified by manufacturer 5 months ago

Andel Ltd

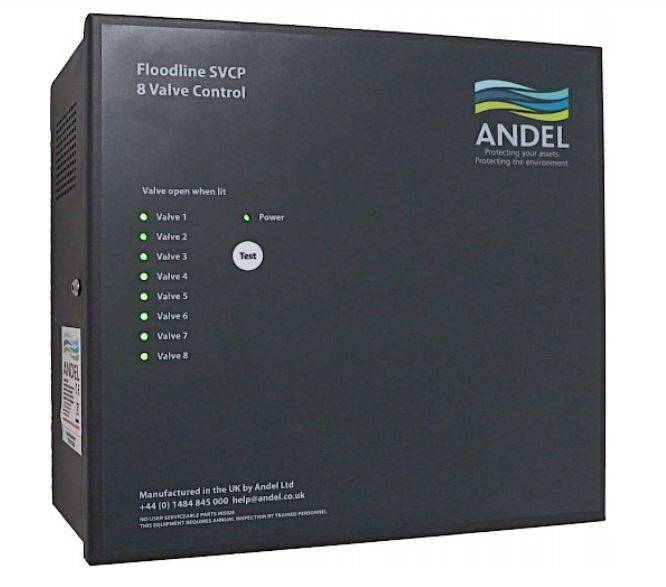

Eight way valve control panel.

Jump to:
+44 (0)1484 845000 Website

Application

Valve control applications.

Description

Valve control panel for the operation of up to eight solenoid or motorized valves that can isolate the water, oil or gas source when a leak is detected. Each zone is electrically isolated, therefore if an alarm is activated, unaffected zones continue normal operations with full and uninterrupted leak monitoring.


Features and benefits:

  • Monitors alarm relays in a Floodline® control panel.
  • Controls operation of up to eight 24 V d.c. 16 W solenoid or energy-saving motorized valves.
  • Can automatically isolate water, gas and oil supplies to any number of zones if an alarm is triggered.
  • Illuminated valve, power and alarm LED indicators.
  • Fuse protection for each power output.
  • Output for both normally open and normally closed valves.
  • Valve test button.
  • 10-year warranty.

General information

Color

Grey

Guidance for specification option:

RAL 7043.

Finish

Powder-coated

Textured

Material

Steel

Shape

Rectangle

Length

100.5 mm

Guidance for specification option:

Depth.

Width

276 mm

Height

276 mm

Warranty description

Ten year

Uniclass

Pr_75_50_20_95 Valve control panelsPrimary

Specification data - Valve control panels

Description

Valve control panel.

Manufacturer

Andel Ltd.

Product reference

Floodline® Valve Control Panel.

Capacity

1–8 valve control output rate at 24 V d.c. 16 W.

Manufacturer guidance

Zone capacity.

Power

100–240 V a.c. 180 W (eight valves active).

Construction

Fine textured steel enclosure.

Dimensions

276 x 276 x 100.5 mm.

Guidance for specification option:

H x W x D.

Fixing

Wall mounted.

Monitoring

Alarm relays in Floodline® leak detection panels, controlling valve activation.

LED Colour

Green (power and valves).

Guidance for specification option:

1 to 8, illuminated indicates valve is open.

Controls

Test button for testing the operation of the valves.

Sustainability data

Material

Steel

Literature

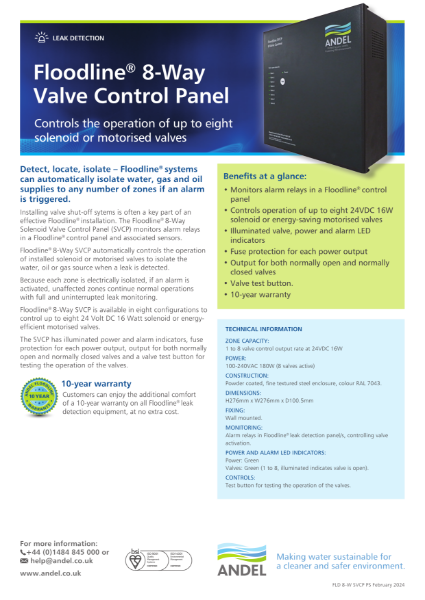

Floodline Valve Control Panel Product Data Sheet

Floodline Valve Control Panel Product Data Sheet
