Flooring Transitions For Dementia Friendly Flooring Design - Range 2.5 mm to 11 mm - Dementia Friendly Flooring Transitions
Verified by manufacturer 2 months ago
QTP38T
QTP38T
ISO 9001 Quality Management
Certificate type
Dementia friendly designed transition profiles, suitable for use to join different floorcoverings together, or as a door bar.
Application
Suitable for use:
- To join different floorcoverings together, or as a door bar.
- With various residential and public sector applications, including: Offices, healthcare, education, retail, hotel and leisure, transport.
- For internal use.
- In covering and protecting joins.
- As a transition between different floorcoverings, generally vinyl-to-carpet or vinyl-to-vinyl.
- To prevent worn and frayed edges from becoming a trip hazard.
- For use with resilient floorcoverings.
Description
Dementia friendly designed transition profiles. Available in a range of different colours and Light Reflectance Values (LRVs).
Manufacturer recommends this product to be specified with similar LRVs to the floorcovering.
Features and benefits:
- Helps to meet the Dementia Services Development Centre (DSCS) guidelines.
- Wide range of colours.
- Easy to fit.
- No screw holes (secret fix or adhesive).
- Third party certification: ISO 9001. ISO 14001.
General information
Color | Black Blue Red Grey Orange |
Material | PVC-U Guidance for specification option: Unplasticized polyvinyl chloride (PVC-U). |
Length | 3200 mm |
Width | 58 mm |
Warranty description | Ten year Guidance for specification option: On project application. |
Uniclass | |
CAWS | M50/70 Edgings and cover strips M50/740 Edgings and cover strips M51/510 Edgings and cover strips |
Product range |
Specification data - One-part floor transition strips
Profile | Flushed. |
Material | PVC-U.Guidance for specification option: Unplasticized polyvinyl chloride (PVC-U). |
Colour | 6 Black.6 Claret.10 Peat.10 Rustic.11 Dark Blue.11 Granite.11 Regency.11 Spruce.13 Poppy.15 Flint.16 Royal Blue.21 Fawn.26 Light Grey.30 Jade.33 Tangerine.49 Polar Grey.51 Ivory.52 Sky.53 Lime.56 Sun.67 Yellow.69 Photoluminescent.81 White. |

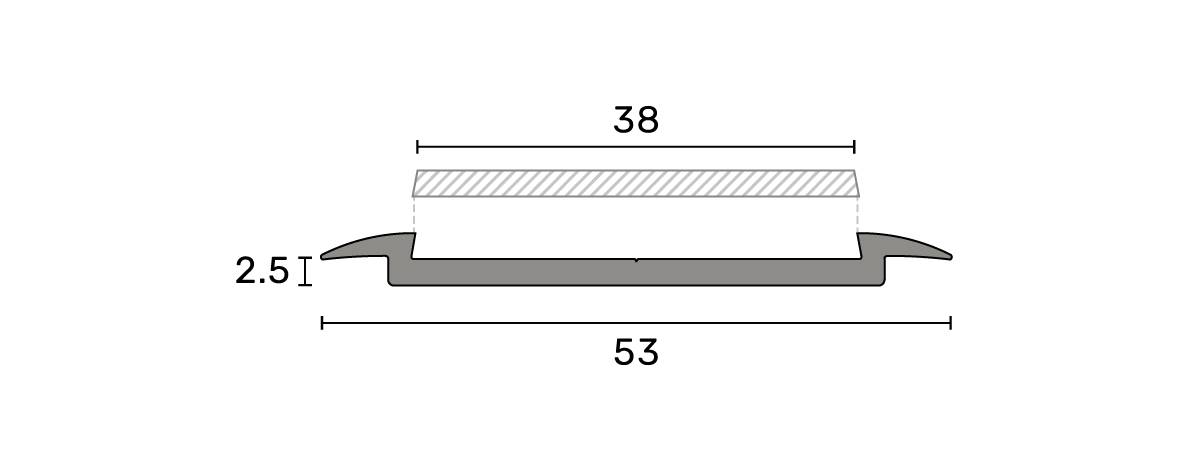

Size | 3200 x 58 mm.Guidance for specification option: Length x Width. |
Fixing | Adhesive only - Q-Fix. Mechanical - screws and adhesive. Guidance for specification option: Secret fix (beneath tread). Consult manufacturer for details. |
Gauge | 2.5 mm. |
Third-party certification | Groundworks Green Business Certificate. |
Channel transition | 2.5–2.5 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | PVC-U Guidance for specification option: Unplasticized polyvinyl chloride (PVC-U). |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Third party certifications
Literature
Education Environments Flooring Trims and Accessories Sector Guide
Healthcare Environments Flooring Trims and Accessories Sector Guides
Installation Guide & Detailing Data Sheet for Flooring Transitions
