FlowCon E-Just Adjustable Flow Automatic Balancing Valve

Verified by manufacturer 5 months ago

DN15: AB.15.B.I.x.x.E

FLOCONTROL LTD Variant:
Third party certifications:
  • Statement of compliance

    Certificate type

Adjustable flow automatic balancing valve.

Jump to:
+44 1282 564425 Website

Application

Flow balance valve applications. Heating and Cooling systems.

Description

The FlowCon E-JUST is an externally adjustable automatic flow insert, which is used to limit the flow rate in either heating or cooling installations to required design flows.


The lowest flow rates are covered by a complementary range of internally adjustable automatic flow inserts "Composite".


Features and benefits:

  • Pressure rating: 25 Bar.
  • Temperature rating: -20°C to +120°C.
  • Sizes: 1/2" - 2"
  • Body material: Forged brass ASTM CuZn40Pb2; DZR brass CW602N CUZn36Pb2AS.
  • Maximum operational ∆p: 400 kPaD.
  • Flow range: 0.0278-4.48 L/s (0.440-70.9 GPM).
  • Easy removable insert for flushing and easy exchange flow rate range.
  • Internally adjustable composite insert: 0.0081–1.43 L/s.
  • Externally adjustable E-Just insert: 0.0278–4.48 L/s.
  • 100% pressure independent - securing design flow automatically.
  • Maximum flow settings can be changed on demand.
  • Easy to install and maintain.

General information

Color

Gold

Finish

Brass

Material

Brass

Stainless steel

Rubber

Shape

Other

Length

81 mm

Width

36.14 mm

Height

108 mm

Warranty description

18 months

Manufacturer guidance

18 months.

Uniclass

Pr_65_54_95_22 Constant flow valvesPrimary

CAWS

S90/650 Flow-reducing/ servicing valves

S90/650 Flow reducing/ servicing valves

Product range

FlowCon Automatic Balancing Valves

Specification data - Constant flow valves

Pressure rating

25 Bar.

Temperature range

-20°C to +120°C.

Flow rate

0.0278-4.48 L/s.

Material

Body: Forged brass ASTM CuZn40Pb2; DZR brass CW602N CUZn36Pb2AS. Elastomers: EPDM.

Size

DN15.

Accessories

ACC0001.

Guidance for specification option:

Adjustment key.

ACC0080.

Guidance for specification option:

Flushing cap small (replaces 20 mm / 3/4" insert during flushing).

ACC0081.

Guidance for specification option:

Flushing cap medium (replaces 40 mm / 1 1/2" insert during flushing).

ACC0084.

Guidance for specification option:

Flushing cap large (replaces 50 mm / 2" insert during flushing).

Recycled content

70%.

NominalStaticPressure

2500 kPa.

Sustainability data

Country of product manufacture

Denmark

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

Statement of compliance

Statement of compliance

FlowCon Externally Adjustable E-Just ABV PED Certificate

Statement of compliance

Statement of compliance

FlowCon Internally Adjustable Composite ABV PED Certificate

Statement of compliance

Statement of compliance

FlowCon Registration, Evaluation, Authorisation and Restriction of Chemicals [REACH]

Literature

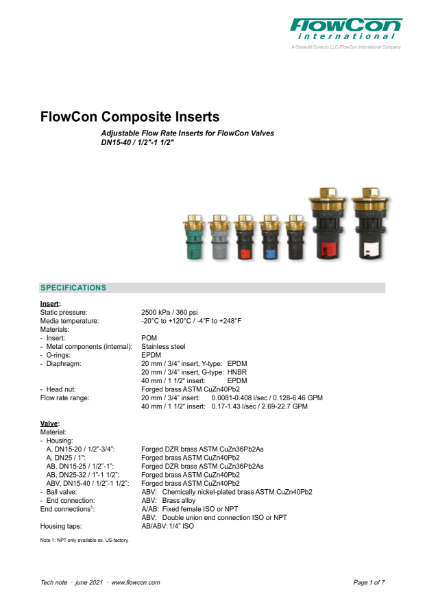

FlowCon Composite Inserts

FlowCon Composite Inserts

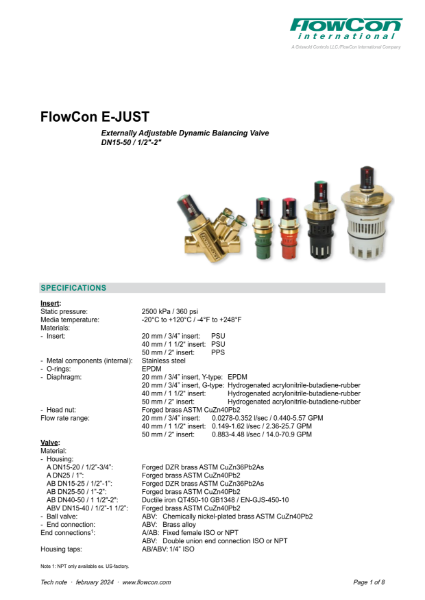

FlowCon E-Just Automatic Balancing Valve

FlowCon E-Just Automatic Balancing Valve

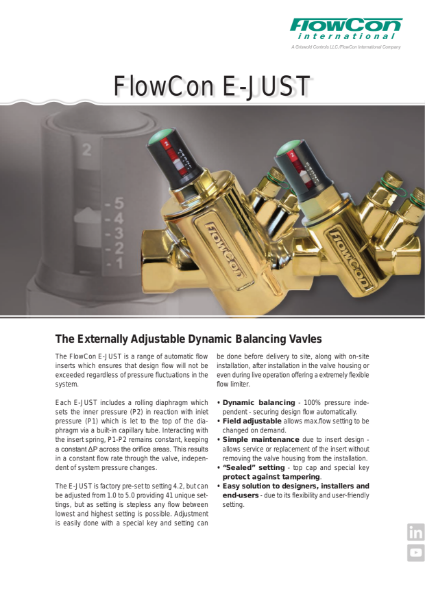

FlowCon E-Just - The Externally Adjustable Dynamic Balancing Valves
