FlowCon Green.0-2 Threaded PICV Range With Linear Control Characteristic

Verified by manufacturer 5 months ago

DN15

FLOCONTROL LTD Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • Statement of compliance

    Certificate type

Threaded PICV Range with Linear Control Characteristic.

Jump to:
+44 1282 564425 Website

Application

Heating or cooling, fan coil units, air-handling units and other terminal units - wherever dynamic balancing and fully accurate temperature control are required.

Description

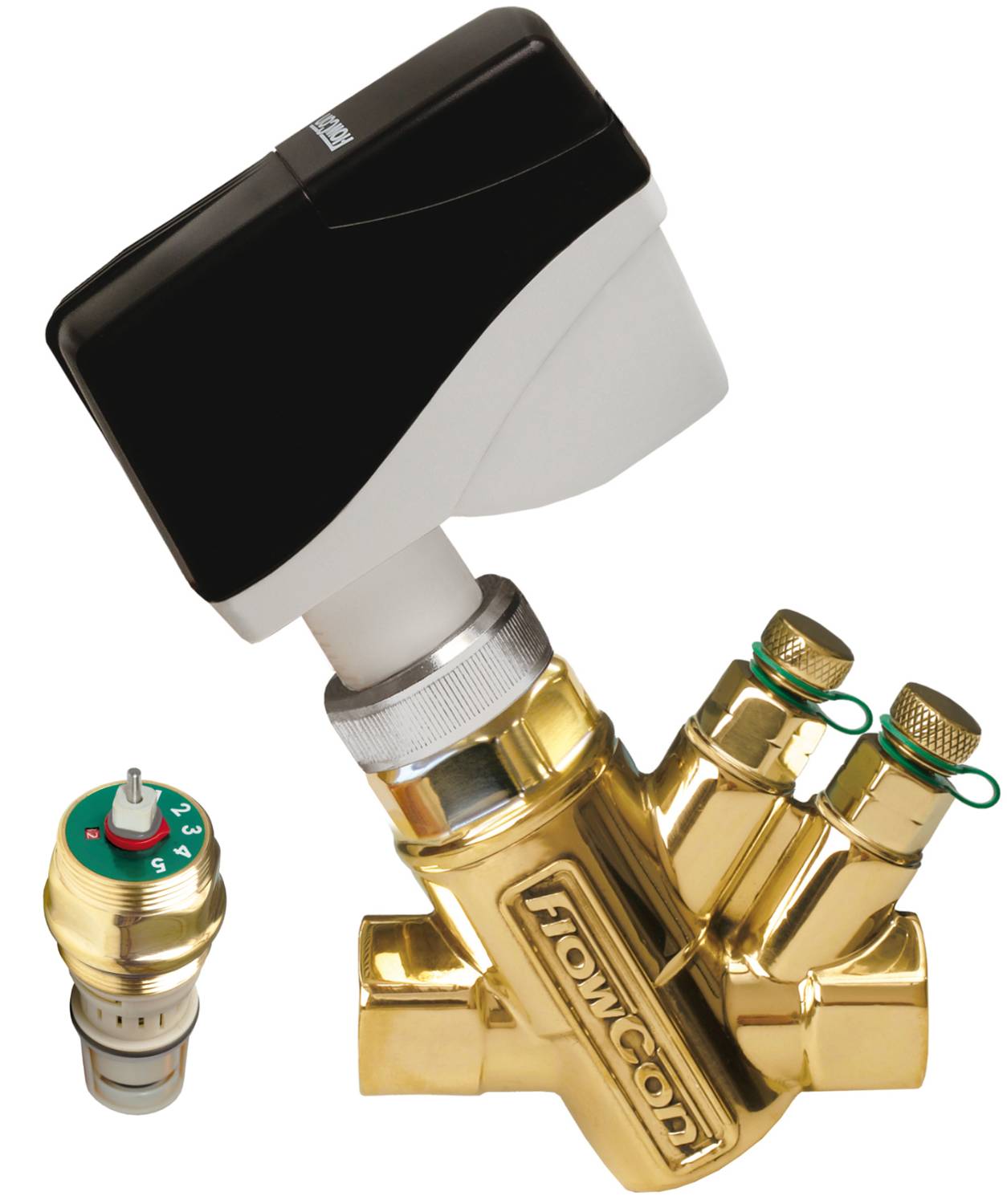

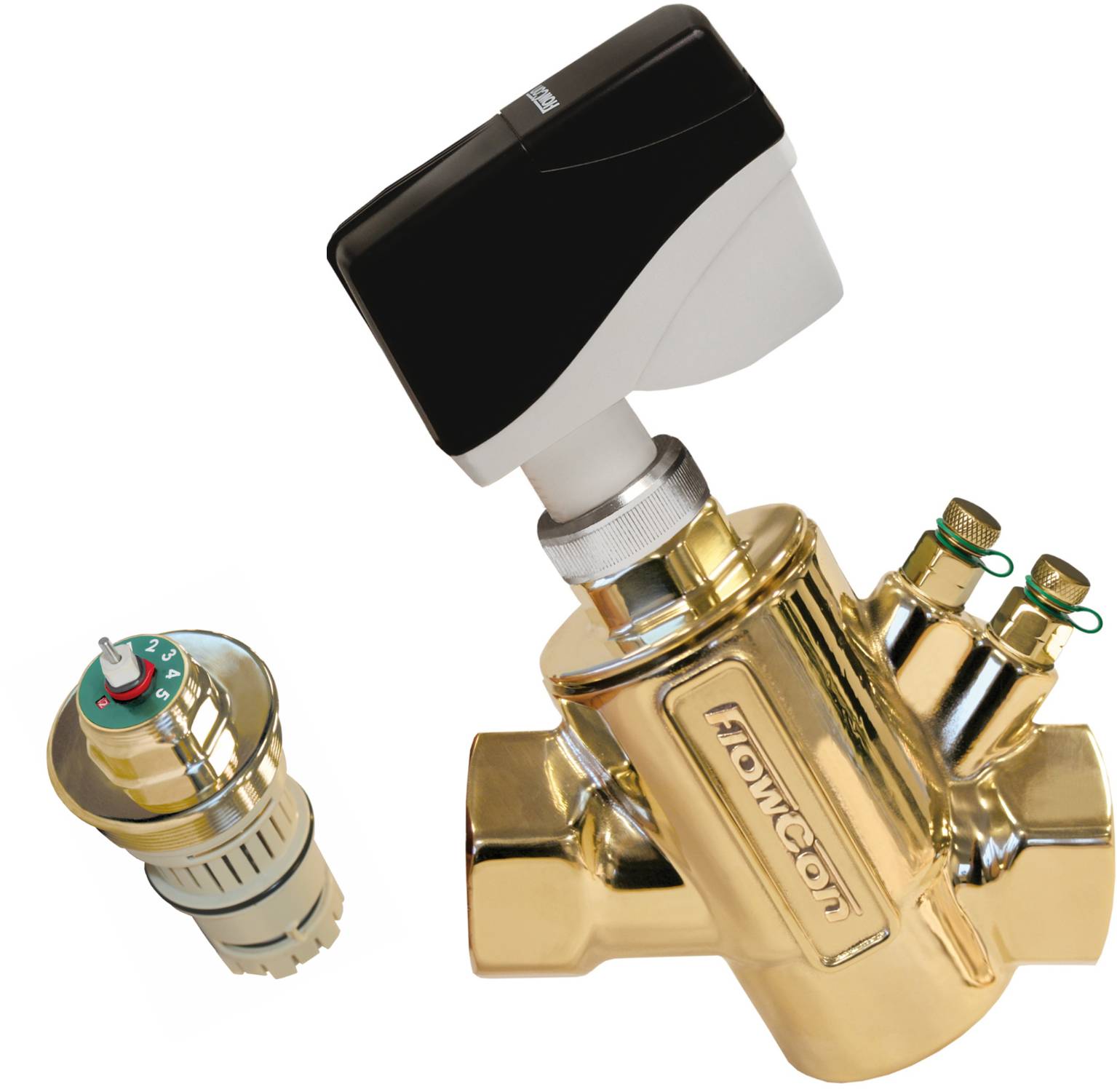

Two way modulating Pressure Independent Control Valve with easily removable insert. Widely used in the UK in FCU applications for over 12 years. A modular concept, comprising of a housing and a range of removable inserts, each covering a different flow rate range with 41 individual set points per insert, thereby guaranteeing the greatest possible accuracy. A wide choice of Thermal and Electric actuators, including feedback and failsafe options.


Features and benefits:

  • Pressure rating: 25 Bar.
  • Temperature rating: -20°C/120°C.
  • Sizes: 1/2″- 1 1/2″ Female threaded and union.
  • Flow rates 0.0103 – 1.290 L/s.
  • Body Materials: Forged Brass ASTM CuZn40Pb2 and DZR, Elastomers: EPDM.

General information

Color

Gold

Finish

Brass

Material

Brass

Warranty description

18 months

Uniclass

Pr_65_54_95_63 Pressure-independent control valvesPrimary

CAWS

S90/650 Flow reducing/ servicing valves

S90/650 Flow-reducing/ servicing valves

Product range

FlowCon PICVs

Specification data - Pressure-independent control valves

Pressure rating

25 Bar.

Temperature range

-20°C/120°C.

Material

Brass.

Actuator

FN.

Guidance for specification option:

Electrical actuators 0(2) - 10 V modulating, 3 point floating or 2-position

FT.

Guidance for specification option:

Thermal actuators 0-10 V modulating or ON/OFF.

Manufacturer guidance

Consult literature for details and insert requirements.

Accessories

FlowCon Insulation Shell.

Guidance for specification option:

Polypropylene foam shell. Class F to EN 13501. Consult literature for details and insert requirements.

Green.0 0.0103 – 0.160 l/s.

Green.1 0.0178 – 0.308 l/s.

Green.1HF 0.172 – 0.736 l/s.

Green.2 0.240 – 1.290 l/s.

Type:

G.1.22.03.B.FF.I.

Guidance for specification option:

Consult literature for product code and selections.

Valve size

1/2".

Guidance for specification option:

  • DN15.
  • Refer to manufacturer's literature for dimensions and model number selection and insert requirements.

Sustainability data

Country of product manufacture

Denmark

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

FlowCon FN/FH Actuator Range UKCA Certificate

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

FlowCon FNP Actuator UKCA Certificate

Statement of compliance

Statement of compliance

FlowCon Green PICV PED Certificate

Statement of compliance

Statement of compliance

FlowCon Registration, Evaluation, Authorisation and Restriction of Chemicals [REACH]

Statement of compliance

Statement of compliance

FlowCon Restriction of Hazardous Substances [RoHS]

Statement of compliance

Statement of compliance

FlowCon Waste from Electrical and Electronic Equipment Statement [WEEE]

Literature

FlowCon Medium Flow PICV

FlowCon Medium Flow PICV

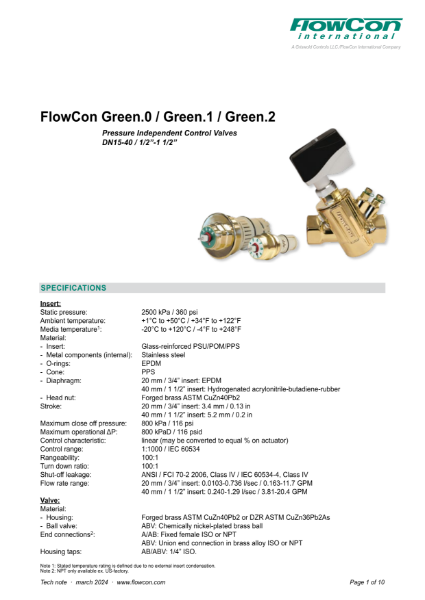

FlowCon Medium Flow Threaded PICV
