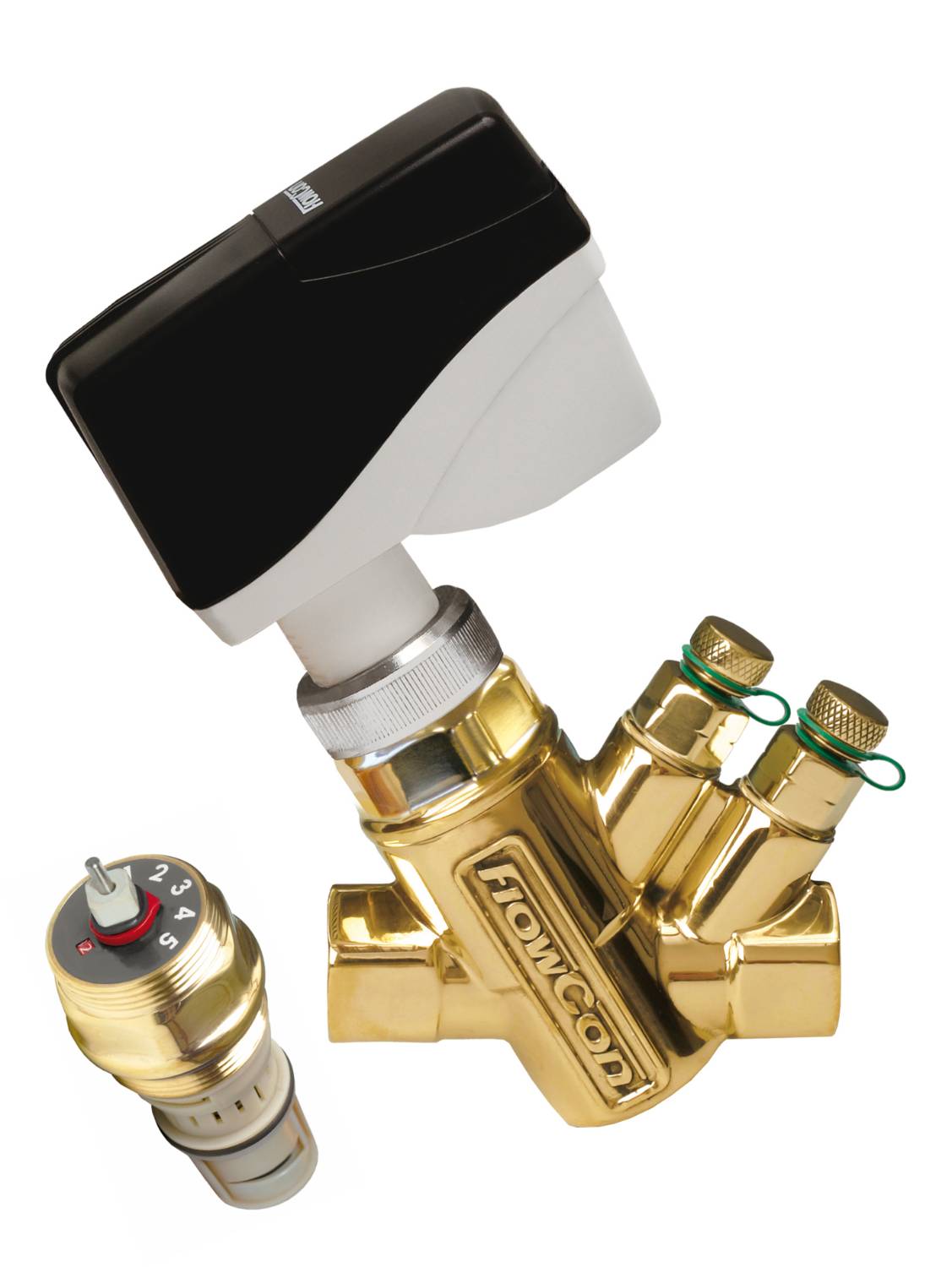

FlowCon GreEQ Threaded PICV Range With Equal Percentage Control Characteristic

Verified by manufacturer 5 months ago

DN15

FLOCONTROL LTD Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • Statement of compliance

    Certificate type

Threaded Low Flow PICV Range with Equal Percentage Control Characteristic.

Jump to:
+44 1282 564425 Website

Application

Heating or cooling, fan coil units, variable air volume system, cooling ceilings and other terminal units - wherever dynamic balancing and fully accurate temperature control are required.

Description

Two way modulating Pressure Independent Control Valve with easily removable insert. Widely used in UK in FCU installations in well insulated buildings that typically require low flow rates and valves that accurately control these low flow rates.

The GreEQ Low Flow PICV offers flow rates from 0.0048 L/s, with small steps between the set points and 11 set points under 0.02 L/s, delivering a fully controlled indoor climate and optimised energy use.


Features and benefits:

  • Pressure rating: 25 Bar
  • Temperature rating: -20°C/120°C
  • Sizes: 1/2″- 1 1/2″ Female threaded and union
  • Body Materials: Forged Brass DZR CuZn36Pb2As, Elastomers: EPDM.

General information

Color

Gold

Finish

Brass

Material

Brass

Shape

Other

Length

82 mm

Width

36.7 mm

Height

143 mm

Warranty description

18 months

Uniclass

Pr_65_54_95_63 Pressure-independent control valvesPrimary

Product range

FlowCon PICVs

Specification data - Pressure-independent control valves

Pressure rating

25 Bar.

Temperature range

-20°C/120°C.

Material

Brass.

Actuator

FN.

Guidance for specification option:

Electrical actuators 0(2) - 10 V modulating, 3 point floating or 2-position

FNR.

Guidance for specification option:

Electrical actuators 0-10 V modulating, 3 point floating or 2-position.

FT.

Guidance for specification option:

Thermal actuators 0-10 V modulating or ON/OFF.

Manufacturer guidance

Consult literature for details and insert requirements.

Accessories

GreEQ.0 0.00482 – 0.126 l/s.

GreEQ.1 0.00764 – 0.224 l/s.

FlowCon Insulation Shell.

Guidance for specification option:

Polypropylene foam shell. Class F to EN 13501. Consult literature for details and insert requirements.

Type:

GEQ.1.33.03.B.F.F.I.

Guidance for specification option:

Consult literature for product code and selections.

Valve size

1/2".

Guidance for specification option:

  • DN15.
  • Refer to manufacturer's literature for dimensions and model number selection and insert requirements.


Sustainability data

Country of material origin

Denmark

Country of product manufacture

Denmark

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

11.0 kg CO₂ eq/unit

Self declared

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

FlowCon FN/FH Actuator Range UKCA Certificate

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

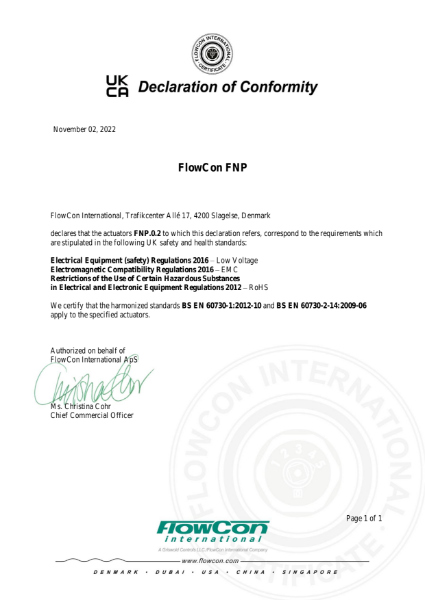

FlowCon FNP Actuator UKCA Certificate

Statement of compliance

Statement of compliance

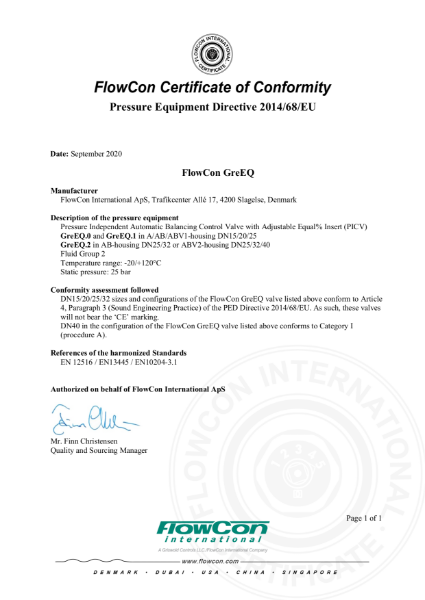

FlowCon GreEQ PICV PED Certificate

Statement of compliance

Statement of compliance

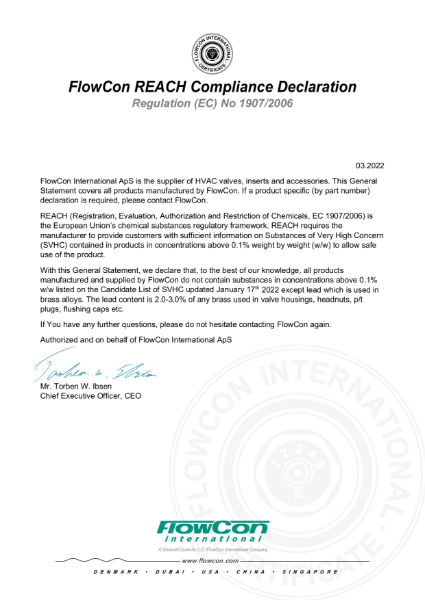

FlowCon Registration, Evaluation, Authorisation and Restriction of Chemicals [REACH]

Statement of compliance

Statement of compliance

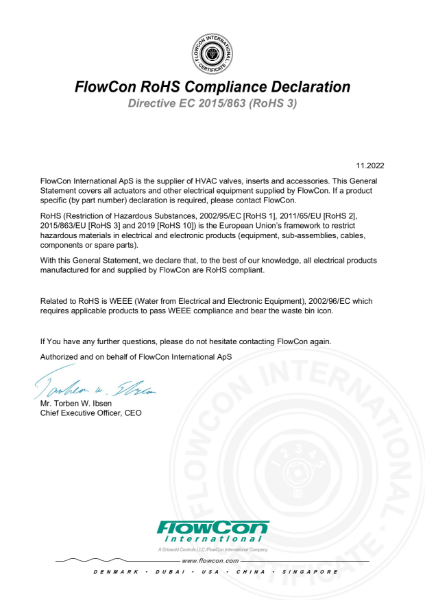

FlowCon Restriction of Hazardous Substances [RoHS]

Statement of compliance

Statement of compliance

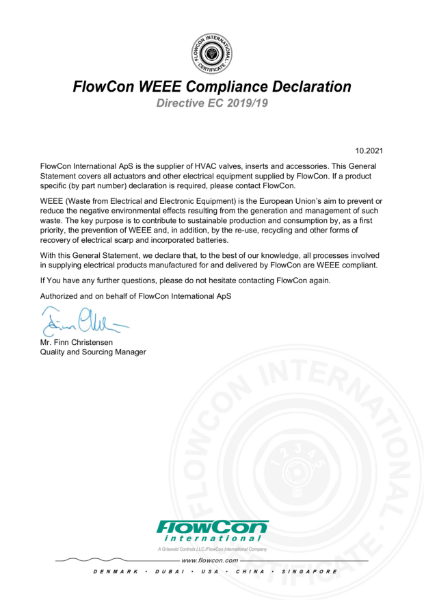

FlowCon Waste from Electrical and Electronic Equipment Statement [WEEE]

Literature

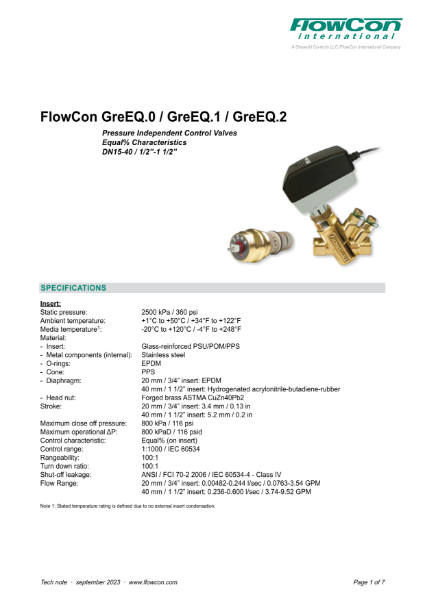

FlowCon Low Flow GreEQ PICV

FlowCon Low Flow GreEQ PICV

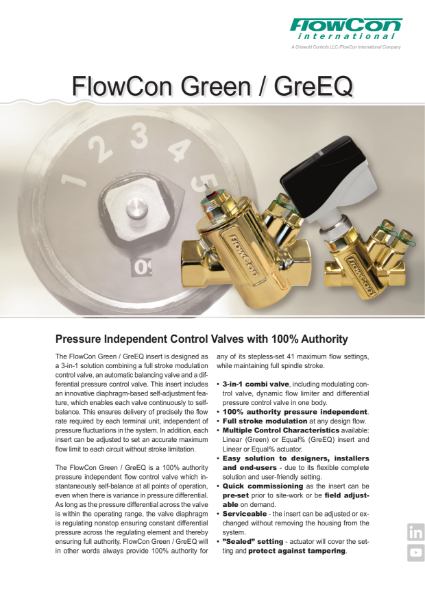

FlowCon Low Flow PICV Brochure

FlowCon Low Flow PICV Brochure

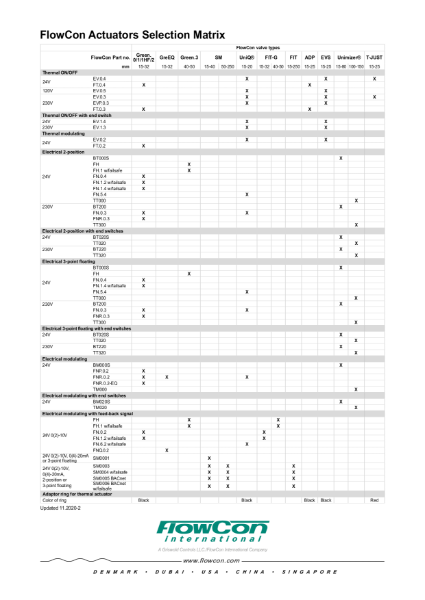

FlowCon Actuator Selection Matrix

FlowCon Actuator Selection Matrix
