FlowCon IVC Series FCH PN16 and PN25 Dual Plate Wafer Check Valves

Verified by manufacturer 5 months ago

FCH065C16DP210 - PN16, 65 mm

FLOCONTROL LTD Variant:
Third party certifications:
  • Statement of compliance

    Certificate type

Dual Plate Wafer Check Valves

Jump to:
BOS
+44 1282 564425 Website

Description

Dual plate wafer check valves.


Features and benefits:

  • Temperature range -10°C to 120°C
  • Sizes: 65 – 600 mm
  • Dimensions to DIN 3202 K3
  • EPDM Soft Seated
  • Stainless Steel Disc and Spring.


- Material:

PN 16:

  • DIN 65-300 Cast Iron Body
  • DIN 350-600 Ductile Iron Body

PN 25:

Ductile Iron Body


General information

Specification data - Cast iron check valves

Standard

The product has been inspected and tested in accordance with the European PED DirecƟ ve No 2014/68/EU, Anex III, Module H, dated 15/05/2014 and is CE marked.

Arrangement

-

Body ends

Wafer.

Temperature (maximum)

-10°C to 120°C.

Pressure rating

PN16.

Type:

-

Manufacturer guidance

Consult literature for details and insert requirements.

Diameter

129 mm.

Weight

2.3 kg.

Size (mm)

65 mm.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Statement of compliance

Statement of compliance

FIVC PED FCH Flanged Check Valve PN16

Statement of compliance

Statement of compliance

FIVC PED FCH Flanged Check Valve PN25

Literature

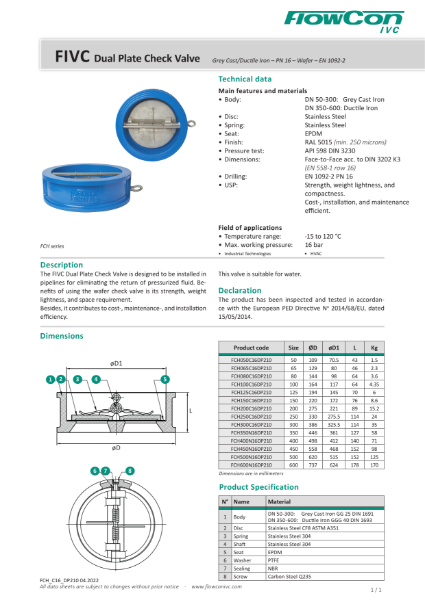

FlowCon IVC PN16 Dual Plate Check Valve

FlowCon IVC PN16 Dual Plate Check Valve

FlowCon IVC PN25 Dual Plate Check Valve

FlowCon IVC PN25 Dual Plate Check Valve
