FlowCon IVC Series FYS PN16 and PN25 Flanged Y Type Strainer

Name: FlowCon IVC Series FYS PN16 and PN25 Flanged Y Type Strainer
Brand: FLOCONTROL LTD
SKU: u5YsSVi95EeVHYP1gD9mYW

Verified by manufacturer 5 months ago

PN16 / DN 65

FLOCONTROL LTD

Third party certifications:

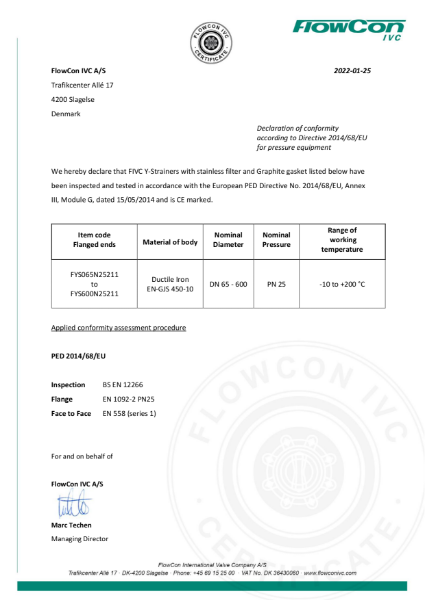

Statement of compliance
Certificate type

Flanged Y type strainer.

Jump to:

BOS

+44 1282 564425 Website

Application

FIVC Y-Strainer is designed to collect and prevent solid impurities from entering the pipeline that can cause malfunction and damage to the most sensitive plant components such as pumps, control valves, flow, and heat meters. The strainer holds solid particles, debris, which dimensions exceeds screen mesh. The collected debris can thereby be disposed and the filter can be cleaned without removing the strainer from the line. The valve can be used for Water, Oil, and Gas respectively.

Description

Flanged Y type strainer.

Features and benefits:

Maximum working pressure: 16 Bar
Temperature range: 0–150°C (DN 65-300) and 0–130°C (DN 350-600)
Sizes: 65 – 600 mm
Designed in accordance with EN 1092-2
Dimensions to ISO5752 DIN 3202 F1
Cast Iron Body & Cover
Stainless Steel Filter Basket
Complies with European PED Directive 97/23/EC dated 25/02/2000, CE marked.

The product has been inspected and tested in accordance with the European PED Directive No 2014/68/EU, Anex III, Module H/G, dated 15/05/2014 and is CE marked.

General information

Color	Blue Black
Material	Cast iron
Warranty description	18 months

Uniclass	Pr_65_57_96_99 Y-type water strainersPrimary

Product range	FloControl range of General Valves for hydronic systems in commercial buildings

Specification data - Y-type water strainers

Material	Cast Iron Body and Cover Stainless Steel Filter Basket.

WorkingPressure	16 Bar. 25 Bar.
TemperatureRange	-10 to 200 °C Guidance for specification option: 25 Bar 0–150°C Guidance for specification option: 16 Bar
