FlowCon Smart Actuator - FN.02-BUS BACnet or Modbus Actuator

Verified by manufacturer 5 months ago

DN15

FLOCONTROL LTD Variant:
Third party certifications:
  • UK Conformity Assessed (UKCA)

    UK Conformity Assessed (UKCA)

    Certificate type

  • Statement of compliance

    Certificate type

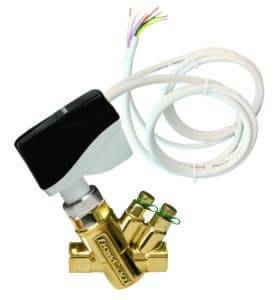

FlowCon smart actuator.

Jump to:
+44 1282 564425 Website

Application

Particularly suitable for energy efficient applications.

Description

Compatible with all threaded FlowCon PICVs. A compact Smart Energy Valve solution with Modbus or BACnet communication. Modbus offers real time data readings and remote set up via the BMS system whilst maintaining a compact size ideal for applications with space constraints. Selectable control strategies, e.g. delta T for optimal energy savings, ambient temperature for optimal occupant comfort or a combination of both to deliver optimal comfort at lowest possible energy consumption.


Features and benefits:

  • Supply Voltage 24V AC/DC ± 10%, 50/60Hz
  • Bi-directional synchronous motor
  • 2 cable groups, group 1 2x2 wires, group 2 4 wires. Standard cable length 1.5m, extended cable available upon request.
  • Fail safe.
  • Manual override with magnet.
  • Position indicator.
  • IP54 protection, including upside down, class III, indoor use only.
  • Detailed ModBus and BACnet description available in the Technical Data Sheet.

General information

Color

Black

White

Silver

Material

Brass

Guidance for specification option:

Body material, forged brass ASTM CuZn40Pb2 and DZR.


EPDM

Guidance for specification option:

Elastomers.

Shape

Other

Warranty description

18 months

Uniclass

Pr_75_50_02_54 Motor-driven valve actuatorsPrimary
Pr_65_54_95_63 Pressure-independent control valves

CAWS

S90/620 Valves generally

S90/650 Flow reducing/ servicing valves

S90/620 Valves generally

S90/650 Flow-reducing/ servicing valves

Product range

FlowCon Smart Energy Valves
FlowCon PICVs

Specification data - Motor-driven valve actuators

Standards

To BS EN 60730.

Actuator type

FlowCon FN.0.2-BUS.

Guidance for specification option:

  • With failsafe, manual override and position indicator, RTU slave.
  • Supply voltage: 24 V AC/DC ±10%, 50/60 Hz.

Manufacturer guidance

Consult manufacturer's literature for details.

Torque

High.

Stroke

9 mm.

Running time

22 s.

Electrical supply

24 V.

Valve size

½".

Guidance for specification option:

  • DN15.
  • Refer to manufacturer's literature for dimensions and model number selection and insert requirements.

Protocols

Modbus.

Guidance for specification option:

  • Transmission type: RTU slave.
  • Interface: EIA-485/ RS-485.
  • Baud rates supported: 9600, 19200, 38400, 57600 and 115200.
  • Start/ stop bits: 8N2 (standard).
  • Participants: Up to 32 recommended, 64 (maximum).
  • Load: 1/8 unit load.

BACnet.

Guidance for specification option:

  • Protocol: BACnet Master Slave/ Token passing (MS/ TP)
  • Interface: EIA-485/ RS-485/ MS/TP.
  • Baud rates supported: 9600, 19200, 38400, 57600 and 115200.
  • Services (BIBBS) supported: Consult literature.
  • Participants: Up to 32 recommended, 64 (maximum).
  • Load: 1/8 unit load.

Manufacturer guidance

Consult manufacturer's literature for details.

Accessories

GreEQ.0 - 0.00482–0.126 L/s.

GreEQ.1 - 0.00764–0.224 L/s.

Green.0 - 0.0103–0.160 L/s.

Guidance for specification option:

Grey O-ring.

Green.1 - 0.0178–0.308 L/s.

Guidance for specification option:

Black O-ring.

Green.1HF - 0.172–0.736 L/s.

Guidance for specification option:

Black O-ring.

Show more

Manufacturer guidance

Removable PICV inserts.

Consult manufacturer's literature for details and insert requirements.

PressureRating

25 bar.

TemperatureRange

-20–120°C.

Material

Forged brass ASTM CuZn40Pb2 and DZR (body material); EPDM (elastomers).

Connections

½"–1½" female threaded and union.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Third party certifications

UK Conformity Assessed (UKCA)

UK Conformity Assessed (UKCA)

FlowCon FN/FH Actuator Range UKCA Certificate

Statement of compliance

Statement of compliance

FlowCon Restriction of Hazardous Substances [RoHS]

Statement of compliance

Statement of compliance

FlowCon Waste from Electrical and Electronic Equipment Statement [WEEE]

Literature

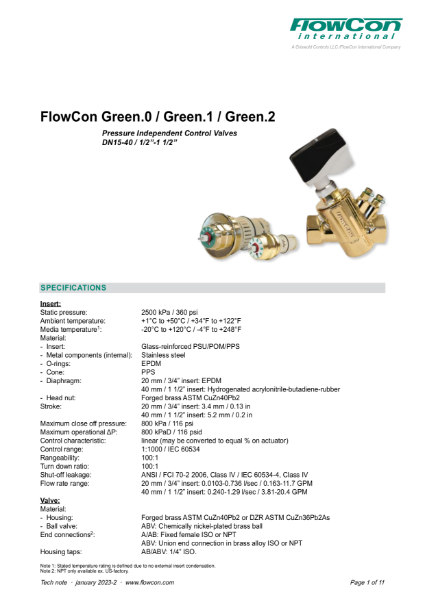

FlowCon Green.0/ Green.1/ Green.2 Pressure Independent Control Valves (DN15–40)
