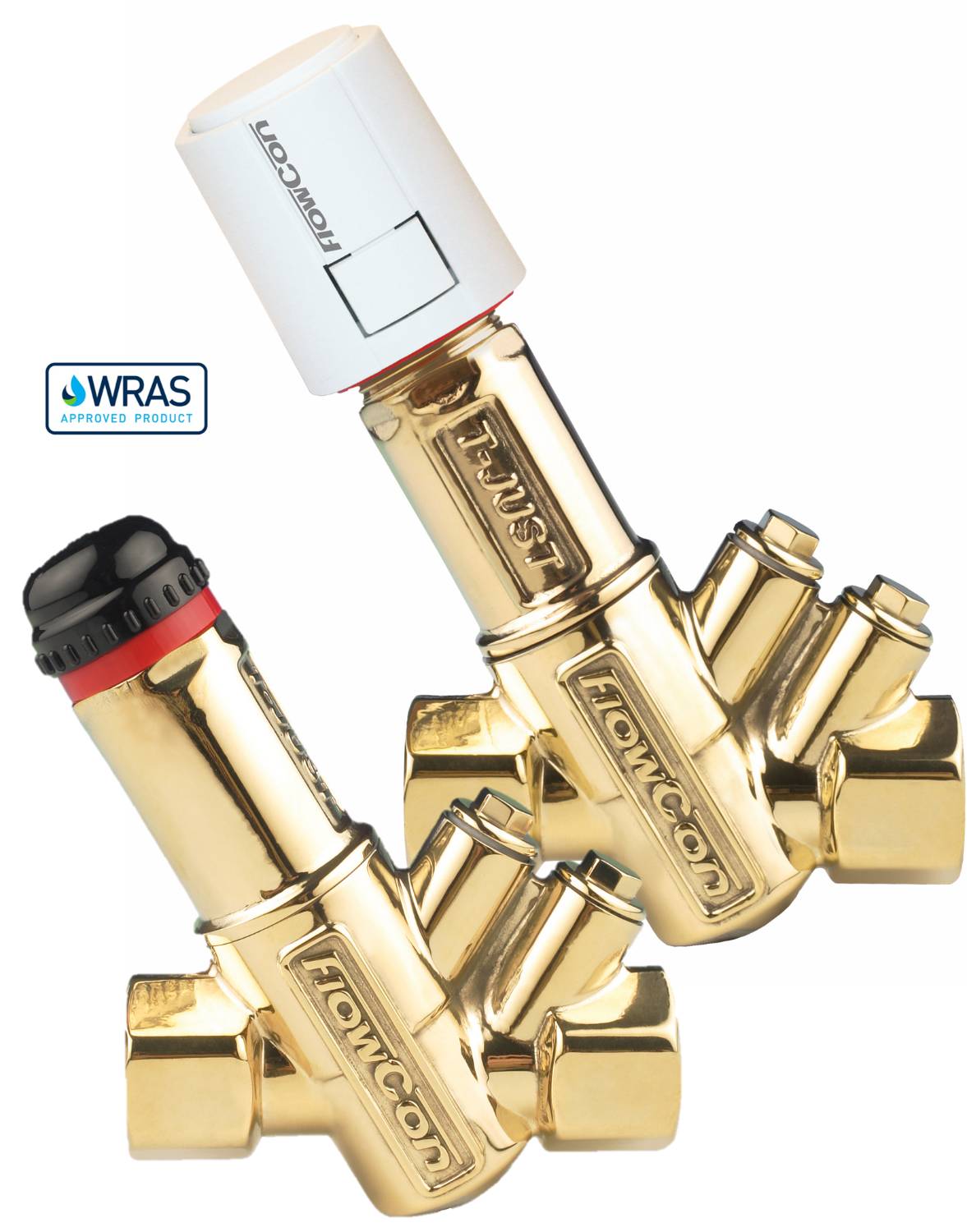

FlowCon T-JUST WRAS-Approved Thermal Balancing Valve
Verified by manufacturer 5 months ago
FlowCon T-JUST - AB DN15
FlowCon T-JUST - AB DN15

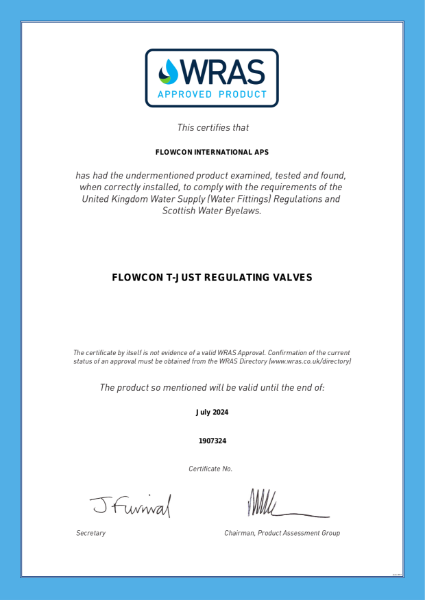

WRAS
Certificate type
Statement of compliance
Certificate type
WRAS-Approved Thermal Balancing Valve.
Application
Thermostatic valve for domestic water.
Description
For domestic hot water circulation installations we recommend the WRAS-approved Thermal Balancing Valve T-Just from FlowCon. The T-Just Thermal Balancing Valve controls the temperature of the water which circulates through the sub-circuit. Factory pre-set to +60°C the temperature can be adjusted between +35°C and +65°C. The Thermal Balancing Valve also includes a bypass feature, either manually operated or electrically actuated, to increase the water temperature to a maximum for a time to avoid bacterial problems. Designed to perform regularly thermal disinfection.
Features and benefits:
- WRAS-approved PN10 Thermal Balancing Valve.
- Sizes: 1/2″ – 1″ Female Threaded Connections.
- Temperature range: +35°C – 65°C.
- Material: Forged Brass.
- Manual By-Pass for high temperature purge.
- Actuated By-Pass option available.
General information
Color | Gold |
Finish | Brass |
Material | Brass Stainless steel Guidance for specification option: A DN20 ISO only. |
Shape | Other |
Length | 81 mm |
Width | 36.14 mm |
Height | 163 mm |
Warranty description | 18 months |
Uniclass | |
CAWS | S90/680 Thermostatic mixing valves S90/680 Thermostatic mixing valves |
Specification data - Thermostatic balancing valves
Accessories | Flushing cap ACC0080.Adjustment key ACC0001.Manual by-pass ring ACC0002.Replacement cap, black ACC0003. |
PressureRating | 1000 kPa/ 145 psi. |
TemperatureRange | Media temperature: 0–85°C. |
Connections | AB. Fixed female ISO. |
Actuator | FlowCon EV.0.3.R. Guidance for specification option: 230 V a.c. FlowCon EV.0.4.R. Guidance for specification option: 24 V a.c./ d.c. |
Material: | Forged brass. |
Sustainability data
Country of product manufacture | Denmark |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 70 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature

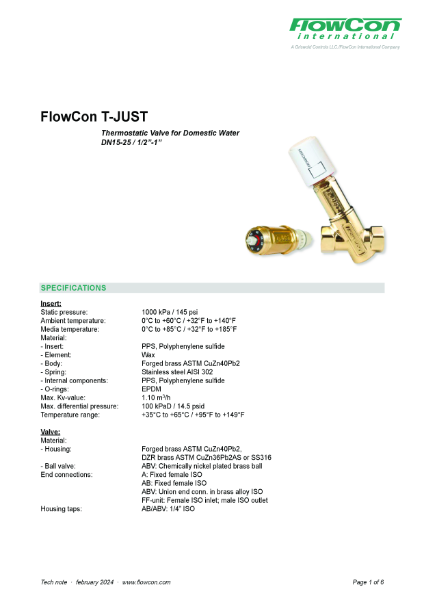

FlowCon T-Just

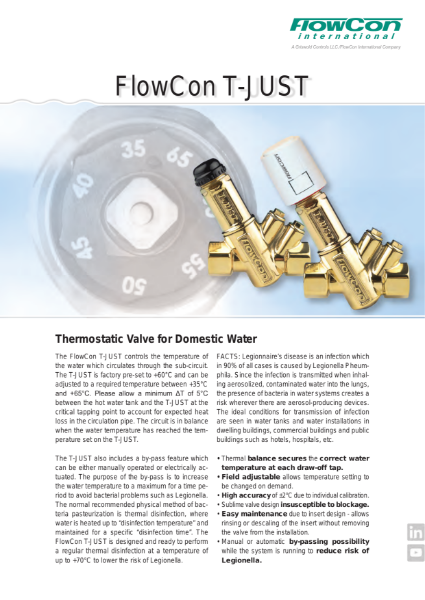

FlowCon T-Just Thermostatic Valve for Domestic Water
