FM463 / FM466 / FA463 Check Valve Wafer Pattern
Verified by manufacturer 10 days ago
FM463 DN50
FM463 DN50
An iron check valve with spring-assisted closure.
Application
- Suitable for use on Group 2 liquids only, as defined by the Pressure Equipment Directive 2014/68/EU.
- Suitable for installation in vertical and horizontal pipelines.
Description
An iron check valve with spring-assisted closure.
Features and benefits:
- Check valves permit flow in one direction only and close automatically if flow reverses, depending upon pressure and velocity of flow to perform the functions of the opening and closing.
- Non-Slam design as a result of rubber seat and spring-assisted closure.
- EPDM rubber seat to facilitate quiet operation and improve disk seating.
- Eyebolt tapped holes in sizes DN200 and above, to fit bolts to BS EN ISO 3226:2010 (eyebolts are not supplied with product).
- Design and construction lends itself to pump duty applications.
General information
Specification data - Irrigation check valves
Standard | To BS EN 1092-2, BS EN 558, BS EN 16767 and BS EN ISO 3226:2010. |
Pressure rating | PN16. |
Connections | Flanged.Manufacturer guidanceWhen installed in vertical pipelines the flow must be in an upward direction. |
Inlets/outlets diameter | 50 mm. |
Dimensions | 107 x 43 mm. Manufacturer guidanceRefer to technical datasheet for detailed dimensions. |
Weight | 1.5 kg. |
Materials | Cast iron BS EN 1561 GJL-250, Stainless steel type 304, Anodised aluminium, Ductile iron EN-GJS-400-15, EPDM and PTFE. Guidance for specification option: Body: Cast iron (DN50–DN150), Ductile iron (DN200–DN600); Disc, Stop bolt, Stem, Spring: Stainless steel; Seat, Gasket: EPDM; ID plate: Anodised aluminium; Washer: PTFE. |
PressureRange | Temperature: -10 to +120°C: 16 bar (FM463), 25 bar (FM466). Manufacturer guidanceFM469: -10 to +65°C: 16 bar. |
Flow capacity | 44 Kv. Manufacturer guidanceFlow coefficient Kv. |

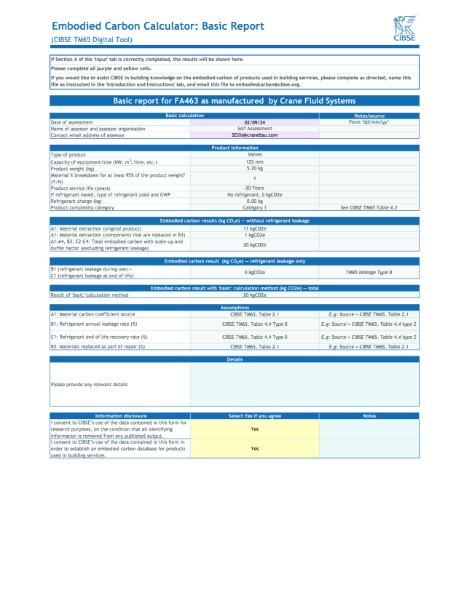

Sustainability data
Material | Cast iron |
Recyclability | Recyclable Guidance for specification option: Recycle locally, consult manufacturer for details. |
Expected Life | 20 year |
