Focus Dt - Modular Ceiling System
Verified by manufacturer 18 hours ago
600 x 600 mm
600 x 600 mm
Modular ceiling system with concealed grid and decorative aluminium profile between each panel.
Application
Suitable for healthcare, education, and office applications.
Description

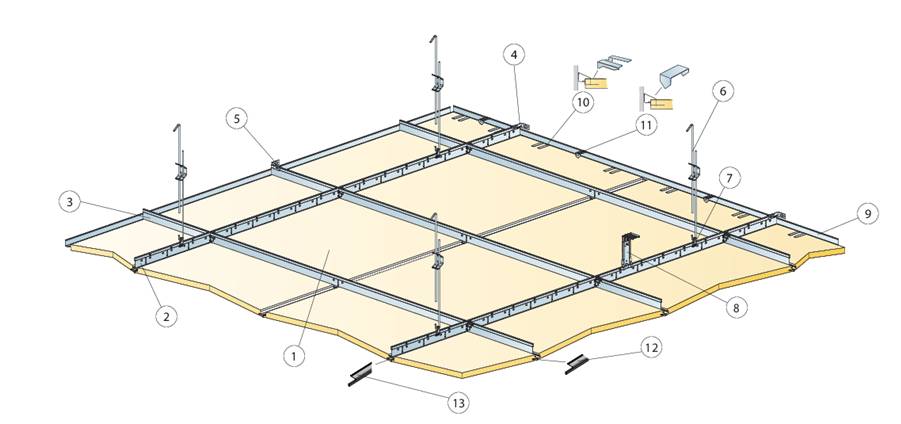

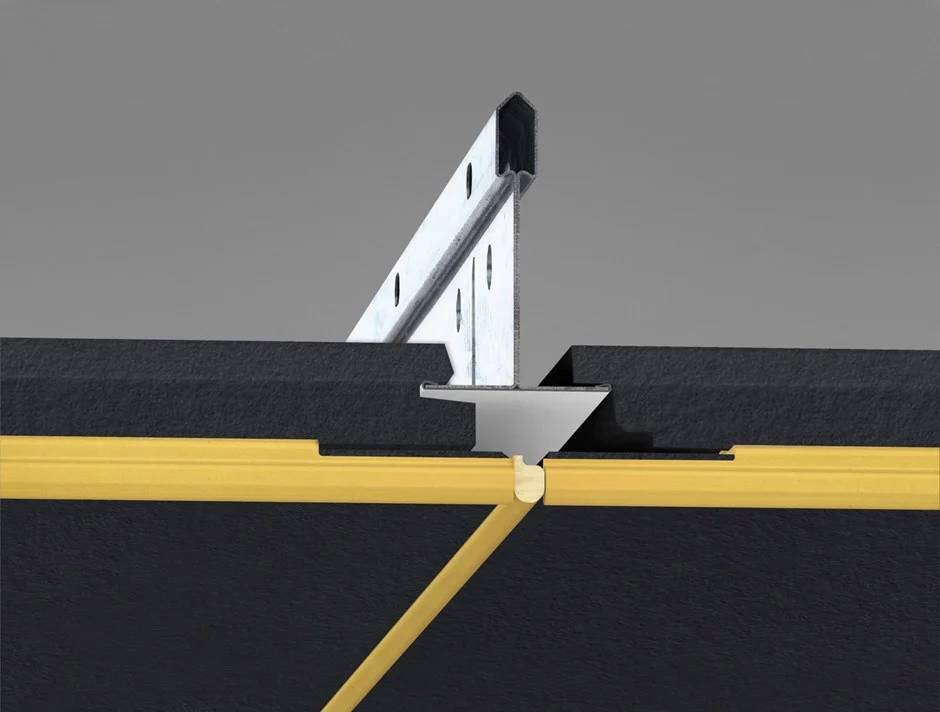

Ecophon Focus™ Dt has a concealed grid with a decorative aluminium profile between each panel. The system is modular, demountable and easy to install with the possibility to integrate light fittings and ventilation.
Features and benefits:
- Absorption class A.
- Primed edge with elegant trim design.
- Easy assembly.
- Easily demountable tiles.
- Tiles are available in a range of colours.
- Trim available in gold or aluminium.
- Cradle to Cradle Certified® at Bronze level.
General information
Color | White Blue Grey Orange Pink |
Material | Glass mineral wool Steel |
Shape | Square Rectangle |
Length | 600 mm 1200 mm |
Width | 600 mm |
Height | 20 mm Manufacturer guidancePanel thickness. |
Warranty description | Ten year |
Uniclass | |
CAWS | K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system |
Specification data - Modular suspended ceiling systems
Classification data | |
System manufacturer | Saint-Gobain Ecophon. |
Ceiling support | Connect grid system. |
Ceiling units | Focus Dt. |
Barriers in ceiling void | |
Fire barriers | Manufacturer guidanceInsert requirements or omit. |
Acoustic barriers | Manufacturer guidanceInsert requirements or omit. |
Plenum barriers | Manufacturer guidanceInsert requirements or omit. |
Installation | M673 – Suspended, single layer system. M674 – Suspended with space bar. |
Sound absorption | To EN ISO 354, Class A. |
Reaction to fire | To EN 13501-1, A2-s1,d0. |
Size (length x width) | 600 x 600 mm. |
Thickness (overall) | 20 mm. |
Weight | 3.3 kg/m². Guidance for specification option: Focus Dt plus Connect grid system. |
Surface finish | Akutex™ FT. |
Colour | White frost. Moonlight sky. Highland fog. Sunset heat. Ocean storm. Morning drizzle. Peach rose. Goji berry. Scallop shells. Fresh clover. Sage garden. Eucalyptus leaf. Summer forest. Golden field. Ruby rock. Wet sand. Silent steam. Dark diamond. Cloudy day. Volcanic ash. Silver stone. Silk slate. |
Core material | Glass wool. |
Constant humidity resistance | To EN 13964:2014, Class C, relative humidity 95% and 30°C. |
Indoor climate | Eurofins Indoor Air Comfort®: IAC Gold. French VOC: A+. |
Standard | CE marked according to the European harmonized standard EN 13964:2014. |
Profile colour | Gold. Aluminium. Manufacturer guidanceThe decorative aluminium profile between each panel. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Sweden |
Country of product manufacture | Sweden |
Manufacturing plant location | |
Material | Glass mineral wool Steel |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | |
Declared unit | 2,60 kg CO₂ eq/unit Self-declared |
Recyclability | Fully recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 54 % |
Expected Life | 50 year |
Literature

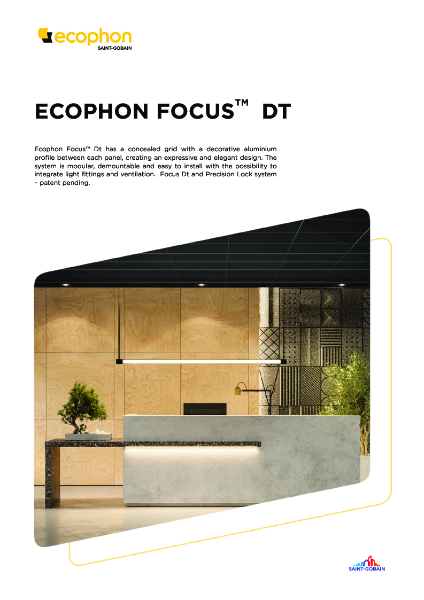

Data Sheet - Focus Dt
