Forbo Marmoleum® Ohmex - Linoleum sheet flooring

Verified by manufacturer 3 months ago

Forbo Flooring Systems Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

  • Certificate of Conformity

    Certificate type

Heavy-duty static dissipative sheet linoleum available in six colour options.

Jump to:
+44 (0)800 093 5258 Website

Application

  • Designed for use in a wide variety of ESD installations – electronic manufacturing, pharmaceutical applications etc.
  • Suitable for use where high voltage equipment, computers and sensitive electronic equipment are used.

Description

Static dissipative linoleum sheets available in six colours.


Features and benefits:

  • Electrical resistance is reduced to <1.10^8 ohm (EN 1081), ensuring personal safety and protecting products and equipment that are sensitive to static electricity.
  • Resistant to diluted acids, oils, fats and to conventional solvents. Not resistant to prolonged exposure to alkalis.
  • Complies with all the requirements of EN ISO 24011.
  • All Marmoleum is produced using 100% renewable electricity.
  • All Marmoleum site offcuts can be returned to Forbo for reprocessing using a 'Back to the Floor' initiative.
  • After Marmoleum’s long life, it can be incinerated for landfill, and this reclaims more energy that is used in production. It is also biodegradable in a controlled environment.
  • Marmoleum has natural bacteriostatic properties which are confirmed by independent laboratories, even against the bacteria MRSA.
  • Marmoleum is made of 97% natural materials, Marmoleum contains PEFC certified wood flour, Marmoleum is free of PVC, PET, synthetic rubber and plasticizers.


Primer:


  • Eurocol 041SC static conductive primer.
  • Application: Roller applied to base (including top surface of copper strips) at rate of 7 m²/L.


Adhesive:


  • Eurocol 615 Eurostar Lino EL solvent free very low-emission conductive adhesive.
  • Application: V-notched trowel.


Electrical grounding:


  • 10 mm-wide copper strip(s) fixed to base using Eurocol 512SC static conductive adhesive, not less than one strip for each 36 m² of floor area.
  • Link to ground connection(s) supplied by others.
  • Contact Forbo Flooring Systems for further details.

General information

Color

Blue

Black

Grey

Finish

Lacquered

Guidance for specification option:

Topshield.

Material

Linoleum

Shape

Rectangle

Length

3200 mm

Width

2000 mm

Height

2.5 mm

Warranty description

Ten year

Uniclass

Pr_35_57_71_46 Linoleum sheetsPrimary

CAWS

M50/150 Sheeting

M50/20 Sheeting

Product range

Marmoleum Linoleum Sheeting

Specification data - Linoleum sheets

Standard

To EN ISO 24011.

Use class

Class 34 / 43 .

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

To BS EN 13893: DS: ≥0.30, to DIN 51130: R9. PTV Dry >50.

Recycled content

43%.

Width

2000 mm.

Thickness

2.5 mm.

Colour and pattern

73032 mist Grey.

73038 Caribbean.

73055 Fresco Blue.

73048 Graphite.

73146 Serene grey.

72939 Black.

Residual indentation (to EN-ISO 24343-1)

0.08 mm.

Castor chair continuous use (to ISO 4918/EN 425)

Suitable for office chairs with castors.

Body voltage (to EN 1815)

≤2 kV.

Adhesive

Not required.

Eurocol 615 Eurostar Lino Plus.

Guidance for specification option:

 Very low emission conductive linoleum adhesive.

Reaction to fire (to BS EN 13501)

Cfl-s1.

Lightfastness (to ISO 105-B02)

≥6.

Thermal conductivity (to BS EN 12524)

0.17 W/m·K.

Electrical behaviour – static dissipative (to EN 1081)

1 - 106 < R1 < 1 - 108 Ω.

Indoor Air Emissions (to ISO 16516)

TVOC at 28 days: <0.05 mg/m³.

Edging

Not required.

As per 740.

Skirtings

Not required.

As per 770.

Stair nosings

Not required.

As per 750.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Material

Linoleum

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

6.03 kg CO₂ eq/m²

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

43 %

Third party certifications

Third party certifications

QA Certificate

QA Certificate

British Allergy Foundation: Seal of Approval for Marmoleum

EPD

EPD

Marmoleum Sheet Environmental Product Declaration

Certificate of Conformity

Certificate of Conformity

SA8000 Management System Certification Certificate

Literature

Forbo Product Portfolio 2022

Forbo Product Portfolio 2022

Forbo Marmoleum Marbled LRV and DSDC Accreditation Overview

Forbo Marmoleum Marbled LRV and DSDC Accreditation Overview

Forbo Adhesive Guide

Forbo Adhesive Guide

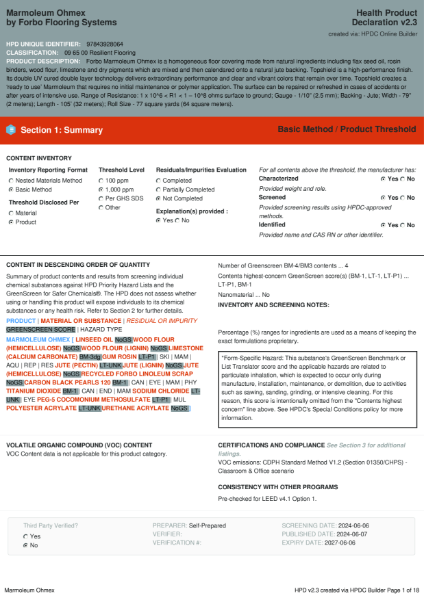

Marmoleum Ohmex HPD
