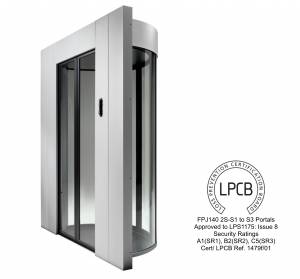

FPJ140 2S Security Portal

Verified by manufacturer 1 month ago

FPJ140 2S Security Portal 1865 x 1192-1992 x 2320 mm

Meesons A I Ltd Variant:
Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

A highly secure half portal interlocking door system with two automatic flat sliding doors.

Jump to:
+44 (0)1756 797727 Website

Application

  • Data centres
  • Offices
  • Financial
  • Healthcare
  • Research and development
  • Government
  • Local Government
  • Leisure
  • Jewellers
  • Prisons

Description

High Security anti-tailgating prevention:

The FPJ140 2S Security Portal is a highly secure half portal interlocking door system with two automatic flat sliding doors. The FPJ140 2S Security Portal can sit flat with an existing wall or door opening to create a flush wall installation. Its 900 mm wide door provides a spacious entrance whilst ensuring your secure area can only be accessed by authorized personnel.



Delivering on our Security Promise:

To ensure the FPJ140 2S half security portal delivers the required level of protection, the FPJ140 2S has been subjected to intensive third-party testing, withstanding a forced attack in accordance with LPS 1175: Issue 8 to Security Ratings A1 to C5, providing confidence and assurance that the FPJ140 2S security portal has proven levels of protection against physical attack.



Customizable Elements:

The FPJ140 2S security portal can be customized to suit project requirements, extendable glazed or metal infill panels ranging from 200 to 1000 mm in length can be used to increase the internal depth of the portal, improving user comfort and creating a greater space for wheelchair transits. The FPJ140 2S can also be provided with fire rated doors providing Resistance to fire for 60 minutes, integrity and insulation from both sides of the portal. Certified to EI60 as per the European Fire Resistance norm: EN 13501-2 and EN 1634-1: 2014.



Key features and benefits:

  • Automatic flat sliding doors create a secure entrance
  • Space saving half portal design
  • Customizable security levels – up to class 3 and 4 attack resistance
  • Approved to LPS 1175: Issue 8 A1(SR1), B3(SR2), C5(SR3)
  • Secured by Design accredited
  • Fire resistant version available



  • Security
  • Attack Rated to LPS 1175: Issue 8 A1
  • Attack Rated to LPS 1175: Issue 8 B3
  • Attack Rated to LPS 1175: Issue 8 C5
  • Secured by Design (SBD) accredited

General information

Color

Other

Guidance for specification option:

Any RAL finish. Sliding door frames RAL 9005.

Silver

Finish

Polished

Guidance for specification option:

Steel cladding.

Brushed

Guidance for specification option:

Steel cladding.

Powder-coated

Material

Steel

Glass

Guidance for specification option:

Vandal Resistant glass P2A-EN 356.

Vandal Resistant glass P4A-EN 356.

Vandal Resistant glass P6B-EN 356/ Bullet Resistant glass BR3-EN 1063.

Vandal Resistant glass P7B-EN 356/ Bullet Resistant glass BR4-EN 1063.

Shape

-

Manufacturer guidance

D Shaped, Half Portal.

Length

992 mm

1192 mm

Bespoke

Width

1865 mm

2030 mm

Height

2320 mm

2410 mm

Warranty description

One year

Guidance for specification option:

Standard Warranty - 12 months. Extended Warranty Available.

Uniclass

Pr_30_59_24_37 High-security doorsetsPrimary
Pr_30_59_24_80 Sliding door and partition sets

CAWS

L20/490 Automatic doors

L20/480 Doorsets

L20/55 Doorsets

Specification data - High-security doorsets

Third-party certification

Secured by Design and Loss Prevention Certification Board.

Security performance

To LPS 1175: Issue 8 A1(SR1), B3(SR2) and C5(SR3), FB2/NS EN 1522 (top canopy) and FB4/NS EN 1522 (metal structure).

Fire rating

Unrated.

Frame

Steel.

Glass

Bullet Resistant glass BR3 - EN 1063.

Bullet Resistant glass BR4 - EN 1063.

Vandal Resistant glass P4A - EN 356.

Vandal Resistant glass P6B - EN 356.

Vandal Resistant glass P7B - EN 356.

Emergency release

Emergency lever.

Emergency handle.

Emergency crank.

Control

Service mode keyswitch.

Multi-function control panel.

Finish/ Colour

Polished steel.

Brushed steel.

Aluminium, RAL pearl colours.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Manufacturer guidance

Cladding.

Safety features

Anti-slip floor mat.
Emergency unlocking device.
Fail secure.
IR safety sensors.
Internal LED light.
Fire alarm signal.

Depth

Guidance for specification option:

1192–1992 mm, insert requirements.

Length

Guidance for specification option:

992–1192 mm; insert requirements.

Sustainability data

Country of product manufacture

Italy

Material

Steel

Glass

Guidance for specification option:

Vandal Resistant glass P2A-EN 356.

Vandal Resistant glass P4A-EN 356.

Vandal Resistant glass P6B-EN 356/ Bullet Resistant glass BR3-EN 1063.

Vandal Resistant glass P7B-EN 356/ Bullet Resistant glass BR4-EN 1063.

BIM objects

Platform Compatible Version
Revit
-

1

Third party certifications

BRE Certificate

Meesons FPJ140 2S Security Portal LPS1175 Certificate

Literature

Meesons Half Portals Range Brochure

Meesons Half Portals Range Brochure

Case studies

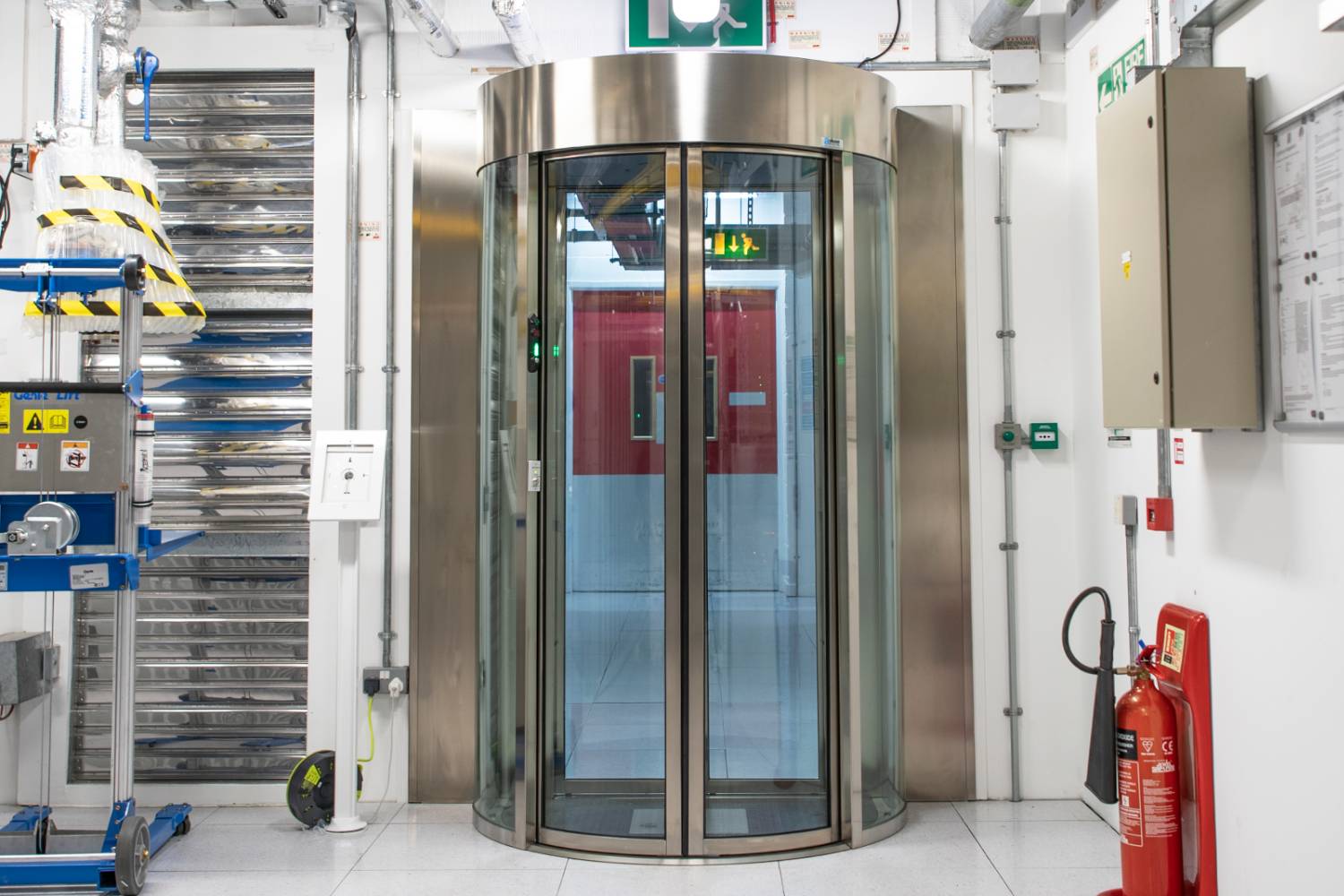

vXtream Data Centre, London
