Free-standing louvre - Contour® PL Pluto Screening Louvre

Name: Free-standing louvre - Contour® PL Pluto Screening Louvre
Brand: Maple Façades
SKU: 2d4M8rmvCexKXYVS3WfRYH

Verified by manufacturer 10 days ago

Maple Façades

Third party certifications:

Acclaim Accreditation
Certificate type
Achilles Information Limited - Procurement Management
Certificate type
CHAS
Certificate type
Constructionline Gold
Certificate type
Constructionline
Certificate type
FIRAS
Certificate type
ISO 45001 Health and Safety Management
Certificate type
ISO 9001 Quality Management
Certificate type
Alcumus SafeContractor
Certificate type

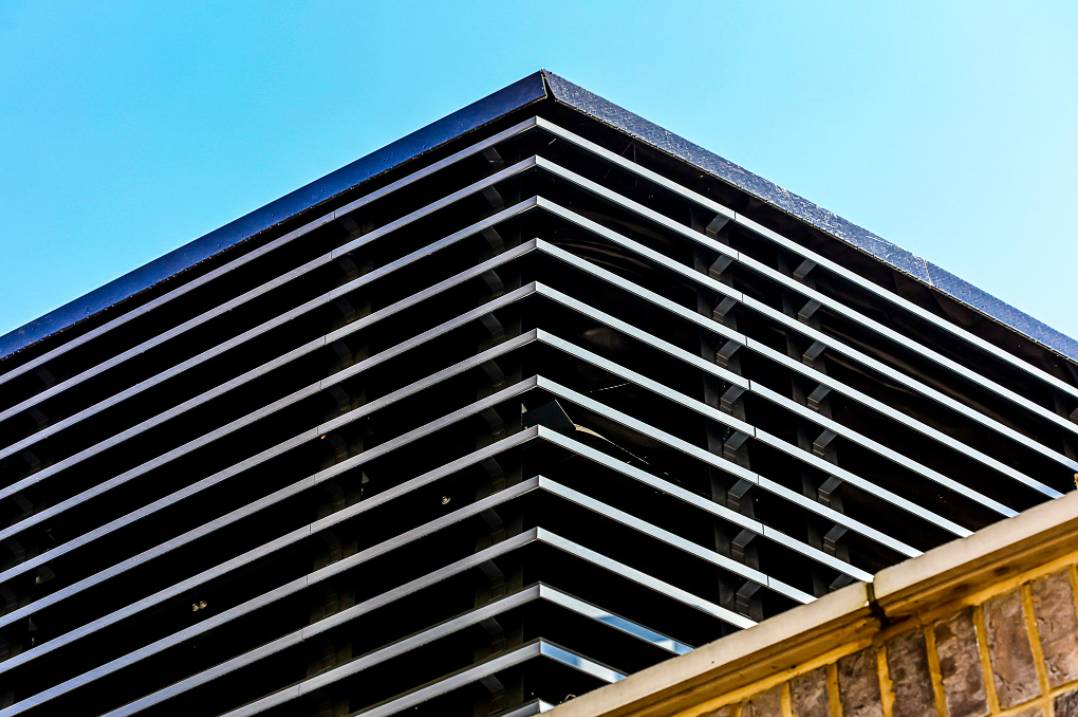

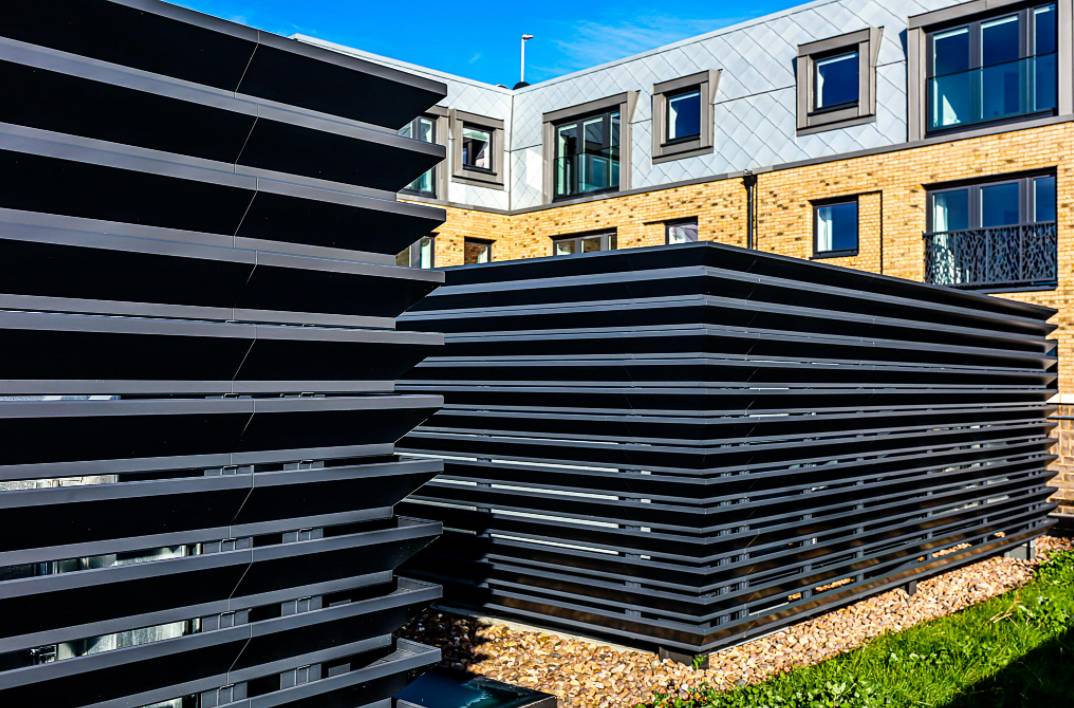

Pluto free-standing louvre system provides HVAC screening for rooftop locations with a sophisticated sub-structure that surpasses standard systems.

Jump to:

+44 (0)161 456 6644 Website

Application

Free-standing rooftop screening system.

Description

Lightweight and easy to install—crucial for rooftop locations—Pluto fixes directly to the building sub-frame. From the ground, it presents a sleek system of powder-coated or anodised aluminium louvres. However, behind the scenes, it features an advanced sub-structure with robust posts, mullions, and fixings.

Features and benefits:

Lightweight and easy to install – an important consideration for rooftop locations.
Fixes directly to the building sub-frame.
140 mm pitch louvres can be inverted to provide screening from the ground
Aluminium and steel provide strucutral integrity

General information

Color	Other Guidance for specification option: Available in RAL / BS colour from standard range. Beige Black Blue Bronze Yellow Grey Ivory Orange Gold Green Pink Purple Cream Silver Turquoise White Red Copper Brown Show more
Finish	Powder-coated Anodized
Material	Aluminium Guidance for specification option: Grade 6063 T6 extruded aluminium. Steel Guidance for specification option: Mild steel.
Shape	Formless Other
Length	3000 mm Manufacturer guidance Blade size.
Width	51 mm Manufacturer guidance Blade size.
Height	140 mm Manufacturer guidance Blade size.
Warranty description	20 year Guidance for specification option: Dependent on specified finish and project location, consult manufacturer.

Uniclass	Ss_25_50_45_45 Louvre screen systemsPrimary
CAWS	L10/54 Louvres L10/650 Metal louvres

Product range	Louvres

Specification data - Louvre screen systems

System performance	60.1% free area. Guidance for specification option: Consult manufacturer for details.
Screen framing	Aluminium louvre frames.
Louvres	-
Type	Aluminium louvre blades. Guidance for specification option: Grade 6063 T6 extruded aluminium.
Operation	Fixed.
Blanking panels	- Manufacturer guidance Consult manufacturer for guidance.
Acoustic panels	-
Facing	- Manufacturer guidance Consult manufacture for guidance.
Installation fasteners	Stainless steel, direct to building’s structural steelwork or concrete slabs. Guidance for specification option: Stainless steel A2 and A4.
System accessories	Not required. Louvre doors. Blanking panels. Insect mesh. Vermin mesh.

Type	Free-standing screening louvres.
Brackets	Aluminium 5083-H111. Guidance for specification option: Fixes mullions to aluminium posts.
Surface finish	Polyester powder-coated. Guidance for specification option: To 60 μm.
Louvre Blade Pitch	140 mm. Manufacturer guidance Louvre blades inverted to screen from lower levels.
Width	51 mm.
Length	3000 mm.
Base plate	Mild steel galvanized.
Posts	Mild steel galvanized.
Horizontal rail	Extruded Aluminium 6063 T6. Guidance for specification option: Finish: Polyester-powder coated 60 μm.
Mullions	Extruded Aluminium 6063 T6. F Guidance for specification option: Finish: Polyester-powder coated 60 μm. Manufacturer guidance Vertical.
Blade support clips	Extruded Aluminium 6063 T6. Guidance for specification option: Finish: Polyester-powder coated 60 μm.
Samples required	Consult manufacturer for any samples required.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Aluminium Guidance for specification option: Grade 6063 T6 extruded aluminium. Steel Guidance for specification option: Mild steel.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	95 %
Expected Life	80 year
