FSB 12 1735 WC Set (HUKP-0401-33) - Privacy indicator
Verified by manufacturer 6 months ago

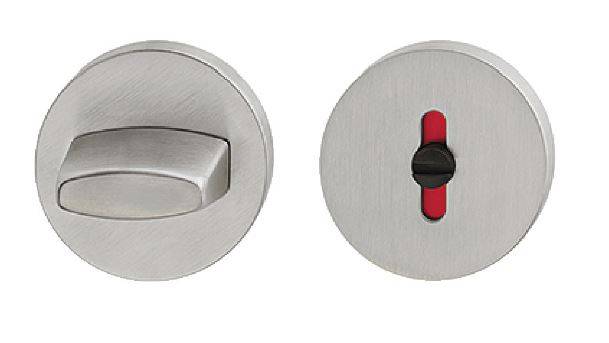

Stainless steel emergency release WC set
Application
- Suitable for water closets.
- Suitable for door thickness 39-58 mm.
Description
Stainless steel emergency release WC set with red/ white indicator.
Features and benefits:
- 55 mm diameter with 7 mm depth.
- Complete with bolt through fixings at 38 mm centres.
- Concealed fixing to suit doors from 39-58 mm thick.
- Available in matching materials for lever handles.
General information
Color | Silver Black Gold Grey Bronze Manufacturer guidanceRAL colours available on request. |
Finish | Satin Guidance for specification option: Stainless steel and anodized aluminium. Matt Guidance for specification option: Black. Polished Guidance for specification option: Stainless steel and brass. |
Material | Stainless steel Steel |
Shape | Circle |
Width | 55 mm Guidance for specification option: Diameter. Manufacturer guidanceSteel thickness 7 mm with bolt through fixings at 38 mm centres. |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/586 Privacy indicator bolts P21/36 Privacy indicator bolts |
Specification data - Door privacy indicator bolts
Material and finish | Stainless steel, grade 1.4301 (304). |
Colour | Satin stainless steel.Light bronze.Guidance for specification option: Aluminium shot-blasted finish. Matt black.Guidance for specification option: Aluminium shot-blasted finish. Polished stainless steel.Medium bronze.Guidance for specification option: Aluminium shot-blasted finish. RAL colour.Satin anodized aluminium.Dark bronze.Guidance for specification option: Aluminium shot-blasted finish. Polished brass.Light patinated.Guidance for specification option: Real bronze. Dark oxidized.Guidance for specification option: Real bronze. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidanceAluminium 4.72, Stainless Steel 4.03 |
Recyclability | Yes |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceAluminium 11 %, Stainless Steel 40 %, Bronze 97 % |
Literature
2. Project - Architectural Door Furniture
