Full-Height Security Turnstiles

Verified by manufacturer 16 days ago

Maxima MB-T 630

Record U.K. Limited Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • Achilles Information Limited - Procurement Management

    Achilles Information Limited - Procurement Management

    Certificate type

  • ADSA

    ADSA

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

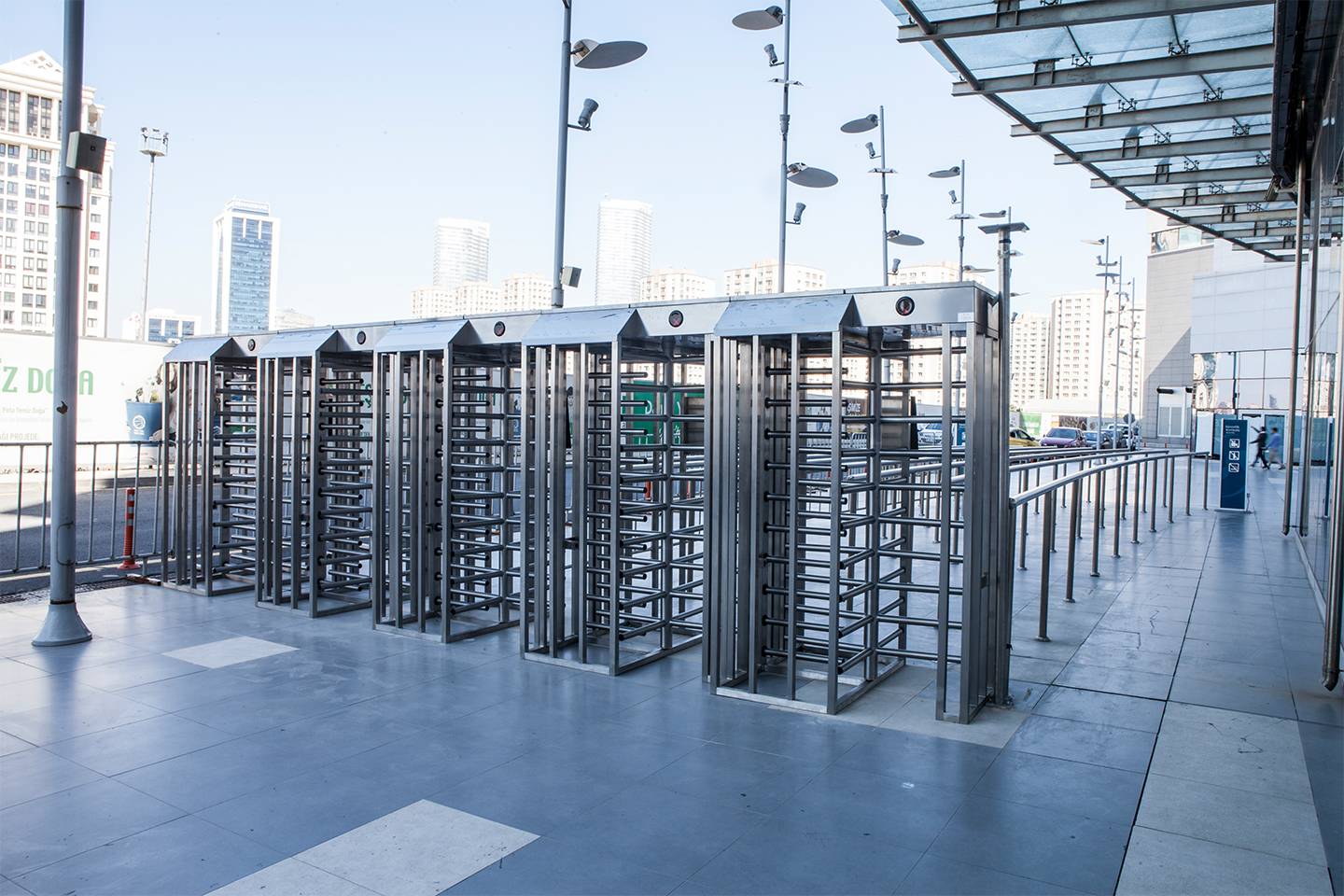

Record full-height security turnstiles offer robust and reliable secure access to public areas such as stadiums, retail outlets and airports.

Jump to:
+44 (0)1698 376411 Website

Application

Suitable for advanced security in heavy traffics areas such as:

  • Construction sites.
  • Stadiums.
  • Government buildings.
  • Public transport areas.
  • Retail outlets.
  • Airports.

Description

Robust turnstiles for heavy traffic use with stainless steel arms.


Bi-directional, logic controlled, LED indicators included on both entrance and exit sides. Hand-operated; hand operated with drop arm; motor driven with drop arm options available.


Perfect for almost any environment, Record Full Height Turnstiles can function in extreme weather conditions such as the cold or strong rain.


Record Security Turnstiles ensure secure access to safeguarded indoor and outdoor areas against unauthorised access by controlling pedestrian flow to provide safe access for all.


With a range of security features Record Security Turnstiles restrict access whilst ensuring safe passage for pedestrians and staff in the case of emergencies with fail-safe features and security system compatibility.


Features and benefits:

  • Stainless steel housing.
  • Stainless steel lid and arms.
  • Cast and machined aluminium tripod hub.
  • CE marked.
  • Mean time to repair (MTTR): <30 minutes.


Security Features:

  • Leave aisle timeout
  • Anti-crawling barrier
  • Anti-pass back barrier
  • Anti-reverse rotation during transit
  • Self-centering to reset position
  • Action lock preventing two passengers at once


General information

Color

Silver

Grey

Other

Beige

Black

Show more

Finish

Powder-coated

Other

Galvanized

Material

Stainless steel

Aluminium

Shape

Other

Length

1050 mm

1200 mm

Width

250 mm

Height

1000 mm

Warranty description

Five year

Uniclass

Pr_30_59_34_78 Stainless steel full-height turnstilesPrimary

CAWS

Q50/160 Turnstile

Specification data - Stainless steel full-height turnstiles

Rotation

Bidirectional.

Unidirectional.

Control unit

Required.

Leaves and surrounds

Door leaf cross 120° with 13 rod-shaped crossbars each plastic caps on each section of the rotor made of steel ⌀ 51 mm.

Finish

Powder-coated.

Weight

390 kg.

Passage width

630 mm.

Voltage

24 V d.c.

Manufacturer guidance

Logic

MeanTimeBetweenFailure

Ten million cycles.

Guidance for specification option:

Mean cycle between failure (MCBF).

Casework

Galvanized.

Galvanized and Powder-coated.

AISI 304 Stainless steel.

AISI 316 Stainless steel.

Stainless steel rotor and powder coated frame.

Ingress protection (IP) rating

Cabinet: IP54; Logic Controller: IP65.

Operating temperature range

-20 to +70°C.

Power supply

100–240 V a.c., 50/60 Hz.

Interfaces

Logic-controlled interface, bi-directional operation.

Guidance for specification option:

  • Entrance and exit directions can be individually set as controlled locked, or free before or after installation.
  • In controlled access mode, after a release signal is received from the access control system, the turnstile unlocks in the released direction and enables one person access in the direction of travel.
  • After each person, the turnstile rotor blocks passage again and does not permit access from either entrance or exit directions until receiving a new release signal from the access control system.
  • After release, the turnstile resets itself after a pre-defined time if no transition or passage occurs.
  • If people from both directions would like to pass through simultaneously, the first person who activates the turnstile takes precedence.
  • Multiple opening: An additional person is able to release the next passage cycle during an ongoing passage cycle in both directions. The turnstile controller stores up to 255 releases and lets a corresponding number of individuals pass through.
  • Relay outputs for counting passages in either direction.
  • RS 232 serial port.
  • Control for inputs and outputs via a volt-free contact.

Standby power

12 W.

Integral accessories

ID Reader mounting plate.

Access Controller Box.

Ceiling lights.

LED indicators.

Heating kit for -40°.

Show more

ReleaseTime

5, 10, 15 and 20 seconds.

Diameter

51 mm.

Manufacturer guidance

of arms:

LED pictograms

Option–1.

Guidance for specification option:

Green: Standby or locked.

Red: Released or free passage.

Option–2.

Guidance for specification option:

Green: Released or free passage.

Red: Standby or locked.

Manufacturer guidance

LED lights indicates the operating status of the turnstile in both directions.

Mode

Controlled, Free; Locked.

Guidance for specification option:

Entrance and exit directions can be individually set as controlled, locked, or free before or after installation.

Drive operation

Electromechanical/ Manual.

Guidance for specification option:

In Standard Electromechanical Operation:

  • A self-centering mechanism to ensure complete rotation of the mechanism to the home position.
  • A hydraulic damper to ensure smooth operation.
  • Anti-backup device to prevent reverse rotation once the mechanism has moved 30 degrees from the home position.
  • Fail-safe operation as standard. (Optional fail-locked).


BLDC Motor-driven.

Certification

CE marked and TÜV certified.

ProductDescription

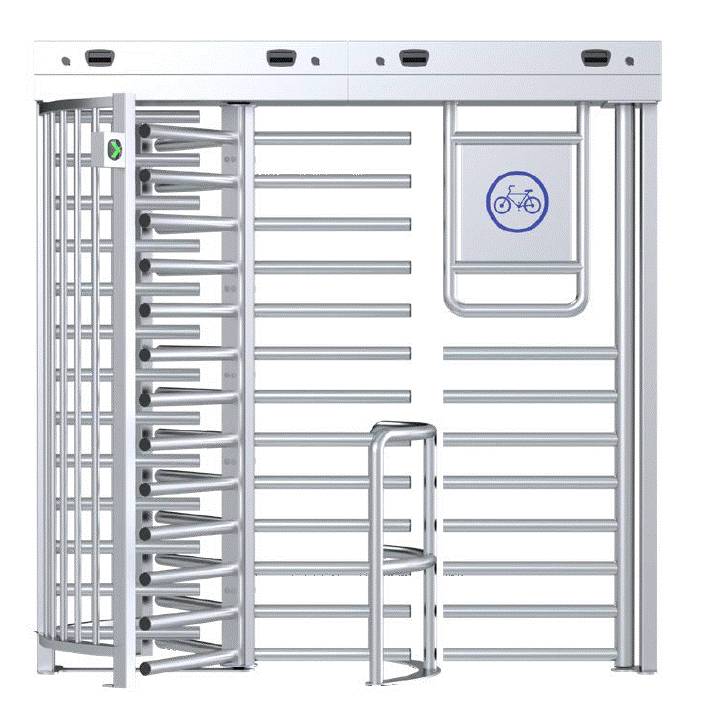

The extremely robust and water-repellent turnstile with bicycle door for controlled access.

The FT 600 combines controlled access for people with a separate passage for bicycles.

Depending on the access control system, e.g. card reader or hand switch, the turnstile enables passage to the site. When the built-in induction loop detects a bicycle at the same time, the passage way automatically opens for the bicycle and the person can pass through the entrance with their bicycle.

The bicycle door closes again after a set time.

Sustainability data

Country of product manufacture

Turkey
