FUSION P2P | Perimeter Intrusion Detection System (PIDS) - Security Detector And Control Unit
Verified by manufacturer 13 days ago
Outdoor perimeter security with DEA Sensor Fusion (DSF) dual-tech detection technology.
Application
Suitable for low to high security fencing intruder detection applications.
Description
FUSION P2P senses and analyses vibrations and movements on a fence during intrusion attempts, such as cutting (even with hacksaws or angle grinders), breaking through, or climbing. It effectively discriminates against noises that could trigger false alarms, ensuring precise and reliable detection.
The system employs two distinct sensitive elements: a piezoelectric transducer and a MEMS accelerometer. The data from these sources are processed and analysed using adaptive intelligence algorithms, which can accurately recognize intrusion attempts while filtering out environmental and climatic noise.
Features and benefits:
- DEA sensor fusion technology.
- Maximum environmental immunity.
- Structure type pre-sets.
- IP native support.
- Adaptive intelligence.
- Redundancy support.
- Self-test on each sensor.
- Professional easy-plug connectors.
- Anti-tamper and anti-removal.
- Smart automatic sorting.
- General and individual calibrations.
- Factory wired sensors.
General information
Color | Black |
Material | Steel Polyester |
Shape | Rectangle Circle |
Length | 1500000 mm 900000 mm Bespoke |
Uniclass | |
CAWS | W90/425 Dual technology detectors W90/380 Intrusion and hold-up alarm control panels Q40/28 Open mesh steel panel security fencing Q40/126 Open mesh steel panel security fencing Q40/160 Electric security fencing |
Specification data - Intrusion and hold-up alarm systems
Control and indicating equipment (CIE) | Control unit (CU-FSP2P).Guidance for specification option: The control unit manages up to 300 detectors on 2 communication buses for 1500 m of perimeter if the spacing between the sensors is 5 m and for 900 m if the spacing is 3 m. Besides enabling the configuration of the detectors by means of the related service software, the control unit automatically recognizes and sorts the field detectors and raises the alarm signals. Control board lite (BR-FSP2PLT-CTRL).Guidance for specification option: This board manages up to 100 sensors on a single communication bus. It has all the main features and functionalities of the Standard Controller (the one included in the Control Unit). |

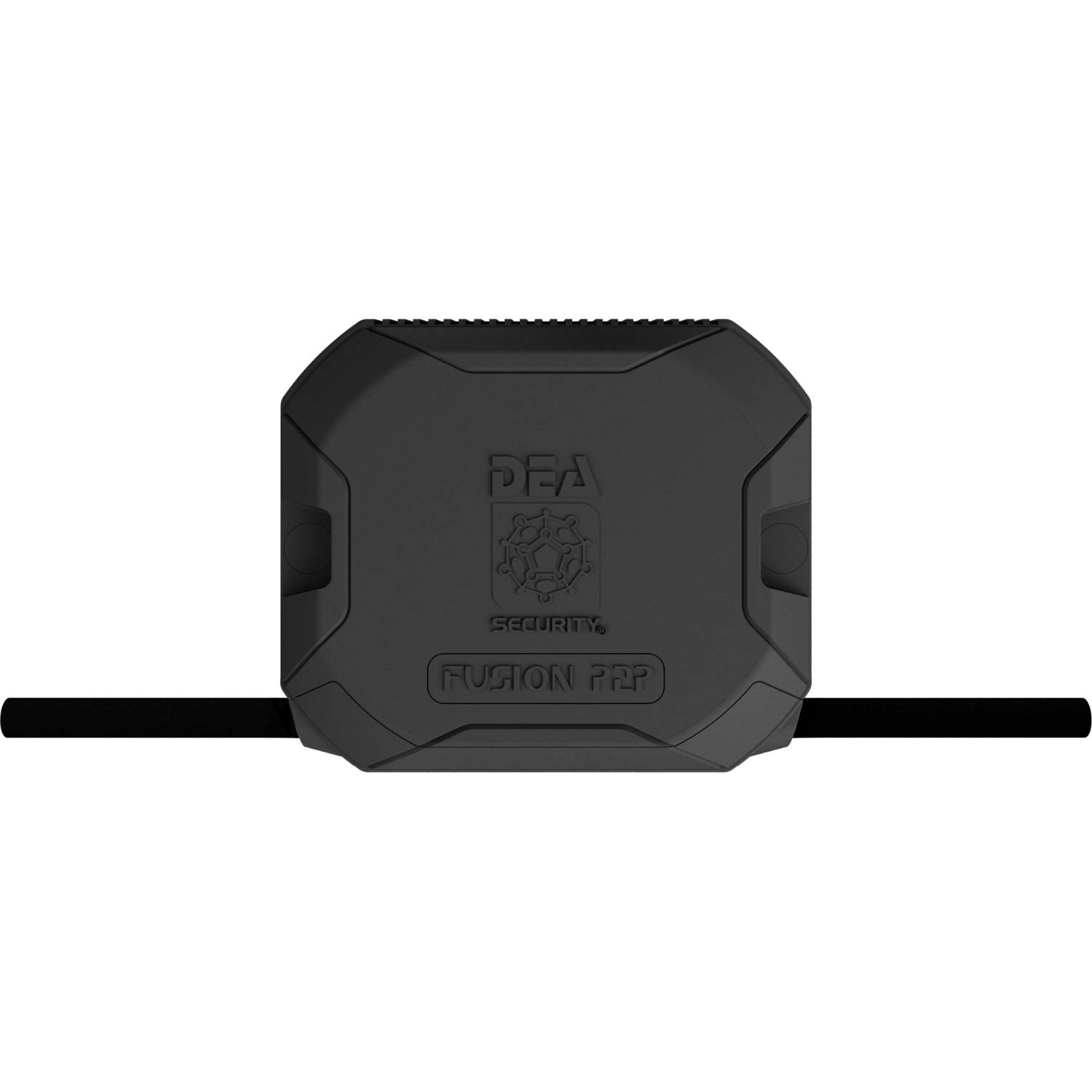

Detectors | Vibration sensor (SN-FSP2P).Vibration sensor, armoured cable (SN-FSP2P-A)Manufacturer guidanceDual-tech sensor with embedded electronics, prewired in an un-connectorized sensor-string. It can be supplied singularly or prewired with other sensors for customized sensor-strings or for the use as spare part. |
Cable type | Connection cable (CB-FSP2P).Armoured connection cable (CB-FSP2P-A).Guidance for specification option: Protected by a robust, rodent-proof galvanized iron braid. Manufacturer guidanceour-wire cable plus shield to be used for the connection of the CU-FSP2P control unit to an un-connectorized sensor-string or to the CBINL-FSP2P initial string connectorized cable. It can be also used to execute repairs along the string or to bypass potential discontinuities along the fence. |
Containment | Polyester cabinet.Guidance for specification option: Housing for electronic controller board. |
Power supply | Mains power. |
Operating voltage | 230 V a.c. |
Ingress protection (IP) rating | IP68. |
Sustainability data
Material | Steel Polyester |
Literature
FUSION P2P – Product Data Sheet
