Futural - A1 Flat Sheet Cladding System (Through Fix / Rivet Fix) - Rainscreen Cladding System
Verified by manufacturer today
UKAS
Certificate type
EN 13501-1 (Efectis)
Certificate type
CWCT Certificate
Certificate type
A1 non-combustible flat sheet cladding system (through fix/ rivet fix); PVDF pre-coated solid aluminium panel; CWCT Standards tested; 30-year warranty; 100% compliance with Building Regulations.
Application
Drained and back-ventilated rainscreen cladding systems.
Description

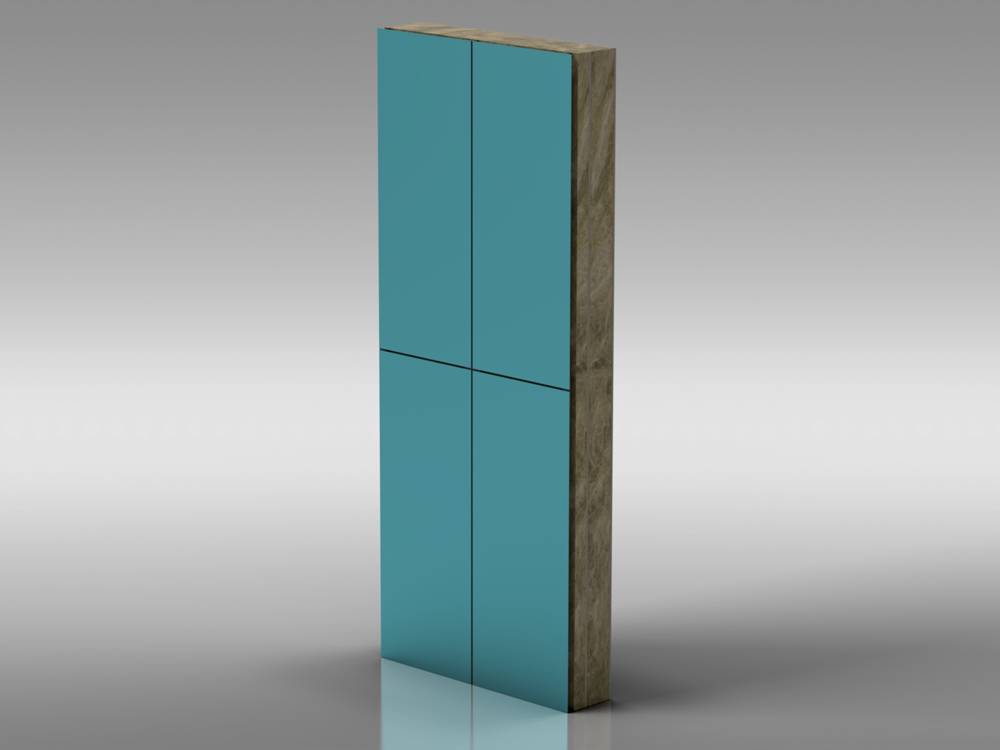

Futural flat sheet system is an uncomplicated, cost effective face fixed solution adopting the aesthetics of colour matched fixings. It features Futural Cladding panels, support rails and brackets.
It is a quick, cost-effective and CWCT tested cladding system solution which is available in both 2 and 3 mm aluminium and unlimited colour range.
Futural Cladding Panel
A1 non-combustible solid aluminium manufactured from marine grade aluminium and PVDF coatings; it is highly durable and impact resistant, yet available in unlimited colour range.
Compliant standards:
- A1 Non-combustible to BS EN 13501-1.
- CWCT Standards Tested.
- EN 1396 standards tested.
- AAMA 2605 standards tested.
Features and benefits:
- 4000 hours salt spray accelerated weathering tested
- 2000 hours UV-accelerated weathering tested
- 30+ year warranty.
- UKCA marked.
General information
Color | Beige Black Blue Bronze Brown |
Finish | PVdF Gloss Matt Textured Smooth |
Material | Aluminium |
Shape | Rectangle Other |
Length | 2500 mm 3200 mm 4000 mm Bespoke |
Width | 1250 mm 1500 mm Bespoke |
Height | 2 mm 3 mm Bespoke |
Warranty description | 30 year |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
System performance | Guidance for specification option: Insert requirements. |
Thermal insulation | Guidance for specification option: Mineral wool insulation, supplied by others; insert requirements. |
Breather membrane | |
Material | Guidance for specification option: Fire-rated breather membrane, supplied by others; insert requirements. Manufacturer guidanceInsert requirements or omit. |
Fasteners | Guidance for specification option: Supplied by others; insert requirements. |
Secondary support structure | Futural aluminium support structure.Guidance for specification option: Consult manufacturer for options and insert requirements. |
Cavity fire barriers | |
Horizontal | Guidance for specification option: Seek specialist information from specialist manufacturers and insert requirements. |
Vertical | Guidance for specification option: Seek specialist information from specialist manufacturers and insert requirements. |
Cladding panels | |
Material | 2 mm Futural aluminium flat sheet panels.3 mm Futural aluminium flat sheet panels.Manufacturer guidanceThrough-fix.
See also Panel size and Colour below. |
Panel joints | 10 mm standard open joints in both vertical and horizontal directions. |
Reveals | Guidance for specification option: Insert requirements or omit. |
System accessories | Guidance for specification option: All necessary accessories are available including, flashings, copings, bullnose and drainage channel. Insert requirements, or omit if none required. |
Panel size | Guidance for specification option: Insert requirements.
|
Colour | Guidance for specification option: Refer to Futural Colour Chart or contact manufacturer for full list of colour options, and insert requirements. Manufacturer guidancePanel colour. |
Surface finish | PVDF coating. |
Fire performance | Non-combustible. Guidance for specification option: All system components are A1/ A2 non-combustible. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 8.6 kg CO₂ eq/unit Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99.5 % |
Third party certifications

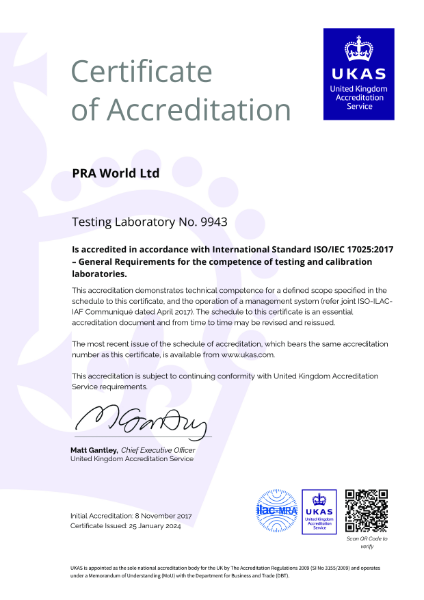

UKAS
Futural - 2000 Hours UV Acceleration Test Report

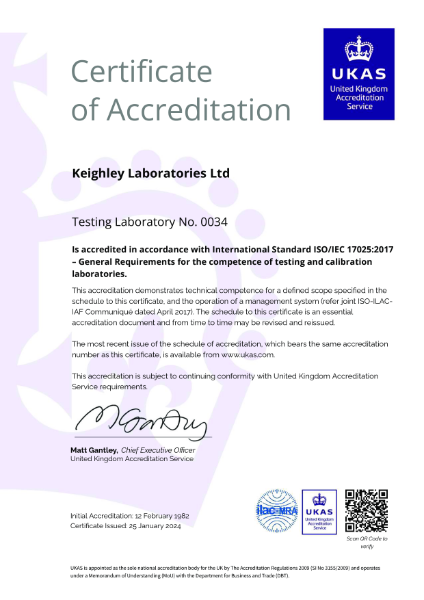

UKAS
Futural - 4000 Hours Humidity Resistance Report
UKAS
Futural - 4000 Hours Salt Sprat Test Report

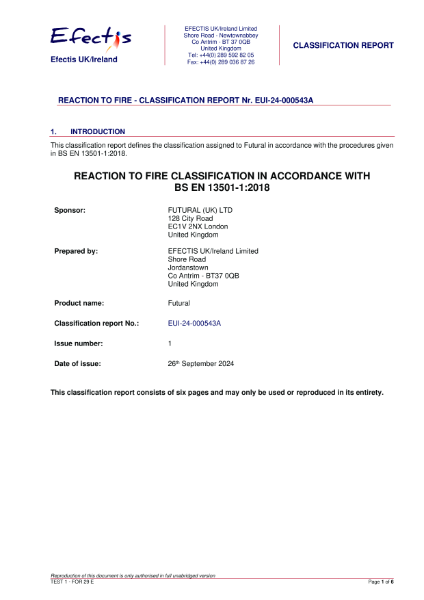

EN 13501-1 (Efectis)
Futural - A1 Report
CWCT Certificate
Futural - CWCT Report
Literature
Futural - Cleaning & Maintenance Guides

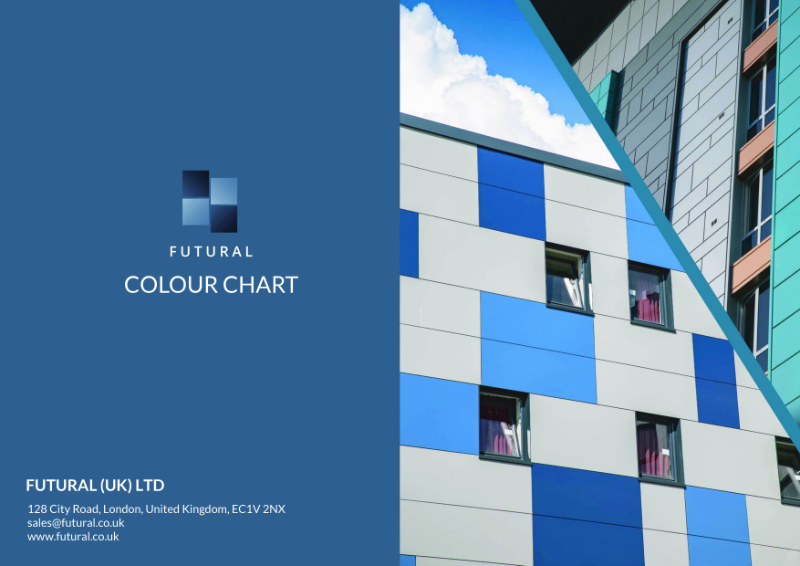

Futural - Colour Chart

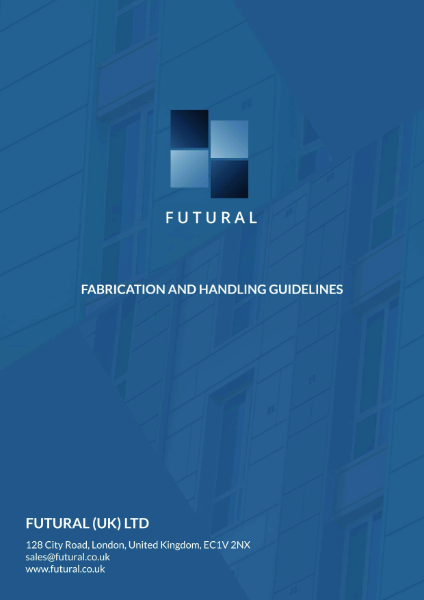

Futural - Fabrication & Handling Guides

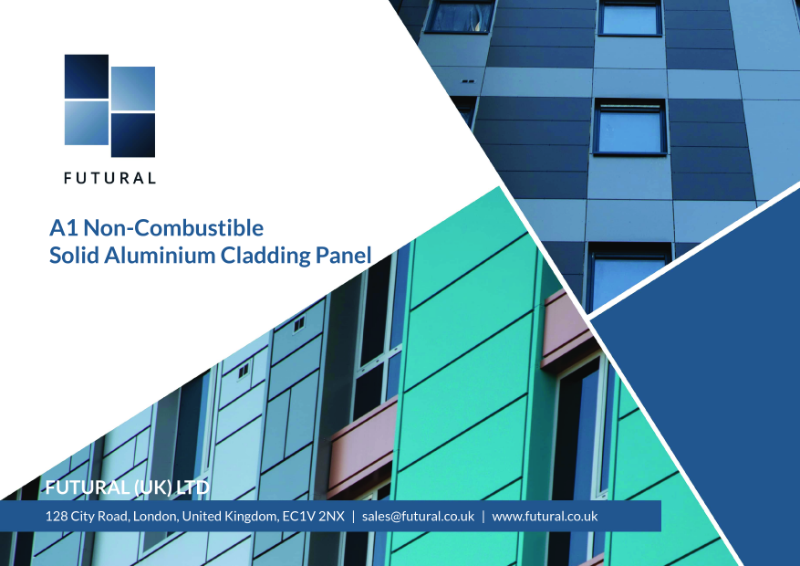

Futural - Product Brochure
Futural - Technical Data Sheet
Case studies

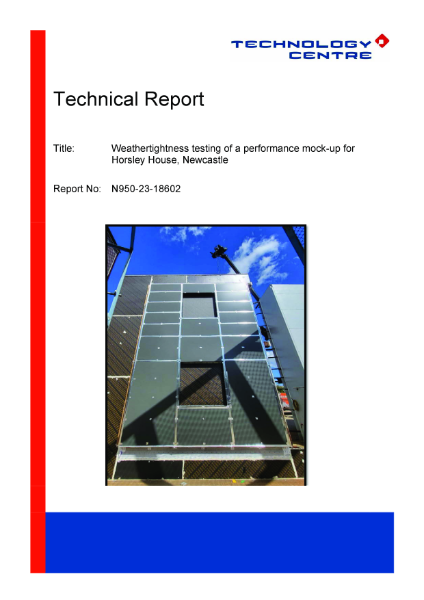

Horsley House - Newcastle
