FXUA-A (Under Ceiling) - VRV Indoor Unit
Verified by manufacturer 3 months ago
FXUA100A
FXUA100A

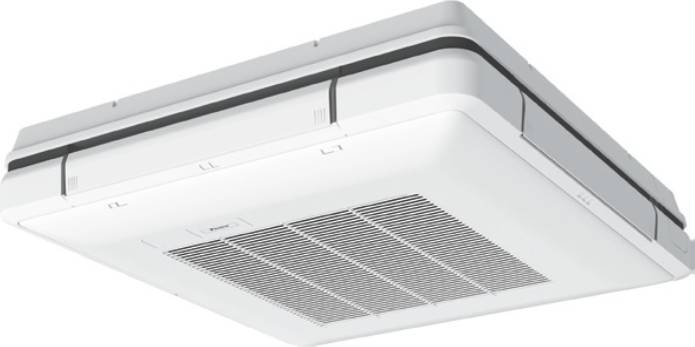

Ceiling suspended, four-way blow VRV indoor unit.
Application
- For commercial spaces with narrow or solid ceilings.
- Can be installed in both new and existing buildings.
Description
Ceiling suspended, four-way blow VRV indoor unit for commercial spaces with solid ceilings.
Designed to fit rooms of any size and shape, Daikin indoor units are also user-friendly, reliable, easy to control and quiet in operation. All indoor units comply with the Ecodesign legislation by adopting DC fans in all indoor units, improving their energy efficiency.
Features and benefits:
- Separate BEVQ box is no longer needed: the expansion valve is integrated in the indoor unit.
- Low energy consumption thanks to DC fan motor and drain pump.
- The unit blends easily with any interior, as the flaps close entirely when not in operation.
- Improved comfort thanks to automatic air flow adjustment to required load.
- Same outlook for all models (unified dimensions).
- Air flow distribution for ceiling heights up to 3.5 m without capacity loss.
- Standard drain pump with 500 mm lift.
- Air can be discharged in five different angles between 0 and 60°.
- Individual flap control: one flap can be easily closed via the wired remote control (BRC1E52) in case you would refurbish or rearrange your interior.
General information
Color | White |
Shape | Square |
Length | 950 mm |
Width | 950 mm |
Height | 198 mm |
Uniclass |
Specification data - Variable refrigerant flow units
Arrangement | Ceiling suspended. |
Output cooling | 11.2 kW. |
Output heating | 12.5 kW. |
Accessories | Not required.BRC1H52W, Wired touch screen remote controller, White.BRC1H52S, Wired touch screen remote controller, Silver.BRC1H5K, Wired touch screen remote controller, Black.UK.BRC1H/BRA/POL Metal clad Madoka remote controller - Polished Brass.UK.BRC1H/CHR/POL Metal clad Madoka remote controller - Polished Chrome.UK.BRC1H/CHR/BRU Metal clad Madoka remote controller - Brushed Chrome.BRC1E53A Wired remote controller with full text menu, energy features and 7 Day Time Clock.BRC7F530W Wireless remote controller (Heat Pump) for White Ceiling Decoration Panel.BRC7F530S Wireless remote controller (Heat Pump) for Silver Ceiling Decoration Panel.UK.KRCS01/BUTTON Discreet button type room mounted temperature sensor.BRP069C51 WiFi adapter for VRV 5 Indoor units. |
Air flow | 0.425 m³/sec (nominal). |
Power supply | Single phase, 50 Hz, 230 V. |
Overall sound power level | 65 dBA (cooling). |
Sustainability data
Recyclability | 70% |
Literature

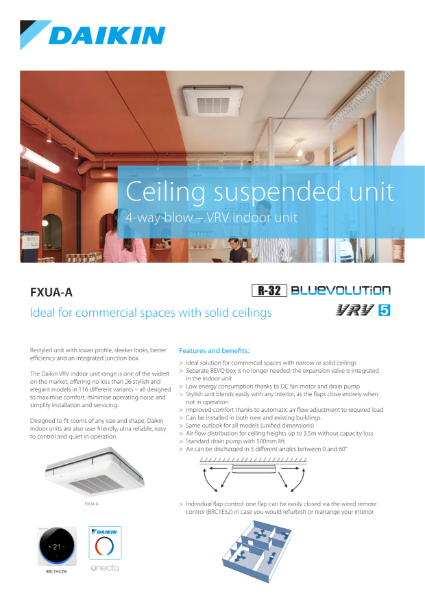

FXUA-A (Under Ceiling) Data Sheet
