G-Rail 6700 Skyline

Verified by manufacturer 4 months ago

Goelst UK Ltd

A powerful electrically operated roof blind system designed for skylights and horizontally glazed openings.

Jump to:
+44 (0)1423 873002 Website

Application

Designed for skylights and horizontally glazed openings.

Description

A powerful electrically operated roof blind system designed for skylights and horizontally glazed openings.


Features and benefits:

  • Silent operation.
  • System suitable for a variety of fabric types and applications.
  • Powerful motor with low system resistance.
  • Delivered pre-wired for simple 24 Volt installation.
  • Easy control and setting of the system using infrared remote control, switches or RF (radio frequency) from the G-Rail assortment.
  • In-built repeat timer function.
  • Up to five intermediate positions programmable.
  • Colour co-ordinated components (aluminium components are generally powder coated, finished in White RAL 9010).
  • Standard travel speed set at 15 cm/second.
  • Variable speed motor facility, launching/ docking speeds and distances pre-programmed by Goelst or approved distributor.
  • Standard IR control, optional momentary switch (code 6048-1001). RF (radio frequency) also available on request.
  • Integrated G-Rail ‘CAN-BUS’ system, allows group/ individual control of G-Rail electric curtain tracks.
  • Compatible with most existing BUS systems.
  • Maximum system width 4 metres.

General information

Color

White

Black

Silver

Finish

Powder-coated

Material

Aluminium

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_30_59_07_66 Pleated blindsPrimary

CAWS

N10/240 Blinds

Specification data - Pleated blinds

Blinds

-

Colour

Natural.

Guidance for specification option:

7492-08 only.

Natural metallic.

Guidance for specification option:

4100 and 6200 only.

White.

Guidance for specification option:

4100, 6200 and 6701 only.

Accessories

Not required.

2254 button clip.

6052 internal connecting bridge.

6055-1000 ceiling fixing plate.

6055-2000-35 profile insert for recessed fixing.

Guidance for specification option:

35 mm screw.

6055-2000-45 profile insert for recessed fixing.

Guidance for specification option:

45 mm screw.

6220 drive belt.

6710 glider.

Guidance for specification option:

White.

7450 support for 7400 profile.

8032 ballchain.

Guidance for specification option:

White, for creating folds.

Type

6700-00.

Guidance for specification option:

Basic set for systems with two motor units, with infra-red control.

6700-10.

Guidance for specification option:

With two motor units, and switch 6048-1001-03.

6700-20.

Guidance for specification option:

With two motor units, no controls.

Manufacturer guidance

Motor set type.

Control

Home Automation.

Infra-red.

Radio frequency.

Switch.

Manufacturer guidance

Motor set control.

Type

4100.

Guidance for specification option:

15 x 34 mm.

6200.

Guidance for specification option:

31 x 22 mm.

7492-08.

Guidance for specification option:

8 mm diameter.

6701.

Guidance for specification option:

70 x 52 mm triangular.

Manufacturer guidance

Profile type.

Type

4153.

Guidance for specification option:

For 4100 profile.

6753.

Guidance for specification option:

For 6701 profile.

Manufacturer guidance

End cap type.

Colour

Grey.

Guidance for specification option:

4153 only.

White.

Guidance for specification option:

All.

Manufacturer guidance

End cap colour.

Type

2254 button clip.

7400 ZV profile with Velcro.

7450 support for 7400-ZV.

7453 endcap for 7400-ZV.

Manufacturer guidance

Curtain fixing type.

Colour

Grey.

Guidance for specification option:

7453 only.

Natural.

Guidance for specification option:

7499-ZV only.

White.

Guidance for specification option:

All.

Brown.

Manufacturer guidance

Curtain fixing colour.

Fixing

6050 ceiling fixing clamp.

Guidance for specification option:

No coloured finish.

6051 wall support.

Colour

Black.

Brown.

Grey.

White.

Profile colour

Natural.

Guidance for specification option:

7492-08 only.

Natural metallic.

Guidance for specification option:

4100 and 6200 only.

White.

Guidance for specification option:

4100, 6200 and 6701 only.

Manufacturer guidance

Profile colour.

Load

Guidance for specification option:

Load cover weight (including profiles) per system (maximum): 100 kg.

Load per 6710 glider (maximum): 3 kg.

Sustainability data

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %

Guidance for specification option:

Aluminium rail: composed of 75% recycled aluminium.

Literature

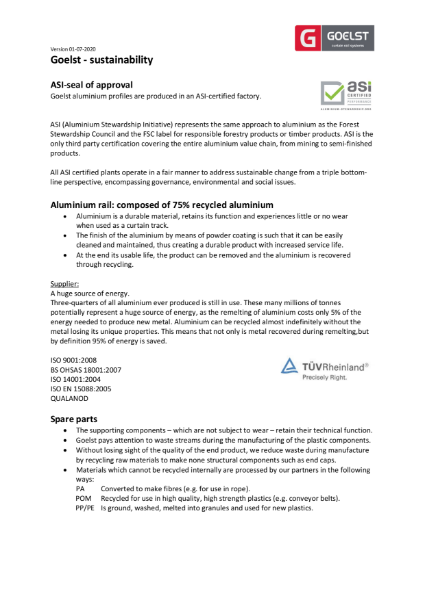

Sustainability Document

Sustainability Document
