Application

Suitable as vehicle and pedestrian barrier.

Description

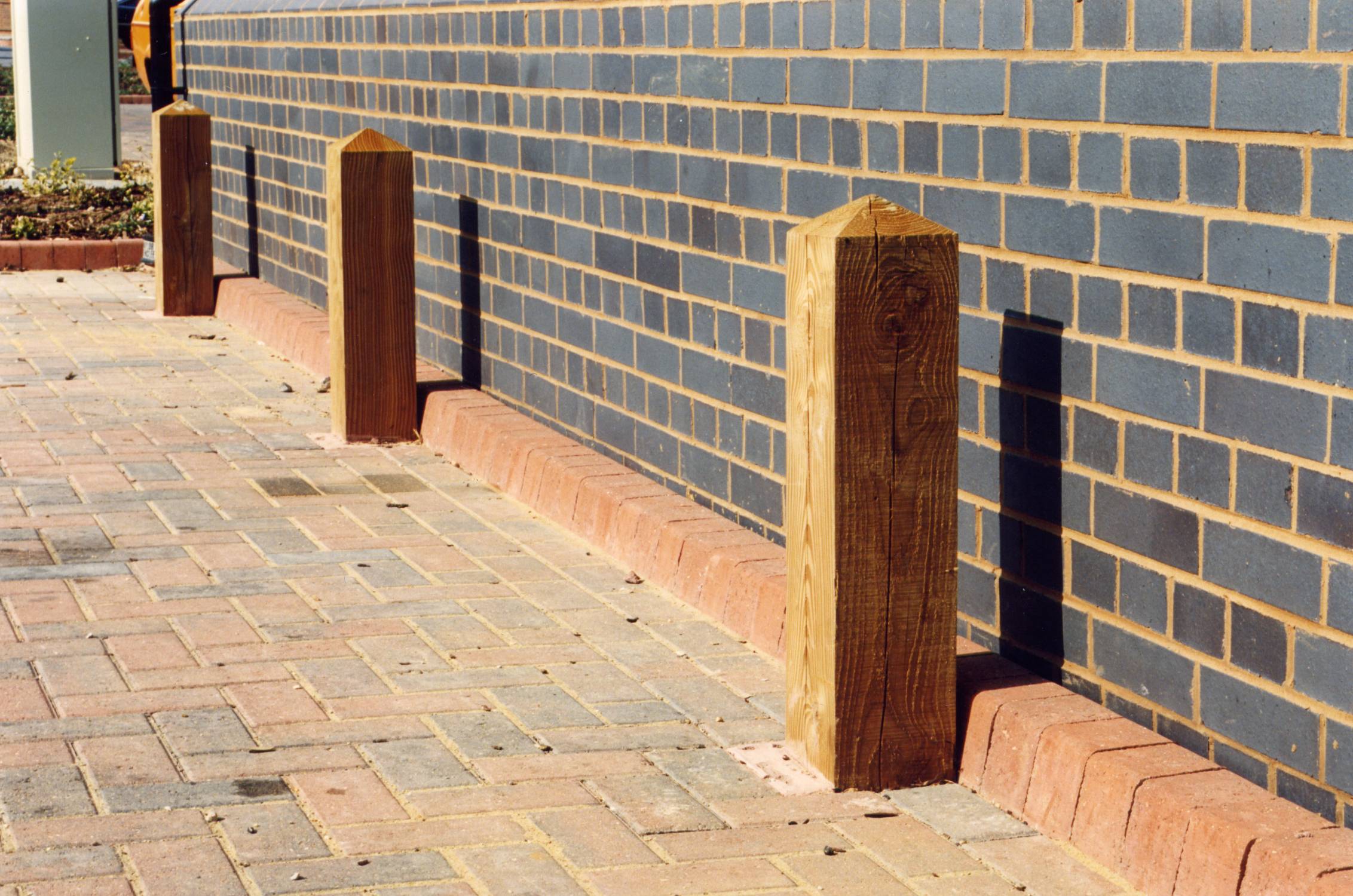

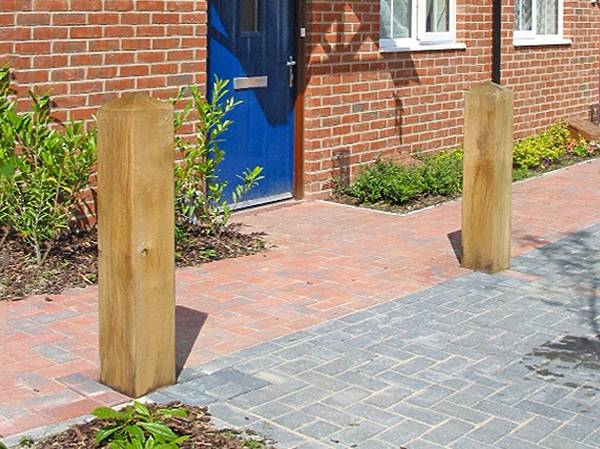

Square bollards, available in a choice of Green Oak or pressure-treated Spruce/ Whitewood, in a planed finish. The four-way weathered top and chamfered edges differentiate Garrick bollards from the Common range.


Features and benefits:

  • Available in plain form, with grooves and the option of reflective tape, and can be machined to accept steel rails or fitted with eyebolts for a chainlink connection.
  • Also available in Opepe hardwood as the Epping Timber Bollard (specified separately).

General information

Color

Brown

Finish

Smooth

Guidance for specification option:

Planed finish.

Material

Timber

Shape

Square

Warranty description

One year

Uniclass

Pr_20_76_08_88 Timber bollardsPrimary

CAWS

Q50/190 Bollards

Q50/30 Street furniture

Product range

Bollards

Specification data - Timber bollards

Timber

-

Species

Green Oak.

Pressure-treated Spruce/ Whitewood.

Guidance for specification option:

Softwood, available in square sections of 125 and 150 mm only.

Manufacturer guidance

  • Note that softwood type is variable due to fluctuating availability of raw materials.
  • Consult manufacturer regarding current stock material.

Dimensions

-

Size and profile

125 mm square.

Height

500 mm.

Length below ground

250 mm.

Top profile

Pyramid.

Base

Flat.

Finishes

-

Worked finish

Smooth planed.

Accessories

Not required.

CHNS.

Guidance for specification option:

Steel spiked chain link, galvanized.

CHNP.

Guidance for specification option:

Steel plain chain link, galvanized.

EBAB.

Guidance for specification option:

Steel M10 eye bolt, bright zinc plated.

SLNK.

Guidance for specification option:

Steel split link, galvanized.

TAPE C.

Guidance for specification option:

Red/ white chevron reflective tape.

TAPE R.

Guidance for specification option:

Red reflective tape.

TAPE W.

Guidance for specification option:

White reflective tape.

TAPE Y.

Guidance for specification option:

Yellow reflective tape.

Size

33 mm diameter.

42 mm diameter.

48 mm diameter.

Manufacturer guidance

  • Most bollards are available with pre-drilled holes to accept carbon steel rails.
  • State size and number of holes required, height below top of bollard to the centre of the hole and whether the post is an end, intermediate, corner, three or four way junction, when specifying.

Form

Without groove.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100
