Gas Two Tier Cycle Rack

Name: Gas Two Tier Cycle Rack
Brand: The Bike Storage Company
SKU: KhgFFjpSCokmt7QErgpGD

Verified by manufacturer 23 days ago

The Bike Storage Company

Third party certifications:

Acclaim Accreditation
Certificate type
Constructionline
Certificate type
Constructionline Gold
Certificate type
Certificate of Compliance
Certificate type

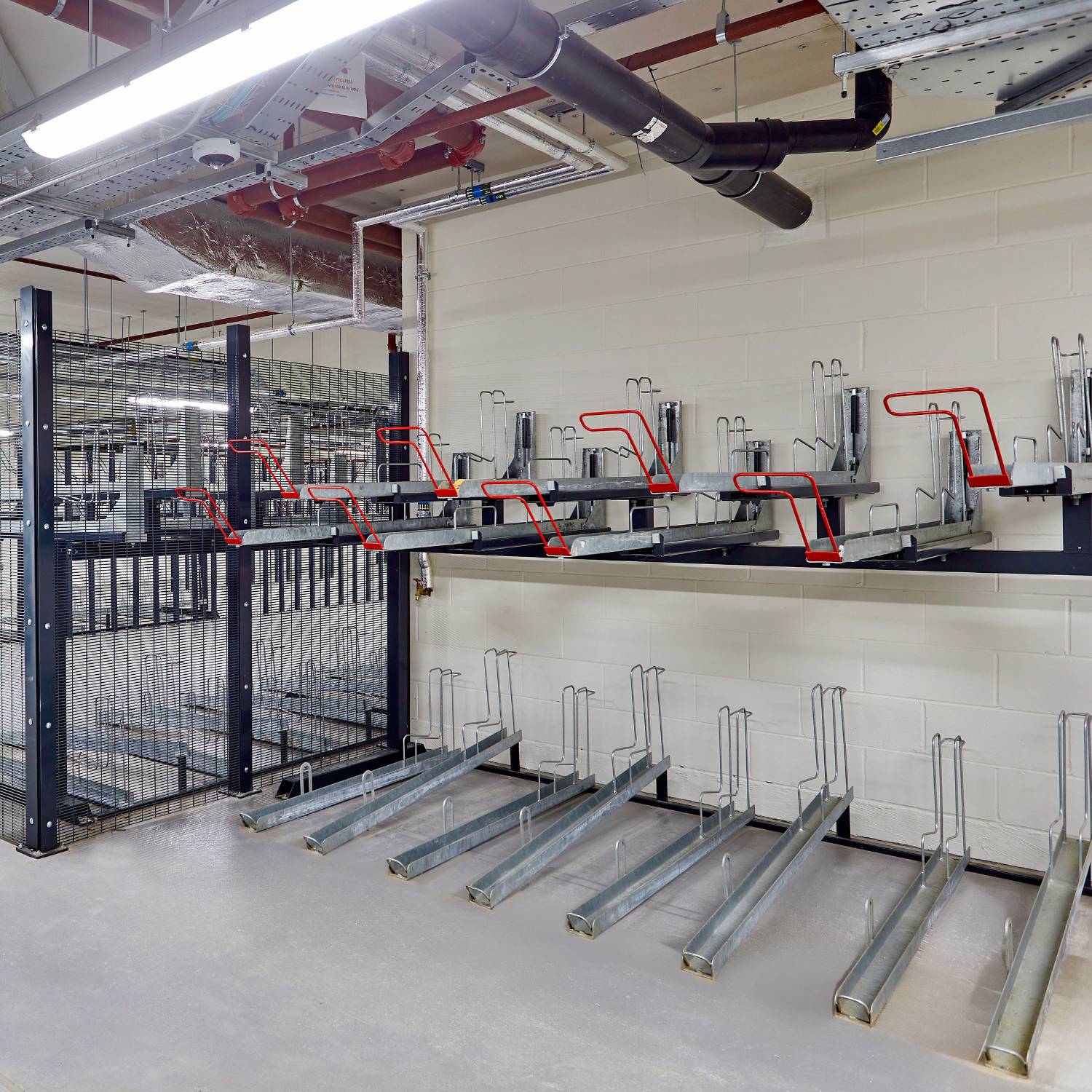

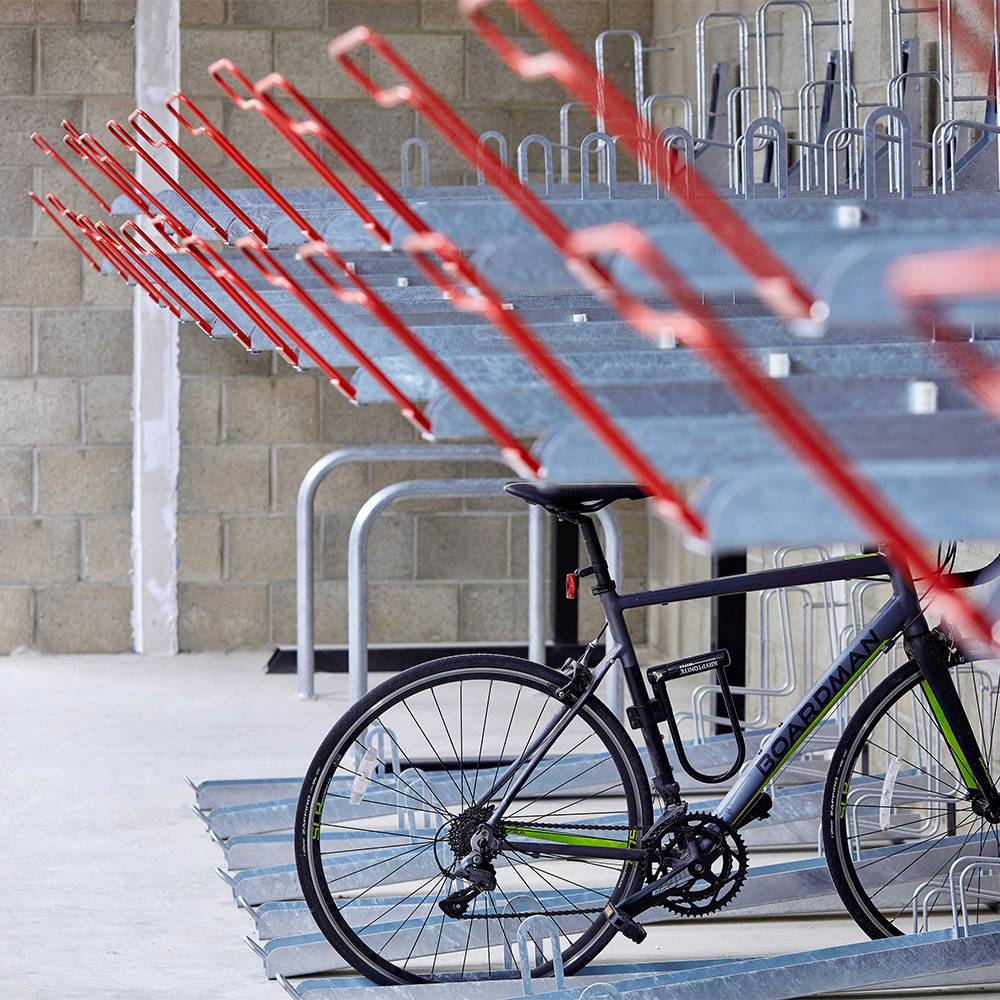

Gas assisted two-tier bike racks for high density bike storage.

Jump to:

BOS

+44 (0)800 2461723 Website

Application

For any area requiring high-density bike storage with gas assistance on the upper channels, reducing lifting load on the user.

Description

The Gas Two Tier Cycle Rack provides high-density bicycle parking. Each upper-level rack has a tamper-proof gas strut integrated at the back; this assistance eliminates all strain from the bike loading process and has been rated up to 30 kg and tested over 30 000 times. The bike’s wheels and frame can be secured to the locking point, ensuring a high-security cycle rack. Supports any bike with a maximum tyre width of 64 mm.

Optional extras include EasyGrip red handle, powder coating and integrated back-to-back channel arrangement.

Features and benefits:

UK manufactured.
Tested to over 30 000 users.
Gas-assisted lifted mechanism.
Minimum height required is 2500 mm.
Single or back-to-back versions are available.
Hot dipped galvanized to BS EN ISO 1461:2011 - powder coating available upon request.
Full site visit and layout design provided free of charge.
Code for Sustainable Homes compliant and BREEAM compliant.
Includes high security locking hoop; allows for both the wheels and the frame to be locked to the rack.
Manufactured against your dimensions and room layout at no extra cost.
375 mm spacing between racks and a staggered height design allows for space utilisation and ease of access; can be increased if required.
Full installation service available in UK and Ireland.
10 year warranty.

General information

Color	Grey Other Guidance for specification option: Any RAL colour.
Finish	Galvanized Powder-coated
Material	Steel
Shape	Other
Length	Bespoke
Width	2025 mm
Height	1995 mm
Warranty description	Ten year

Uniclass	Pr_40_30_21_12 Carbon steel cycle standsPrimary
CAWS	Q50/32 Cycle stands Q50/210 Cycle stands

Specification data - Carbon steel cycle stands

Stand type	Cycle.
Number of stands	One. Guidance for specification option: Two bike. Two. Guidance for specification option: Four bike. Three. Guidance for specification option: Six bike. Four. Guidance for specification option: Eight bike. Five. Guidance for specification option: Ten bike. Six. Seven. Guidance for specification option: 14 bike. Eight. Guidance for specification option: 16 bike. Nine. Guidance for specification option: 18 bike. Ten. Guidance for specification option: 20 bike.
Base	Fixed through 80 mm SHS leg.
Finish as delivered	Galvanized to BS EN ISO 1461. Powder-coated. Guidance for specification option: Excluding inner channel.
Colours	- Manufacturer guidance Framework powder coating can be provided to any colour. Insert requirements.

Integral accessories	Gas assisted upper level.
Options	None. EasyGrip red handle. Integrated back-to-back channel arrangement.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Steel
Recyclability	Product can be recycled at any licensed recycling facility.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
Expected Life	15 year
