Gatic LFA Assist Lift Covers

Name: Gatic LFA Assist Lift Covers
Brand: Alumasc Water Management Solutions
SKU: ivHKnjAjQKwYQcaCy6PtRy

Verified by manufacturer 19 days ago

Gatic LFA 900

Third party certifications:

Heavy Duty Lift Assist Lift Covers for rapid access in slow moving traffic locations.

Jump to:

Application

Suitable for ultra-heavy duty use in demanding areas subject to slow moving traffic such as:

Sealed assist lift options are available. Consult manufacturer for information.

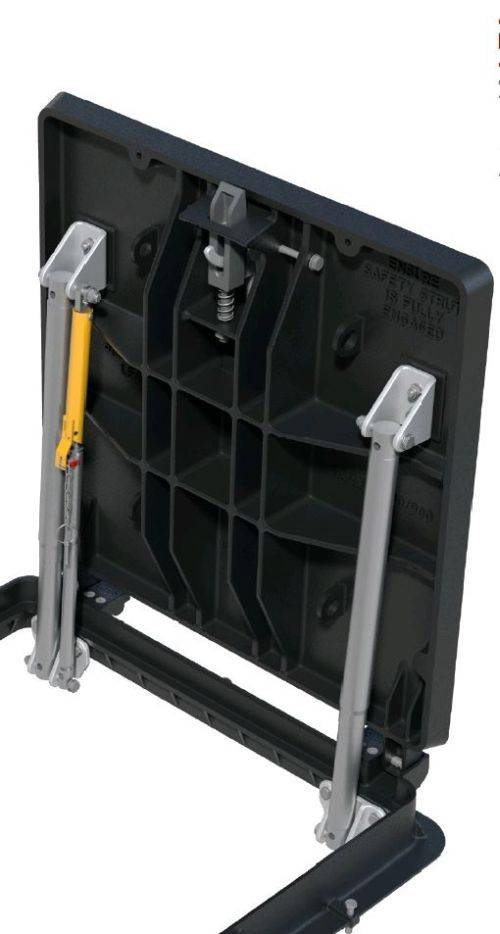

Heavy duty lift assist lift covers for rapid access.

Features and benefits:

Automatic engaging mechanism to prevent accidental closure.
Slam latch included.
Locking feature with a single Allen key for opening.
Integrated lift handle.
Provides safe lifting feature as covers have been designed to be lifted by a single user.
Approximate operating weight is 25 kg.
M-Struts® provide a maintenance free alternative to conventional gas struts as they contain no internal gases to leak or seals that can fail in extreme conditions.
Can withstand the test load, deflection and maximum deformation criteria specified in BS EN 124 F900.

Material	Iron Guidance for specification option: Ductile iron components to BS 1563:2011. Stainless steel Guidance for specification option: M-Struts® and other parts grade 1.4301 (304) stainless steel.

Uniclass	Pr_65_52_01_02 Access covers, gratings and framesPrimary
CAWS	P31/370 Access covers/ gratings R12/471 Access covers and frames R13/640 Cast iron access covers and seating

Product range	Gatic Drainage & Access Covers / Access Covers

Configuration	Single.
Load class (minimum)	F 900.

Total weight	25 kg (approximate operating weight).
Dimensions	900 x 900 mm.

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Iron Guidance for specification option: Ductile iron components to BS 1563:2011. Stainless steel Guidance for specification option: M-Struts® and other parts grade 1.4301 (304) stainless steel.
