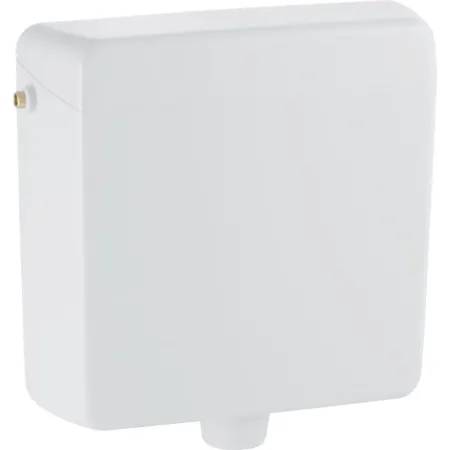

Geberit AP123 exposed cistern, single flush, for remote flush actuation
Verified by manufacturer 1 day ago
Exposed cistern, single flush, for remote flush actuation.
Application
- For high-level installation.
- For flush actuations with remote flush actuation.
Description
Geberit AP123 exposed cistern, single flush, for remote flush actuation.
Features and benefits:
- Low-noise.
- Single flush.
- Can be refitted for mechanical flush actuation.
- Can be converted to pneumatic single flush or dual flush actuation.
- Can be refitted for electronic flush actuation.
- Insulated against condensation.
- Flush pipe connection with compression joint.
- Cistern lid without actuator button.
- Water supply connection on the left/right.
- Water supply connection 3/8”.
Includes:
- Damming device.
- Fastening material.
General information
Color | White |
Material | Acrylonitrile butadiene styrene (ABS) |
Shape | Rectangle |
Length | 125 mm |
Width | 410 mm |
Height | 380 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
SKU Code | 123.701.11.1 |
Specification data - WC cisterns
Classification data | |
Form | High-level, exposed. |
Operation | Remote flush actuation. |
Materials | |
Body | ABS. |
Finish and colour | White-alpine. |
Capacity | 9 L. Flush volume, adjustment range:6 / 9 L. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet. |
Outlet | Bottom outlet. |
Integral accessories | Water supply connection set. Flush bend 90°. Remote flush actuation. |
Sustainability data
Material | Acrylonitrile butadiene styrene (ABS) |
