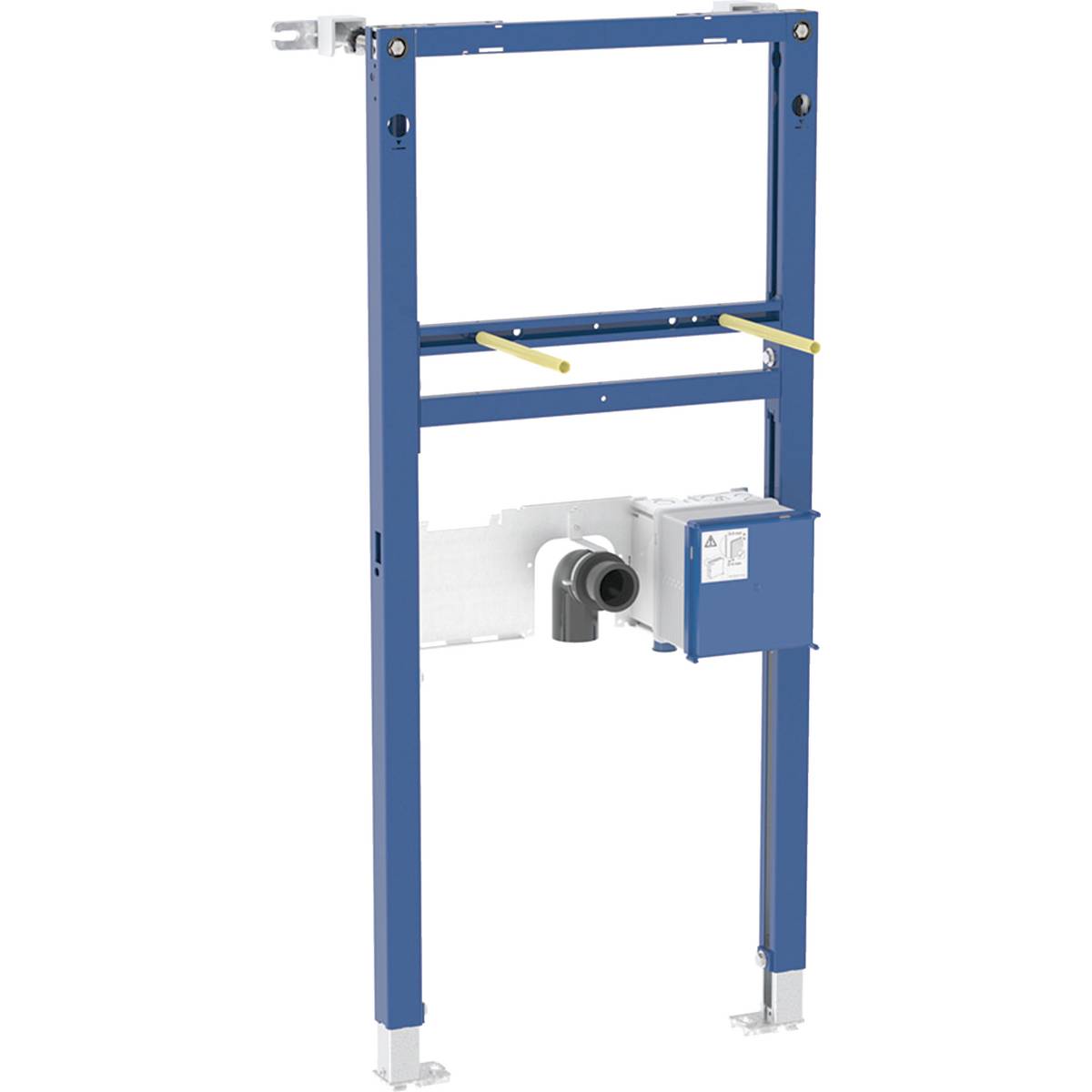

Geberit Duofix element for washbasin, 112 cm, electronic deck-mounted tap with concealed function box - Pre-Plumbed Installation Frame
Verified by manufacturer 1 day ago
Geberit Duofix element for washbasins.
Application
- For metal and wood frame walls.
- For Geberit Duofix system walls.
- For installation in part- or room-height prewalls.
- For installation in room-height partition walls.
- For floor constructions 0–25 cm.
- For installation of washbasins.
- For Piave and Brenta washbasin taps, deck-mounted, with concealed function box.
Description
Geberit Duofix element for washbasin, 130 cm, electronic wall-mounted tap with concealed function box: 50 x 130 x 7.2 cm,
Features and benefits:
- Statically self-supporting frame, protected against corrosion with powder coating.
- With pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studs.
- Alternative fastening point for wall anchors.
- Rotating foot plates, suitable for installation in U profiles UW 50 and UW 75.
- Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional components.
- Galvanized non-slip leg supports protected against corrosion.
- Fastening distance for washbasin 5–38 cm.
- Threaded rods adjustable in depth with 18 or 28 cm fastening distance.
- Water supply connection compatible with MasterFix and MeplaFix.
- Water supply connection on the bottom of concealed housing.
- Fastening for connection bend, height-adjustable and sound-absorbing.
- Concealed housing for Geberit washbasin tap, deck-mounted, for concealed function box, premounted.
- Shut-off unit integrated in the concealed housing.
- Terminal for electrical connection in concealed housing.
Supplied with two wall anchors, protection box with cover, for concealed housing and fastening material.
General information
Color | Blue |
Finish | Galvanized |
Material | Steel |
Shape | Rectangle |
Length | 75 mm |
Width | 500 mm |
Height | 1120 mm |
Uniclass | |
CAWS | N13/66 Pre-plumbed frame system N13/500 Pre-plumbed frame system |
SKU Code | 111.554.00.2 |
Specification data - Pre-plumbed installation frames
Classification data | |
Form | Support frames. |
Materials | Galvanized steel. |
Size | 75 x 500 x 1120 mm. |
Sustainability data
Material | Steel |
