Geberit Mapress Concealed Stop Valve With Cover Collar
Verified by manufacturer 21 hours ago

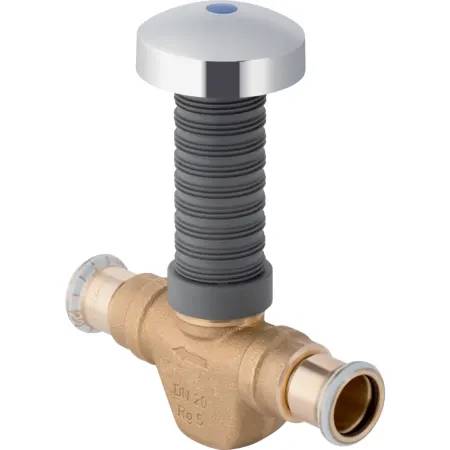

Geberit Mapress concealed stop valve with cover collar.
Application
- For cold and hot potable water.
- For cooling and heating water without antifreeze agent.
- For cooling and heating water with antifreeze agent.
Description
Geberit Mapress concealed stop valve with cover collar.
Features and benefits:
- Valve top fully exposed to flow.
- Maintenance-free spindle seal.
- Replaceable upper part.
- Protection box can be cut to length.
- Valve and upper part seals made of EPDM.
- Pressing indicator.
- Leaky if unpressed.
- Seal ring made of CIIR, black.
- Pressing socket with transparent protection plug.
- Operating temperature: 0–95°C.
- PN: 10 bar.
General information
Color | Other |
Material | Gunmetal |
Shape | Other |
Length | 140 mm 145 mm 180 mm |
Uniclass | |
CAWS | S90/675 Stop valves, underground S14/383 Stop valves and draw-off taps for above-ground use |
Specification data - Copper alloy service stop valves
Material | Gunmetal (CuSn5Zn5Pb2-C). |
Diameter | 94902 - DN12/ DNV15. 94903 - DN15/ DNV15. 94904 - DN20/ DNV20. 94905 - DN25/ DNV25. |
Sustainability data
Material | Gunmetal |
